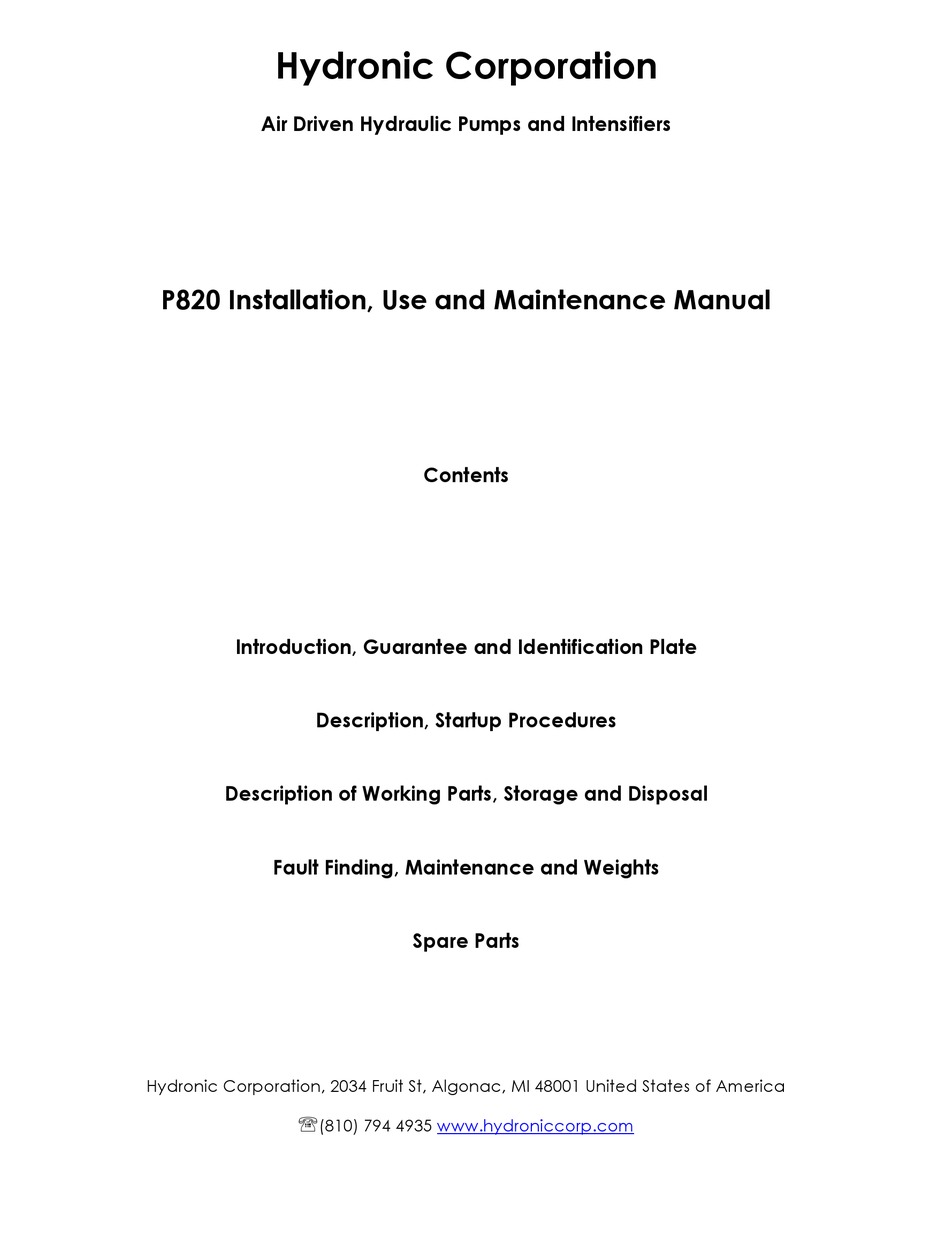

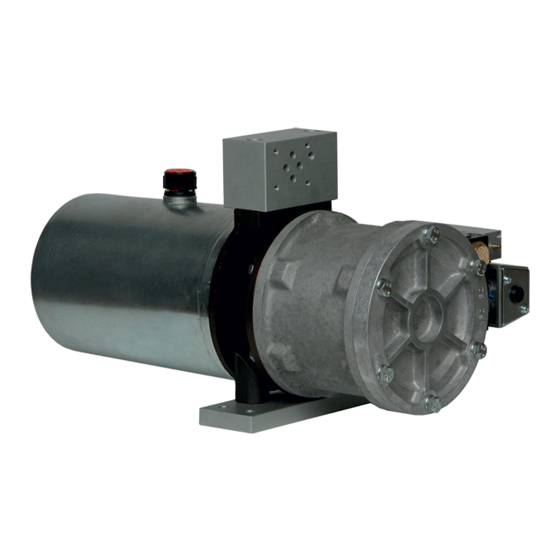

Hydronic Corporation
Air Driven Hydraulic Pumps and Intensifiers
P820 Installation, Use and Maintenance Manual
Contents
Introduction, Guarantee and Identification Plate
Description, Startup Procedures
Description of Working Parts, Storage and Disposal
Fault Finding, Maintenance and Weights
Spare Parts
Hydronic Corporation, 2034 Fruit St, Algonac, MI 48001 United States of America
℡
(810) 794 4935
www.hydroniccorp.com
Advertisement
Related Manuals for Hydronic P820
Summary of Contents for Hydronic P820
- Page 1 Contents Introduction, Guarantee and Identification Plate Description, Startup Procedures Description of Working Parts, Storage and Disposal Fault Finding, Maintenance and Weights Spare Parts Hydronic Corporation, 2034 Fruit St, Algonac, MI 48001 United States of America ℡ (810) 794 4935 www.hydroniccorp.com...
- Page 2 Guarantee Hydronic pumps are guaranteed both for the quality of materials used and for overall design. The warranty runs for six months of normal use at eight hours per day and five days per week. The warranty itself does not cover seals or defects arising out of operating with unsuitable fluids or at pressures above the specified maximum.
- Page 3 Hydronic Air Driven Pumps & Intensifiers 820 Installation, Use and Maintenance Booklet 1-4-2021 Identification Plate Pump model and intensification ratio Serial number pump Maximum air pressure Maximum working oil pressure allowed Year of construction 1,2,3,4,5 Page 3...
- Page 4 Hydronic Air Driven Pumps & Intensifiers 820 Installation, Use and Maintenance Booklet 1-4-2021 Installation Guide Pumps may be installed in a horizontal or vertical position for optimum functioning of suction and delivery valves. The round reservoir may be used horizontally and it is advised that the breather and sight glass be interchanged and/or the reservoir rotated to allow the breather to remain uppermost.
- Page 5 820 Installation, Use and Maintenance Booklet 1-4-2021 Application Hydronic air driven hydraulic pumps are designed for operating oil hydraulic circuits and to cover the widest range of requirements to the best advantage. The pump itself operates quite simply, using a known pressure intensification principle. A piston with a large surface area is actuated by compressed air.
- Page 6 Hydronic Air Driven Pumps & Intensifiers 820 Installation, Use and Maintenance Booklet 1-4-2021 Description of the standard pump components Air valve Oil outlet #8 SAE Oil return #8 SAE Oil filler plug Oil level sight glass Page 6...
- Page 7 P820 RATIO 1:30 P820 RATIO 1:40 For instance, when supplied with compressed air at 80 psi, the P820-5 will produce oil pressure of 80 x ratio, 400 psi. It should be remembered that actual efficiency produced by the pump is slightly less than given by the above theoretical calculation. This difference will not be noticed by a hydraulic gauge.
- Page 8 Hydronic Air Driven Pumps & Intensifiers 820 Installation, Use and Maintenance Booklet 1-4-2021 Fault Finding Chart Fault Cause Remedy 1] Pump does not 1.1] Low pressure in 1.1] Clear any blockage or cycle or runs slowly. compressed air line. restriction on the air line.
- Page 9 Make an initial check on the pump for damage in transit. In case of damage or if in doubt, do not use the pump and contact Hydronic Corporation or your distributor. The packaging [plastic bags, expanded polystyrene, nails, screws, wood, etc.] must not be left within reach of children since they are...
- Page 10 Hydronic Air Driven Pumps & Intensifiers 820 Installation, Use and Maintenance Booklet 1-4-2021 Original spare parts Parts orders must always be accompanied by the following information: A] The pump model B] The pump serial number C] The year of construction...
- Page 11 Hydronic Air Driven Pumps & Intensifiers 820 Installation, Use and Maintenance Booklet 1-4-2021 Pump Exploded View Page 11...
- Page 12 Hydronic Air Driven Pumps & Intensifiers 820 Installation, Use and Maintenance Booklet 1-4-2021 SEAL ITEM PART NUMBER CODE DESCRIPTION S820-XX-N-18 5.068.0045 PNEUMATIC PISTON P820 - ø 130 S820-XX-N-100 3.051.0077 O-RING 2-247/4462 S820-XX-N-16 3.051.0076 RING S820-XX-N-17 3.045.0204 SELF-LOCKING NUT S820-5/10-N-31 5.064.0028...
- Page 13 S820-20-N-23 3.051.0085 BODY SEAL P820-20 S820-30-N-23 3.051.0234 BODY SEAL P820-30 S820-40-N-23 3.051.0011 BODY SEAL P820-40 O-RING 2-333/6250 P820-5 - INCLUDED WITH 3.051.0089 S820-5-N-23 O-RING 2-328/6187 P820-10 - INCLUDED WITH 3.051.0087 S820-10-N-23 O-RING 2-217/4118 P820-20 - INCLUDED WITH 3.051.0014 S820-20-N-23 O-RING 2-214/4100 P820-30 - INCLUDED WITH 3.051.0057...
- Page 14 Hydronic Air Driven Pumps & Intensifiers 820 Installation, Use and Maintenance Booklet 1-4-2021 SEAL ITEM PART NUMBER CODE DESCRIPTION S820-XX-N-136 4.091.0028 BISTABLE MEMORY S901-XX-N-6103S 3.094.0061 SCREW M3x30 - UNI5931 S820-XX-N-138 3.070.0096 SILENCER 1/2'' S820-XX-N-139 3.070.0068 SILENCER 1/2'' S820-XX-N-140 3.070.0028 PLUG MALE 1/4'' A820-XX-N-50 5.090.0025...
