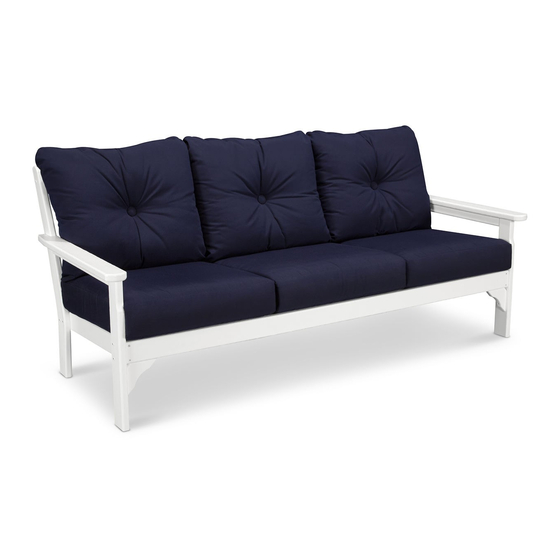

MODEL: GN69
_(2) ARM ASSEMBLY
_(1) SEAT CUSHION
_(2) BACK LEG
_(1) BACK CUSHION
_(1) SEAT ASSEMBLY
_(1) HARDWARE PACK
_(1) BACK ASSEMBLY _(2) GUSSETS
TOOLS NEEDED
4MM HEX KEY, ALLEN, T-HANDLE
(INCLUDED)
PHILLIPS SCREWDRIVER
(SCREW GUN RECOMMENDED)
QTY
DESCRIPTION
A - 1/4-20 X 1" WAFER SHCS
2
B - .273 X 1.75 SOCKET WAFER B
8
C - .273 X 3 SOCKET WAFER A
4
D - 8 X 2 PHIL FLAT SCREW
4
1
HDWPK-#8 SCREW PLUGS, 4X (EXTRAS)

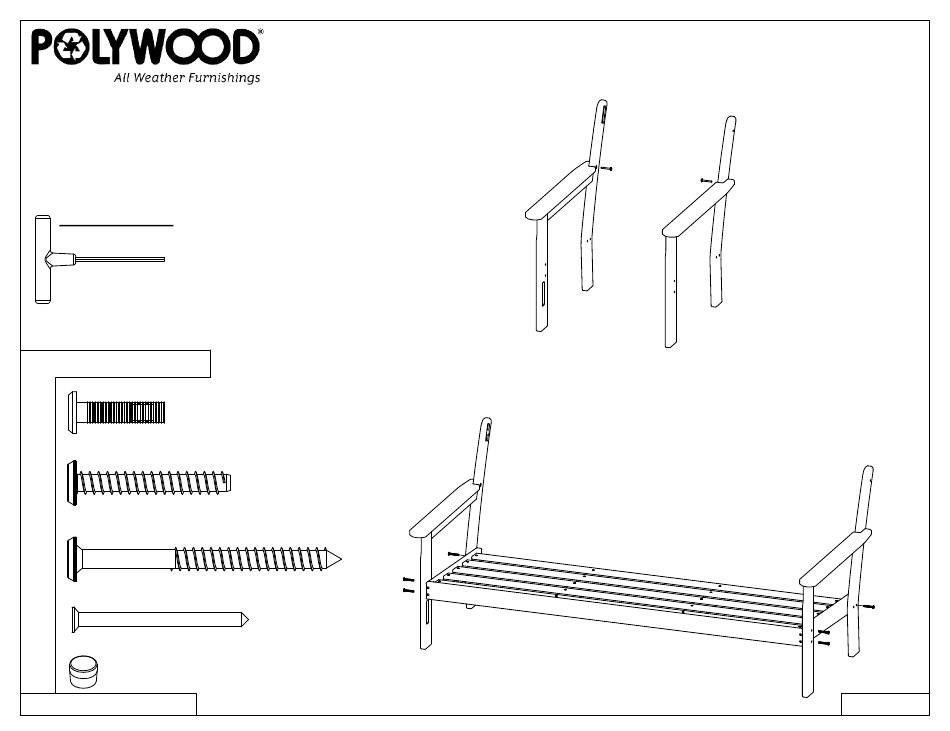

ASSEMBLY INSTRUCTIONS
STEP 1
ATTACH ARM TO BACK LEG
USING (2) 1-3/4" CHAIR SCREWS
STEP 2
ATTACH SEAT TO SIDE FRAMES
USING (6) 1-3/4" CHAIR SCREWS
B
B
B
1/20/2017
