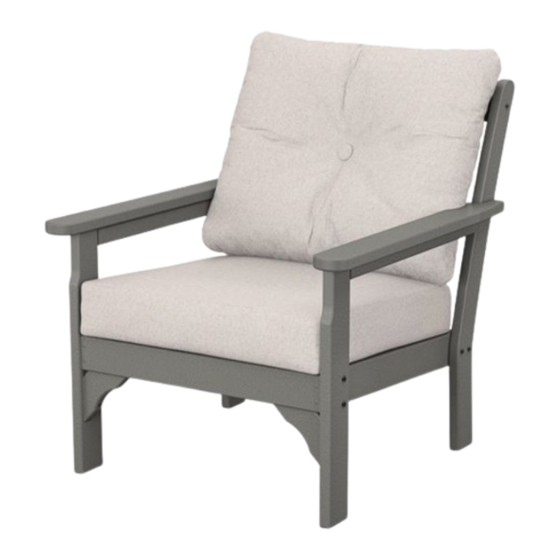

Polywood GN23 Quick Start Manual

MODEL: GN23
_(2) ARM ASSEMBLY
_(2) BACK LEG
_(1) SEAT ASSEMBLY
_(1) BACK ASSEMBLY
_(2) GUSSETS
_(1) SEAT CUSHION
_(1) BACK CUSHION
_(1) HARDWARE PACK

TOOLS NEEDED

4MM HEX KEY, ALLEN, T-HANDLE
(INCLUDED)
PHILLIPS SCREWDRIVER
(SCREW GUN RECOMMENDED)
QTY DESCRIPTION
A - .273 X 1.75 SOCKET WAFER B
10
B - .273 X 3 SOCKET WAFER A
2
C - 8 X 2 PHIL FLAT SCREW
4
HDWPK-#8 SCREW PLUGS, 4X (EXTRAS)
1

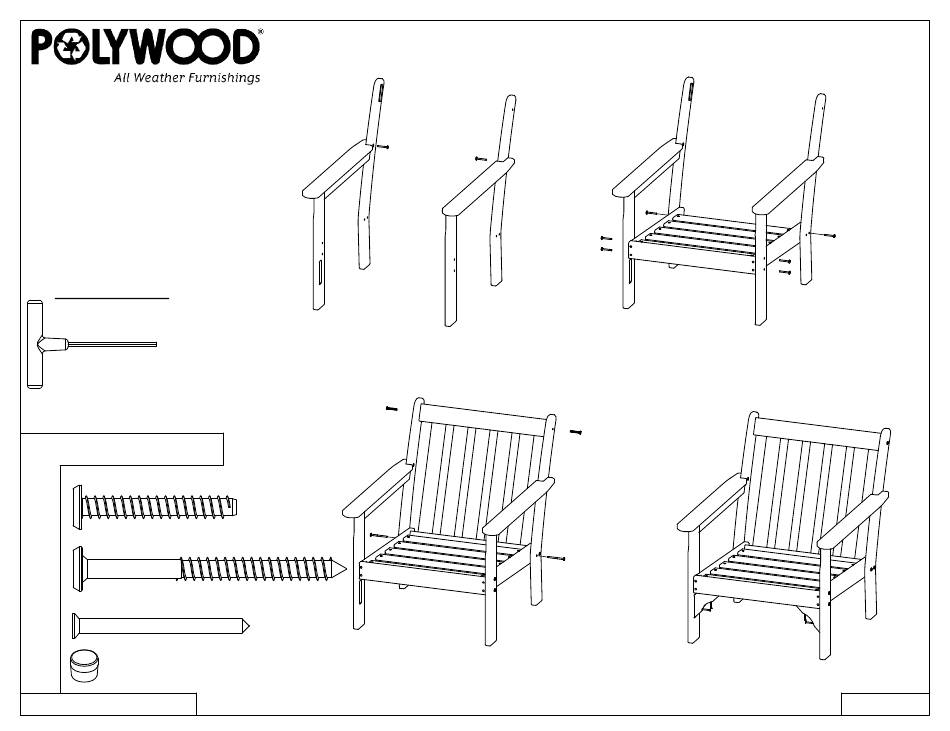

Assembly Instructions
STEP 1
ATTACH ARM TO BACK LEG
USING (2) 1-3/4" SCREWS
A
A
STEP 3
ATTACH BACK TO SIDE FRAMES AND SEAT
USING (2) 1-3/4" AND (2) 3" SCREWS
A
B
STEP 2
ATTACH SEAT TO SIDE FRAMES
USING (6) 1-3/4" SCREWS
A
STEP 4
ATTACH GUSSETS TO SEAT AND SIDE
FRAMES USING (4) 2" SCREWS
A
B
C
A
C
1/20/2017
