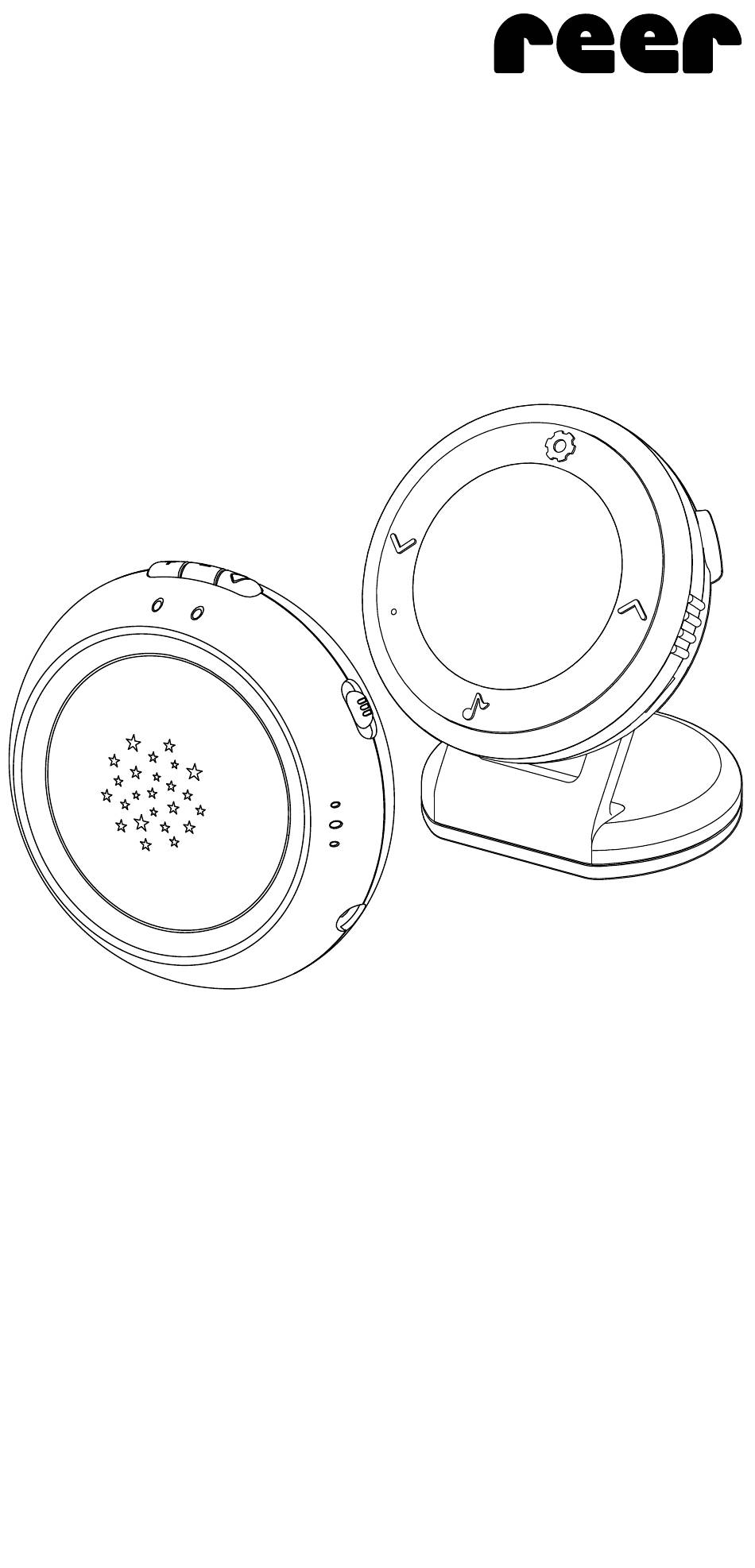

- Page 1 Instruction manual Projector baby monitor Item no: 50080...
-
Page 2: Table Of Contents
Table of Contents Scope of delivery General information Technical data and functions General safety instructions Safety instructions regarding installation Description of babyphone • Description of babyphone • Baby unit/transmitter • Menu and Symbols Putting into operation Functional options • Baby unit •... -
Page 3: Scope Of Delivery
Scope of delivery A: Baby unit/transmitter D: USB power supply B: Parent unit/receiver E: 2x USB cable C: Stand for parent unit F: Instruction manual... -
Page 4: General Information
We’re confident you’ll enjoy the quality of our product for many years to come Please take a few minutes to carefully read through the safety instructions Safe operation of the reer projector baby monitor can only be guaranteed if all guidelines listed here are followed Please keep the instruction manual... -
Page 5: General Safety Instructions

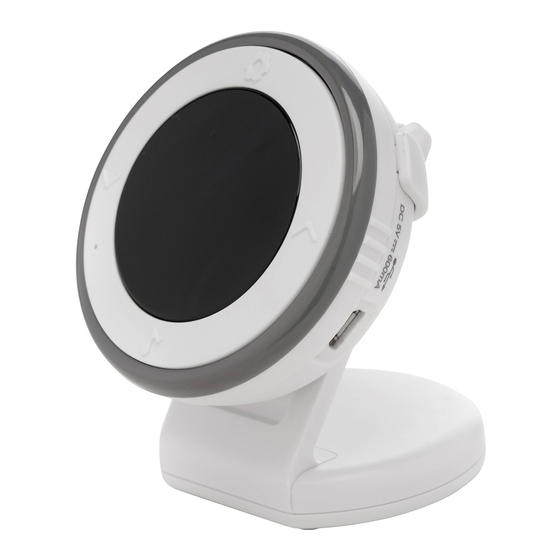

General safety instructions ! Check the unit for visible damage before each use If you detect any damage, do not use the unit ! Only use the supplied chargers and mains adapters ! Make sure that the operating voltage of the power outlet matches that of the mains adapter ! Check - especially when travelling abroad - that the local mains voltage matches the voltage specified on the units and/or mains adapters... - Page 6 Device description Parent unit / receiver Down navigation key Lullaby playback button Microphone Up navigation key Micro USB charging connector Settings button Speaker Intercom button On/off/vibrate rotary switch...
-
Page 7: Description Of Babyphone
Baby unit/transmitter 10 On/off switch 11 Microphone 12 Micro USB input for power supply unit 13 Speaker 14 “+” key louder 15 “-” key quieter 16 Indicator light/low battery indicator 17 Transmission indicator 18 Feed alarm button Menu and symbols A: Power indicator: green light –... -
Page 8: Putting Into Operation
B: Feed alarm active C: Room temperature at location of baby unit D: Temperature alarm activated E: Eco mode F: Sound level indicator G: Weak battery in baby unit H: Projection light on I: VOX projection light J: Loudspeaker muted K: Lullaby playing L: Baby unit out of range Start-up... -
Page 9: Functional Options
a) Battery operation:: Open the battery compartment after removing the locking screw Insert 3 AAA batteries, making sure the polarity is correct b) Mains operation: You can operate the baby unit via the mains adapter while batteries are inserted To do so, connect the baby unit to the power socket using the power adapter provided Place the baby unit on a stable table Switch it on by activating the power switch... -
Page 10: Coupling
You can also adjust the volume of the music or intercom function using the up and down keys (14+15) To do so, activate the corresponding function before setting the desired volume As long as playback/inter- com is/are deactivated, the two navigation buttons adjust microphone sensitivity only The projector can be controlled from the parent unit You can choose between continuous operation, power off or operation in VOX mode... -
Page 11: Parent Unit
Now press the feed alarm button (18) The baby unit’s transmission indicator is now constantly lit – the “p” symbol on the parental unit’s display will no longer flash if the pairing is successful Switch off both units Now switch the two units back on – and the baby monitor is ready for use If there is still no connection, repeat steps 1-6 Parent unit... - Page 12 d ) Lower temperature limit Using the arrow keys, you can set the lower limit between -9°C and +20°C If the temperature falls below this, an alarm sounds Feed alarm Under this menu item, you can set a timer alarm to remind you to e g regularly feed your child You can choose an interval of between 1 and 8 hours at half-hourly increments When a set alarm is triggered, an alarm sounds and 00 flashes on the display...
-
Page 13: Troubleshooting
10 You can also use the intercom function to speak to your child and calm them down Press and hold the intercom button (8) and speak into the micro- phone (3) To end the intercom, simply release the key (8) again It is also possible to use the intercom function while the baby unit is transmitting To check your child’s activity, briefly press the intercom button (8) The baby unit will then transmit for a period of 10 seconds even if your... -
Page 14: Warranty
Any information provided by reer should be correct and authoritative Nevertheless, reer does not accept liability for potential errors in this document and reserves the right to make... -
Page 15: Notes On Environmental Protection
Note on environmental protection At the end of its life, this product must not be disposed of as normal domestic waste, but should be recycled at a collection point for electrical appliances Please see the relevant symbol on the product, in the user manual and packaging Materials can be recycled as specified Do not put used batteries into household waste Instead they should be disposed of as hazardous waste or with a battery collection station provided by the dealer An important... - Page 16 RO, SE, SK, TR reer GmbH hereby declares that the projector baby monitor radio system (item no : 50080) complies with Directive 2014/53/EU The full text of the EU Declaration of Conformity can be found at the following website: http://www reer de...
