Matco Tools CSHDP Owner's Manual

CSHDP_manual_011_10870.00 __ 04-08-2021
Save This Manual For Future Reference

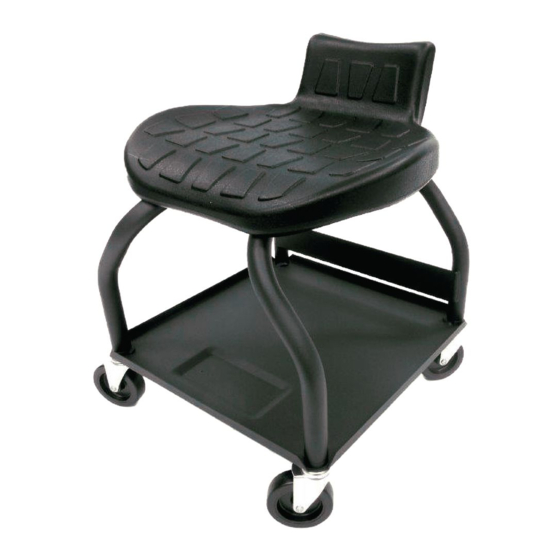

MECHANICS STOOL
DESCRIPTION
Mechanics Stool is ergonomically engineered. Designed for
exceptional wear and durability. Stool is practical for many
applications.
Frame of 1˝ tube steel and epoxy powder coated black. 3˝ dia -
meter soft tread casters provide ease of movement on hard
surfaces. Casters are non-marking and oil-resistant to withstand
harsh environments.
ASSEMBLY INSTRUCTIONS
1. Unpack your stool and account for all parts.
2. Push casters (Key No. 1) into bottom holes in frame (Key
No. 2).
NOTE: Make sure all four casters are properly seated into
holes in bottom of frame.
3. Place seat (Key No. 6) upside down on a work surface. Insert
four spacers (Key No. 3) in four outside holes in bottom of
seat. Position back brace of frame towards back of seat. Align
four holes in tube on frame with four holes in seat. Attach
seat using phillips pan head screws and flat washers (Key
Nos. 4 and 5). Securely tighten all four screws to seat.
GENERAL SAFETY INSTRUCTIONS
• Do not stand on seat.
• Stool must be on level surface to ensure proper stability.
• Only use stool when fully assembled.
• Periodically check fasteners and tighten securely if needed.
• Never use stool if it does not perform according to this
manual.
• Do not exceed stool maximum weight capacity of
400 pounds.
Part No. 10870.00 Sold by Matco Tools, 4403 Allen Road, Stow, OH 44224-1096
.
OWNER'S MANUAL
INDUSTRIAL SEATING LIMITED WARRANTY
Product is warranted against mechanical or structural failure due
to defective material or workmanship for 1 year. Provided
however, this warranty lasts only so long as you own your
product. If you sell or otherwise transfer the product this
warranty terminates automatically. Products that are damaged
or made unserviceable by accidents, abuse, misuse or are
altered in anyway are not covered by this warranty.
Matco Tools reserves the right to replace or recondition at its
option, any units covered by this warranty. All return shipments
require Material Return Authorization and must be freight
prepaid unless otherwise approved in writing.
If any product covered under this warranty fails to meet the
terms of this warranty or it is in any respect broken, defective
or missing parts, please call us immediately at toll free
1-866-289-8665. Any attempts to make unauthorized repairs
will void this warranty in every respect.
This warranty gives you specific legal rights. You may have other
rights which vary from state to state, however such implied
rights are limited to a period of one year from the date of your
initial purchase. Some states do not allow limitations on how
long an implied warranty lasts, so the above limitation may not
apply to you.
Matco Tools will in no event be liable for incidental or conse -
quential damages for any amount in excess of the original
purchase price. Some states do not allow exclusion or limitation
of such damages, so the above limitation or exclusion may not
apply to you.
HOW TO ORDER REPAIR PARTS
When ordering repair parts or reporting problems, always
give the following information:
NAME OF ITEM
Mechanics Stool
PART DESCRIPTION
_______________________________
All parts listed may be ordered from Matco Tools® Customer
Service at 1-866-289-8665.
.
Model No.
CSHDP
MODEL NUMBER
CSHDP
PART NUMBER
_______________
April 2021
