Summary of Contents for eMachines E630 Series

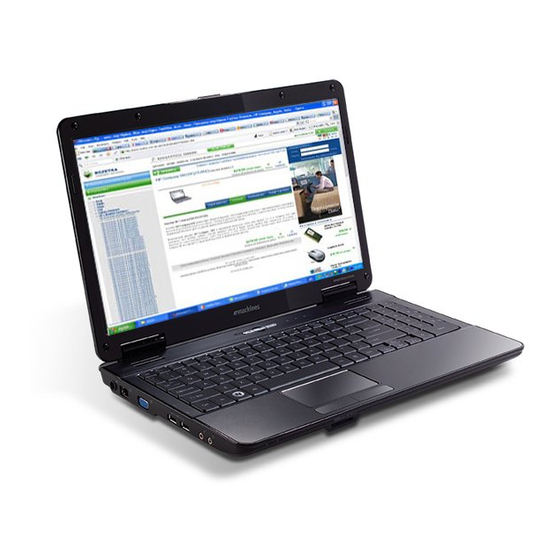

- Page 1 E630/E430 Series Service Guide Service guide files and updates are available on the eMachines/CSD web; for more information, please refer to downloads.emachines.com/userguides/ PRINTED IN TAIWAN...
- Page 2 Revision History Please refer to the table below for the updates made on eMachines E630/E430 service guides. Date Chapter Updates...
- Page 3 Any eMachines Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not eMachines Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.
- Page 4 Conventions The following conventions are used in this manual: Denotes actual messages that appear SCREEN MESSAGES on screen. NOTE Gives bits and pieces of additional information related to the current topic. WARNING Alerts you to any damage that might result from doing or not doing specific actions.
- Page 5 Service Guide. For eMachines-AUTHORIZED SERVICE PROVIDERS, your eMachines office may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional eMachines office to order FRU parts for...
- Page 7 Your eMachines Notebook Tour ........
- Page 8 Table of Contents Removing the Right Speaker Module ....... . .66 Removing the TouchPad Bracket .
- Page 9 Table of Contents Intermittent Problems ..........132 Undetermined Problems .
- Page 10 Table of Contents...
- Page 11 Chapter 1 System Specifications Features Below is a brief summary of the computer’s many features: NOTE: Items denoted with an asterisk are available for select models only Operating System • Genuine Windows® 7™ Platform • AMD Sempron™ single-core processor* • AMD Athlon™...
- Page 12 Audio • Realtek ALC272X-GR for High Definition Audio Codec with Dolby Digital Live • Internal speakers x2 (2W) • Mic-in jack • Headphone/Line out jack Dimensions and Weight • 372.3mm x 246.5mm x 26.8mm/40.6mm with ID • Weight 2.7kg (15.6" LCD/6-cell battery/super-multi ODD) Communication •...
- Page 13 • DC-IN port for adapter • RJ-45 Ethernet port for LAN • 2 USB port • Headphone out / Line-out • Microphone-in • Multi-in-1 card reader (SD™, MMC, MS, MS PRO, xD • Kensington Lock (7.5mm) Environment • Temperature: • Operating: 5 °C to 35 °C •...
- Page 14 System Block Diagram Chapter 1...
- Page 15 Your eMachines Notebook Tour Front View Icon Item Description Integrated Web camera for video communication webcam (for selected models). Display screen Also called Liquid-Crystal Display (LCD), displays computer output. Touchpad toggle Turns the internal touchpad on and off. Power button Turns the computer on and off.
- Page 16 Icon Item Description TouchPad Touch-sensitive pointing device which functions like a computer mouse. Click buttons (left The left and right buttons function like the left and right) and right mouse buttons. Palmrest Comfortable support area for your hands when you use the computer. Indicates when the hard disk drive is active.
- Page 17 Rear View Icon Item Description Ventilation slots Enable the computer to stay cool, even after prolonged use. Left View Icon Item Description DC-in jack Connects to an AC adapter Ethernet (RJ-45) Connects to an Ethernet 10/100-based port network. External display Connects to a display device (VGA) port (e.g.
- Page 18 Right View 2 3 4 Item Description Optical drive Internal optical drive; accepts CDs or DVDs. Optical disk access Lights up when the optical drive is active. indicator Optical drive eject button Ejects the optical disk from the drive. Emergency eject hole Ejects the optical drive tray when the computer is turned off.
- Page 19 Icon Item Description Battery lock Locks the battery in position. Hard disk bay Houses the computer's hard disk (secured with screws). Memory Houses the computer's main memory. compartment Ventilation slots Enable the computer to stay cool, even after and cooling fan prolonged use.
- Page 20 Indicators The computer has several easy-to-read status indicators. The front panel indicators are visible even when the computer cover is closed. Icon Function Description Power Indicates the computer's power status. Battery Indicates the computer's battery status. Indicates when the hard disk drive is active. Num Lock Lights up when Num Lock is activated.
