- Page 1 INSTALLATION AND MAINTENANCE MANUAL GREGAL SOLID LINES Versión: 2 For additional copies visit: TRANSLATION OF THE ORIGINAL DOCUMENT D008270 www.frost-trol.com...
-
Page 2: Table Of Contents
FAULTS AND REPAIRS ..............26 6.1. MALFUNCTIONS ................26 6.1.1. THE UNIT DOESN’T START UP OR IT STOPS: ........26 6.1.2. THE UNIT DOES NOT GET COLD ENOUGH: .........26 GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com D008270... - Page 3 INSTALLATION AND MAINTENANCE MANUAL 6.2. FINAL SHUTDOWN ................28 6.3. DISMANTLING THE CABINET .............28 6.4. DECLARTION OF ROHS CONFORMITY ..........29 GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com D008270 Versión: 2...
-
Page 5: Eec Declaration Of Conformity
INSTALLATION AND MAINTENANCE MANUAL EEC DECLARATION OF CONFORMITY GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com D008270 Versión: 2... -
Page 6: Safety Advice
Do not use any electrical appliances inside the storage compartments for the food frozen by the equipment, unless recommended by the manufacturer. Do no damage the refrigerating circuit. GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com... - Page 7 Ensure that the power supply voltage meets the details on the rating plate of the cabinet. The cabinet must be properly connected to the earthing system. GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com...
- Page 8 Gloves should be worn during product loading operations. Any other use not explicitly mentioned in this handbook must be considered as hazardous. The manufacturer disclaims all liability for damage resulting from improper, incorrect or unreasonable use. GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com...
-
Page 9: General Information
1. GENERAL INFORMATION Welcome to the new series of remote refrigerated display cabinet modules from Frost-Trol for the sale of perishable food products. We are delighted by your decision to choose us. This assembly and maintenance manual has been especially designed with a view... -
Page 10: Description Of Refrigerated Display Cabinet

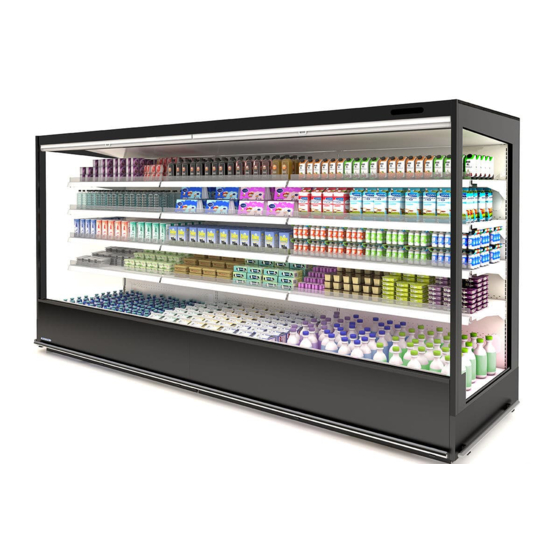

The star of the range, the Gregal model, comes in the traditional heights of 2000 and 2200 mm. The cabinet has a wide range of optional accessories. If you need details about its assemblage, please contact with Frost-trol, S.A. -
Page 11: Shop Conditions
Technical Department. If you need to get in contact with Frost-Trol with regard to a specific element, please make sure that you are able to quote the model and serial number. This information can be found on the nameplate, which is located inside the refrigerated display cabinet. -
Page 12: Storage
(closure of air vents, removal of ventilators, closure of doors, etc.). During the installation (or while carrying out maintenance) you must always wear proper safety equipment to preserve your security. GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com... -
Page 13: Upacking
The siphons should be installed as near to the unit's opening as possible. The tubes should be secured so that the siphons do not have to support their entire weight. GREGAL TRANSLATION OF THE For additional copies visit:... - Page 14 Connect the drip pipes to an adequate manifold to allow a correct dripping. Protect the drip piping system against freezing as needed. Do not install drip piping in contact with not insulated suction lines. Avoid installing excessive pipe length. GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com...
-
Page 15: Assembly
All tube and cable fittings should be sealed from the outside to ensure that they remain completely waterproof. Tools and materials needed: GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com... - Page 16 Figura 1 2 Level the two cases length and wide sides. If necessary, use a wooden wedge to facilitate the adjustable bases regulation. GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com...
- Page 17 11 Put back covers, base decks and plinth panels back on the cabinet. 12 Mount front and side plinth panels. Screw them on the cabinet legs. GREGAL TRANSLATION OF THE For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com...
- Page 18 INSTALLATION AND MAINTENANCE MANUAL TRANSLATION OF THE GREGAL For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com D008270 Versión: 2 -16-...
- Page 19 INSTALLATION AND MAINTENANCE MANUAL UPPER FRINGE ADJUSTMENT PLINTH PANNELS TRANSLATION OF THE GREGAL For additional copies visit: ORIGINAL DOCUMENT SOLID LINES www.frost-trol.com D008270 Versión: 2 -17-...
-
Page 20: Refrigerating System Connection
20±0,5 bar. Check this value before depressurising. If this is not the case then do not actuate the cabinet and contact the Frost-Trol technical department within 72 hours. The refrigerated cabinet must be dehydrated in avacuum and at the unit's normal operating pressure. -
Page 21: Electrical Connection
Before plugging into the mains, check that the supply voltage is the same as the voltage indicated on the nameplate. The electricity supply should be adequate for maximum consumption. TRANSLATION OF THE GREGAL SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost-trol.com D008270 Versión: 2... -
Page 22: Doors Intallation
Before the first use, it’s mandatory to clean the unit thoroughly, both inside and out, with non-abrasive detergents and rinse well with water. Dry the inside with a cloth so that no water remains inside the unit (see Chapter 4). TRANSLATION OF THE GREGAL SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost-trol.com D008270 Versión: 2... -
Page 23: Operation
Empty spaces should be left between products to ensure perfect air circulation around them. Gloves should be worn when loading products into the cabinet. TRANSLATION OF THE GREGAL SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost-trol.com D008270 Versión: 2... -
Page 24: Maintenance And Cleaning
Do not tamper with the system. It must be serviced by qualified persons only. Contact qualified service personal before disposal. TRANSLATION OF THE GREGAL SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost-trol.com D008270 Versión: 2... -
Page 25: Generic Cleaning Routine
Make sure that the drainage holes are not obstructed by any remaining merchandise, as this could impede the drainage of excess water resulting from defrosting. TRANSLATION OF THE GREGAL SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost-trol.com D008270 Versión: 2... -
Page 26: Doors Maintenance
Lamps are fixed to cabinet with magnetic supports. To replace them, it is simply necessary to pull them down (1) and disconnect the cable from the power in cable (2) and replace them with tubes of the same characteristics. TRANSLATION OF THE GREGAL SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost-trol.com D008270 Versión: 2... -
Page 27: Spare Parts Request
Quantity: *The series number is indicated inside the refrigerated cabinet, on the characteristics plate. ** Taking the customer’s standing position as a reference. *** You may request to Frost-trol the spare parts cross-section. Frost-trol, S.A. Spare Parts Department Av. del Castell Vell, 176 12004 Castellón (Spain). -
Page 28: Faults And Repairs
In case of malfunctioning, the following information is completely necessary to find the reasons of the trouble and suggest the solution for it: TRANSLATION OF THE GREGAL SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost-trol.com D008270 Versión: 2... - Page 29 State of liquid sight glass (full, partially full, empty): Defrost heaters amps (when it’s mounted): Other details, or photos, that could help will redound to find a quicker solution. TRANSLATION OF THE GREGAL SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost-trol.com D008270 Versión: 2...
- Page 30 INSTALLATION AND MAINTENANCE MANUAL 6.2. FINAL SHUTDOWN We, Frost-trol SA, declare this product is covered by Directive 2002/96/CE (Waste Electrical and Electronic Equipment) designed to halt the increase of this type of waste and promote recycling as well as decreasing disposal.
- Page 31 6.4. DECLARTION OF ROHS CONFORMITY We, Frost-trol, S.A. declare under our sole responsibility that the refrigerated cabinet complies with the provisions of Directive 2002/96/EEC (RoHS). In all the homogeneous materials used for its production, any content of lead, mercury, hexavalent chrome, polybrominated biphenyl (PBB), and polybrominated diphenil ether (PBDE) does not exceed, in weight 0.1%;...
- Page 32 ESPAÑA PLANTA CABANES: CV 159 Km 2 - 12180 Cabanes (Castellón), Spain -Tel. (+34) 964 342 740 - Fax. (+34) 964 215 148 - info@frost-trol.com MÉXICO: Av. Pirules, 134 B esquina con Av.Tejocotes, Fraccionamiento San Martin Obispo Cuautitlán Izcallí CP 54769, Estado de México - Tlf. (+52) 55 58193189 - info.mx@frost-trol.com...
