- Page 1 INSTALLATION AND MAINTENANCE MANUAL ALBORAN BM SOLID LINES WARNING: Read the instructions before using the appliance. D004007 For additional copies visit: TRANSLATION OF THE ORIGINAL DOCUMENT Versión:-1 www.frost‐trol.com...
-
Page 2: Table Of Contents
COMPROBATIONS: ................ 21 6.2. FINAL SHUTDOWN ................. 21 6.3. DISMANTLING THE CABINET ............22 6.4. DECLARTION OF ROHS CONFORMITY ..........22 TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com Versión: -1... -
Page 4: Safety Advice
Before obtaining access to terminals, all supply circuits must be disconnected. TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com... - Page 5 Any other use not explicitly mentioned in this handbook must be considered as hazardous. The manufacturer disclaims all liability for damage resulting from improper, incorrect or unreasonable use. TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com...
-
Page 6: General Information
INSTALLATION AND MAINTENANCE MANUAL 1. GENERAL INFORMATION Welcome to the Alboran BM series of dry heat display cabinet modules from Frost- Trol for the sale of pre-cooked products. We are delighted by your decision to choose us. This assembly and maintenance manual has been especially designed with a view... -
Page 7: Description Of The Display Cabinet

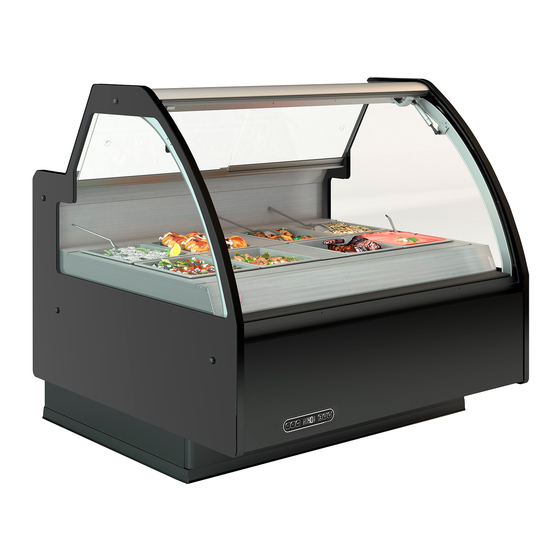

INSTALLATION AND MAINTENANCE MANUAL 1.1. DESCRIPTION OF THE DISPLAY CABINET The display cabinets referred to in this manual belong to Alboran BM Solid Lines product series from from Frost-Trol. These are self-service thermal display counters, specifically designed for the sale of precooked food. - Page 8 1205 [47 1/2"] 302 [11 7/8"] 1205 [47 1/2"] MODUL MODUL 1250 1250 1302 1250 [49 1/4"] 1126 [44 1/4"] ALBORAN BM SOLID-LINES HV-8325C 1250 625 [24 5/8"] TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com Versión: -1...
- Page 9 INSTALLATION AND MAINTENANCE MANUAL 1302 [51 1/4"] 1250 [49 1/4"] 1126 [44 1/4"] ALBORAN BM SOLID-LINES HV-9125BM 1250 625 [24 5/8"] ENTRADA DE AGUA Ø1/2" WATER INLET Ø1/2" PRISE D'EAU Ø1/2" WASSEREINGANG Ø1/2" ON BOTTOM INFERIOR INFÉRIEUR UNTEN DRAIN ECOULEMENT ABFLUSSANSCHLUSS DESAGÜE Ø40mm CONEXIÓN ELÉCTRICA...
-
Page 10: Operating Conditions
Should you have any technical queries concerning the installation of the display cabinet, please contact our Technical Department. If you need to get in contact with Frost-Trol with regard to a specific element, please make sure that you are able to quote the model and serial number. This information can be found on the nameplate, which is located inside the display cabinet. -
Page 11: Intallation Of The Display Cabinet
Packaging materials (plastic bags, nails, screws, polystyrene, etc.) should not be left within reach of children as they pose potential sources of danger. 2.3. LEVELLING Use the adjustable bases to level the unit. TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com Versión: -1 -11-... -
Page 12: Electrical Connection
Chapter 4. 2.5. EQUIPOTENTIAL BONDING It is mandatory to plug the appliance to the user’s equipotential system by the connection point identified by the symbol IEC60417-5021. TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com Versión: -1... -
Page 13: Connection To The Water Supply Network
Before the first use, it’s mandatory to clean the unit thoroughly, both inside and out, with non-abrasive detergents and rinse well with water. Dry the inside with a cloth so that no water remains inside the unit (see Chapter 4). TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com... -
Page 14: Operation
The light will indicate that the heating resistors are working. LIGHTING SWITCH WATER HEATING RESISTORS SWITCH During the inactivity periods, close the valve. TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com Versión: -1 -14-... -
Page 15: Hot Surfaces
Never lay out product directly onto the glass ceramic hob. Always ‐ use thermally stable containers. If exposed food is prepackaged, make sure that product package ‐ supports temperature. TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com Versión: -1 -15-... - Page 16 Rear doors only must be opened when necessary. ‐ The cabinet doors should be closed as long as possible. In this way, excessive energy consumptions will be avoided. TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com Versión: -1...
-
Page 17: Maintenance And Cleaning
The appliance mustn’t be cleaned by water jets or by a steam cleaner. In case the appliance stays out of operation for some time, remove the foodsfuffs from inside, unplug it, clean it following the procedure described as follows. TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com... -
Page 18: Generic Cleaning Routine
Prolonged looking at the lamp during operation may result in damage in to the eye. TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com Versión: -1... - Page 19 Integrate lamp in equipment specifically designed for the type and rating of the lamp. Protect the lamp against shocks and vibrations even when it is cold. TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ORIGINAL DOCUMENT www.frost‐trol.com Versión: -1...
-
Page 20: Spare Parts Request
Quantity: *The series number is indicated inside the cabinet, on the characteristics plate. ** Taking the customer’s standing position as a reference. *** You may request to Frost-trol the spare parts cross-section. Table 1. Name plate TRANSLATION OF THE ALBORAN BM SOLID LINES For additional copies visit: ... -
Page 21: Faults And Repairs
Other details or photos would help to find a solution. 6.2. FINAL SHUTDOWN We, Frost-trol SA, declare this product is covered by Directive 2002/96/CE (Waste Electrical and Electronic Equipment) designed to halt the increase of this type of waste and promote recycling as well as decreasing disposal. -
Page 22: Dismantling The Cabinet
European countries. 6.4. DECLARTION OF ROHS CONFORMITY We, Frost-trol, S.A. declare under our sole responsibility that the cabinet complies with the provisions of Directive 2002/96/EEC (RoHS). In all the homogeneous materials used for its production, any content of lead, mercury, hexavalent chrome, polybrominated biphenyl (PBB), and polybrominated diphenil ether (PBDE) does not exceed, in weight 0.1%;... - Page 23 Frost-trol, S.A. Technical Department Avda. del Castell Vell, 176 12004 Castellón (Spain). Phone.: 0034 964 34 27 40 Fax: 0034 964 21 51 48 e-mail: frost-trol@frost-trol.com www.frost-trol.com...
