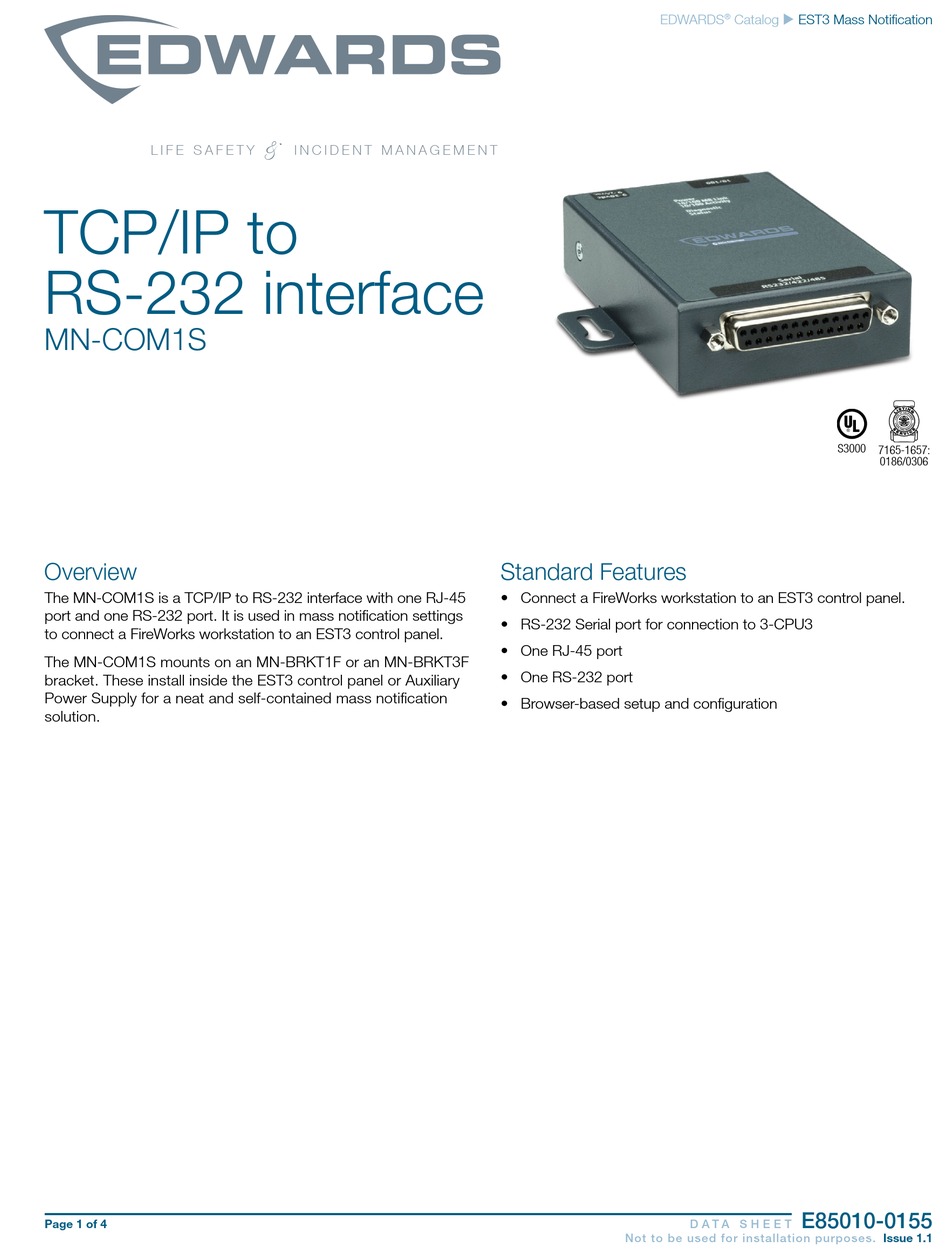

Edwards MN-COM1S Quick Start Manual

L I F E S A F E T Y
TCP/IP to
RS-232 interface
MN-COM1S

Overview

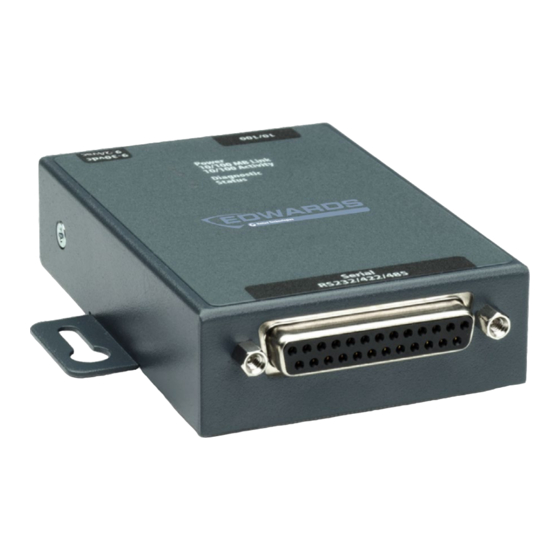

The MN-COM1S is a TCP/IP to RS-232 interface with one RJ-45
port and one RS-232 port. It is used in mass notification settings
to connect a FireWorks workstation to an EST3 control panel.
The MN-COM1S mounts on an MN-BRKT1F or an MN-BRKT3F
bracket. These install inside the EST3 control panel or Auxiliary
Power Supply for a neat and self-contained mass notification
solution.
Page 1 of 4
&
I N C I D E N T M A N A G E M E N T
EDWARDS

Standard Features

• Connect a FireWorks workstation to an EST3 control panel.
• RS-232 Serial port for connection to 3-CPU3
• One RJ-45 port
• One RS-232 port
• Browser-based setup and configuration
Not to be used for installation purposes.
Catalog u EST3 Mass Notification
®
S3000
E85010-0155
D A T A S H E E T
7165-1657:
0186/0306
Issue 1.1
