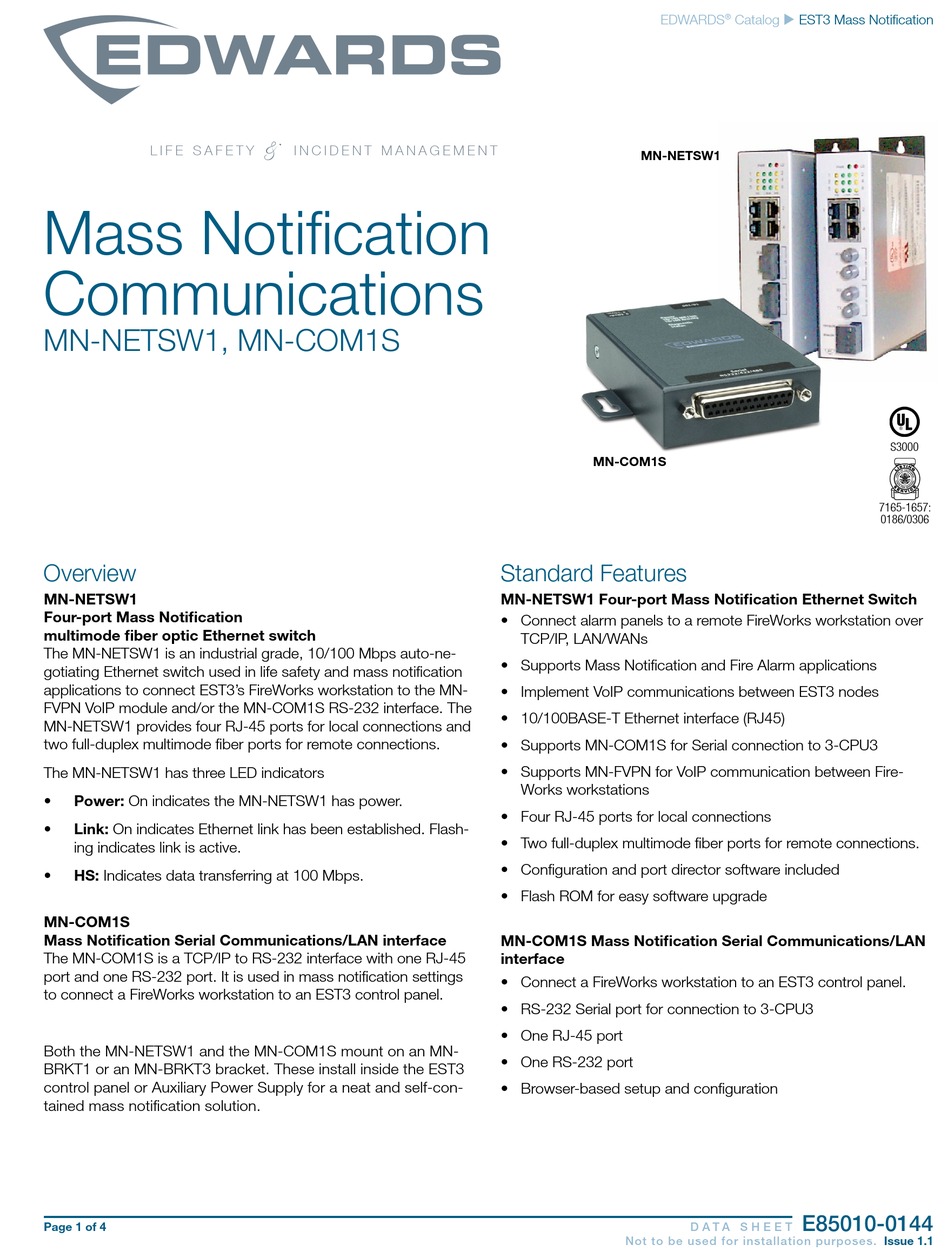

MN-NETSW1, MN-COM1S
Overview
MN-NETSW1
Four-port Mass Notification
multimode fiber optic Ethernet switch
The MN-NETSW1 is an industrial grade, 10/100 Mbps auto-ne-
gotiating Ethernet switch used in life safety and mass notification
applications to connect EST3's FireWorks workstation to the MN-
FVPN VoIP module and/or the MN-COM1S RS-232 interface. The
MN-NETSW1 provides four RJ-45 ports for local connections and
two full-duplex multimode fiber ports for remote connections.
The MN-NETSW1 has three LED indicators
•
Power: On indicates the MN-NETSW1 has power.
•
Link: On indicates Ethernet link has been established. Flash-
ing indicates link is active.
•
HS: Indicates data transferring at 100 Mbps.

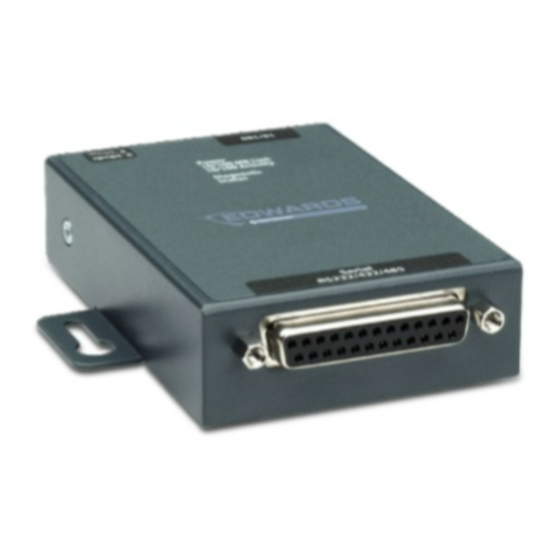

MN-COM1S
Mass Notification Serial Communications/LAN interface
The MN-COM1S is a TCP/IP to RS-232 interface with one RJ-45
port and one RS-232 port. It is used in mass notification settings
to connect a FireWorks workstation to an EST3 control panel.
Both the MN-NETSW1 and the MN-COM1S mount on an MN-
BRKT1 or an MN-BRKT3 bracket. These install inside the EST3
control panel or Auxiliary Power Supply for a neat and self-con-
tained mass notification solution.
Page 1 of 4
&
I N C I D E N T M A N A G E M E N T
EDWARDS
MN-NETSW1
MN-COM1S
Standard Features
MN-NETSW1 Four-port Mass Notification Ethernet Switch
• Connect alarm panels to a remote FireWorks workstation over
TCP/IP, LAN/WANs
• Supports Mass Notification and Fire Alarm applications
• Implement VoIP communications between EST3 nodes
• 10/100BASE-T Ethernet interface (RJ45)
• Supports MN-COM1S for Serial connection to 3-CPU3
• Supports MN-FVPN for VoIP communication between Fire-
Works workstations
• Four RJ-45 ports for local connections
• Two full-duplex multimode fiber ports for remote connections.
• Configuration and port director software included
• Flash ROM for easy software upgrade
MN-COM1S Mass Notification Serial Communications/LAN
interface
• Connect a FireWorks workstation to an EST3 control panel.
• RS-232 Serial port for connection to 3-CPU3
• One RJ-45 port
• One RS-232 port
• Browser-based setup and configuration
Not to be used for installation purposes.
Catalog u
EST3 Mass Notification
®
E85010-0144
D A T A S H E E T
S3000
7165-1657:
0186/0306
Issue 1.1
