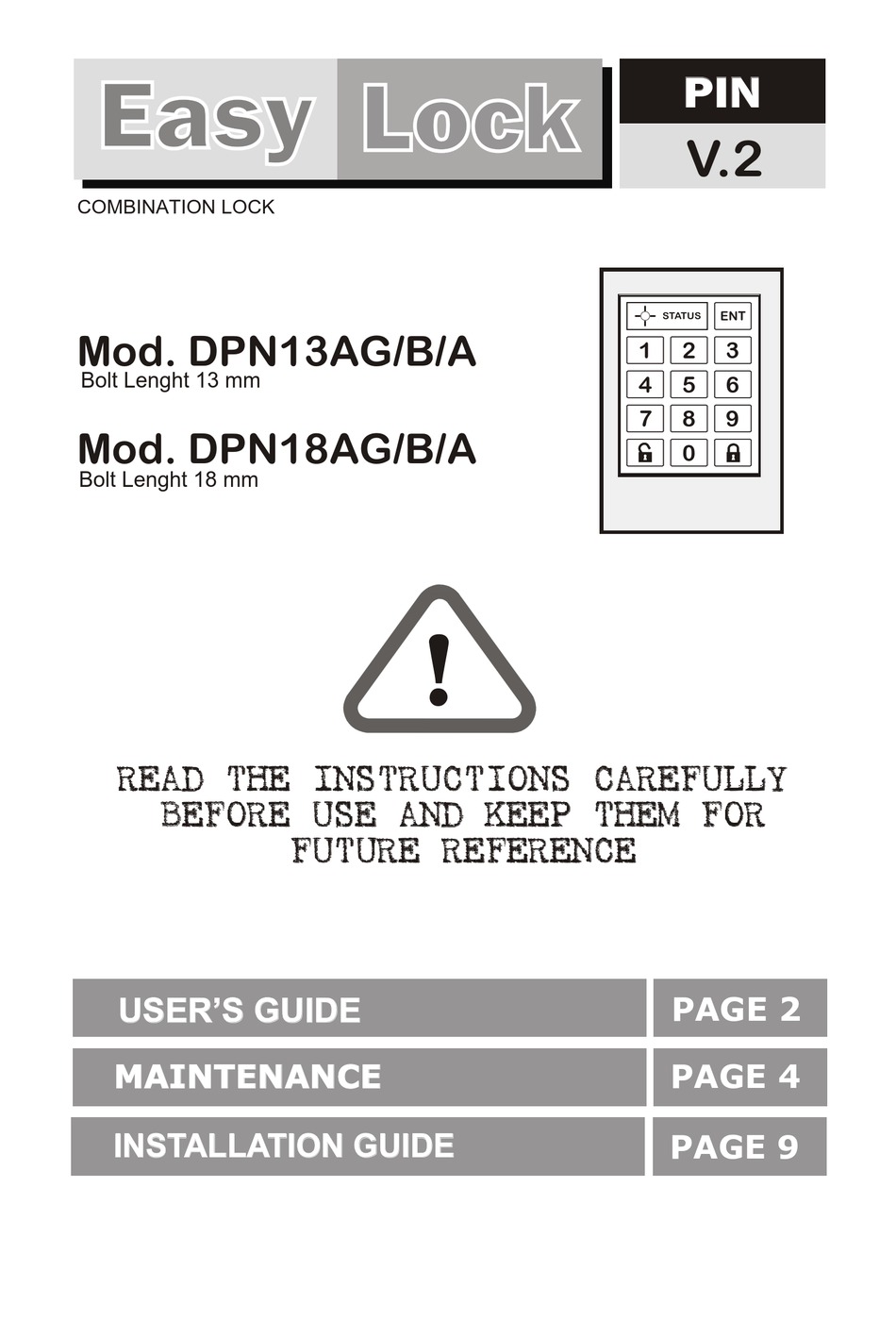

Easy
Easy
Easy Lock
COMBINATION LOCK
Mod. DPN13AG/B/A
Bolt Lenght 13 mm
Mod. DPN18AG/B/A
Bolt Lenght 18 mm
READ THE INSTRUCTIONS CAREFULLY
READ THE INSTRUCTIONS CAREFULLY
BEFORE USE AND KEEP THEM FOR
BEFORE USE AND KEEP THEM FOR
USER'S GUIDE
USER'S GUIDE
MAINTENANCE
MAINTENANCE
INSTALLATION GUIDE
INSTALLATION GUIDE
Lock
Lock
!
FUTURE REFERENCE
FUTURE REFERENCE
PIN
PIN
V.2
ENT
STATUS
1
2
3
4
5
6
7
8
9
0
PAGE 2
PAGE 4
PAGE 9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitron Easy Lock DPN13AG
Summary of Contents for Digitron Easy Lock DPN13AG
- Page 1 Easy Easy Lock Lock Easy Lock COMBINATION LOCK STATUS Mod. DPN13AG/B/A Bolt Lenght 13 mm Mod. DPN18AG/B/A Bolt Lenght 18 mm READ THE INSTRUCTIONS CAREFULLY READ THE INSTRUCTIONS CAREFULLY BEFORE USE AND KEEP THEM FOR BEFORE USE AND KEEP THEM FOR FUTURE REFERENCE FUTURE REFERENCE PAGE 2...
- Page 2 USER’S GUIDE USER’S GUIDE CLOSING Press the button , insert a 4 digits code and press the button The led will shortly flash 1 time every 2 seconds to indicate that the lock is closed OPENING Press the button Digit the choosen code for closing and press the button OPENING WITH PASSEPARTOUT CODE Press the button Insert the 6 digits passepartout code...
-
Page 3: Timer Setting
TIMER SETTING By inserting the timer, the lock will open after an established time everytime it is closed. To set the timer please follow the instructions below: With the lock "OPEN" press the button and release it only after the led has issued 2 short flashes and 1 longer. -
Page 4: Read Carefully
READ CAREFULLY READ CAREFULLY FEW INSTRUCTIONS AND SOME SUGGESTIONS TO KEEP EFFICIENT THE LOCKS FEW INSTRUCTIONS AND SOME SUGGESTIONS TO KEEP EFFICIENT THE LOCKS CLEANING Clean the lock exclusively with a dump cloth. Avoid soap, solvents, alcohol etc. AVOID TO MAKE ENTER THE WATER IN THE LOCK If the water gets inside the lock in addition to discharge the batteries can permanently damage the lock BATTERIES ( see page 5 ) When the batteries have not enough power to close the lock the led red turn ON and stays ON until the complete... -
Page 5: Replacing The Batteries
REPLACING THE BATTERIES REPLACING THE BATTERIES ALWAYS ON ALWAYS ON THE LOCK DOES NOT WORK AND THE RED LED IS “ON” STATUS THE LOCK IS COMPLETELY INACTIVE BATTERIES DISCHARGED BATTERIES DISCHARGED ALKALINE BATTERIES ( 1,5 V - AAA ) USE ONLY ALKALINE BATTERIES DO NOT USE RECHARGEABLE BATTERIES IT IS RECOMMANDED TO REPLACE THE BATTERIES WITHIN 2 YEARS FROM THEIR INSTALLATION PAGE 5... - Page 6 OBSTACLE OBSTACLE IF DURING THE CLOSING PHASE THE BOLT HITS AGAINST THE STOP-BOLT AND IT DOES NOT CLOSE ( SEE FIGURE 3 AND 4 ) AFTER 3 SECONDS THE BOLT COME BACK IN THE POSITION “OPEN”.. THE REPETITION OF THE PROBLEM COULD DAMAGE THE INTERNAL MECHANISM.. IF THE LOCK CLOSES BUT THE BOLT FORCES HORIZONTALLY AGAINST THE STOP-BOLT ( SEE FIGURE 2 ) THE CONSUMPTION OF BATTERIES DRASTICALLY INCREASES.
-
Page 7: Emergency Opening
USE OF EXTERNAL POWER SUPPLY ( PFAESEL02 ) EMERGENCY OPENING DOOR STATUS Unhook the cover with the help of a screwdriver by acting in the point shown in the picture COVER KEYBOARD Please be sure that the external power supply commutator is on “ON”... - Page 8 INSTALLATION GUIDE INSTALLATION GUIDE Pic. On the door make a 9 mm diameter hole. To determine the horizontal position of the hole refer to the fixing quotas as reported at page 14 fig. 10.1 and 10.2. ( see note 1 ) 9 mm Nota 1 : Since the connection between keyboard and the lock is made with flexible cable, the hole can be done, if necessary, in a different...
- Page 9 Pic. STATUS Fix the keyboard to the door with the help of n.4 cylindric head screws diameter 3 mm - lenght 12 mm. DIN 7505-B Fig. ( max ) Pic. After having removed the cover of the lock pass the cable across the proper hole placed on the back of the lock and insert it in the connector as shown in the picture...
- Page 10 Pic. Bend the cable as shown in picture in order to position the wires between the lock and the door Fix the lock to the door with the help of n. 4 cylindric head screws, Pic. diameter 4 mm making sure that the bolt correctly works both in closing and opening phase, according to the specification reported at page 14...
- Page 11 Pic. Close the lock with the cover with the help of the proper fixing screws. Pic. DOOR LOCK Hook the cover to the keyboard as shown in picture KEYBOARD COVER PAGE 11...
- Page 12 USE OF SPACER ( optional ) 4 mm Pic. The spacer is an optional accessory to be used when you want to leave the body of the lock from the door. Pic. DOOR SPACER LOCK KEYBOARD More spacers can be used for the door with reduced thickness.
- Page 13 QUOTE FOR LOCK FIXING Model DPN18AG/B/A = 18 mm Pic. 10.1 Fig. 10.1 SCALE 1:1 BOLT Left opening door Hole on the door Right opening door BOLT 37.5 37.5 (Min.) Pic. 10.2 3 mm PLEASE NOTE THAT THE NON OBSERVANCE OF THE RULES ABOVE DESCRIBED FOR A CORRECT INSTALLATION WILL AUTOMATICALLY VOID EVERY KIND OF WARRANTY OF THE PRODUCT...
-
Page 14: Keyboard + Cover
DIMENSION LOCK n.4 holes Model DPN18AG/B/A = 18 mm KEYBOARD + COVER STATUS...
