GRADIENT MODE

10

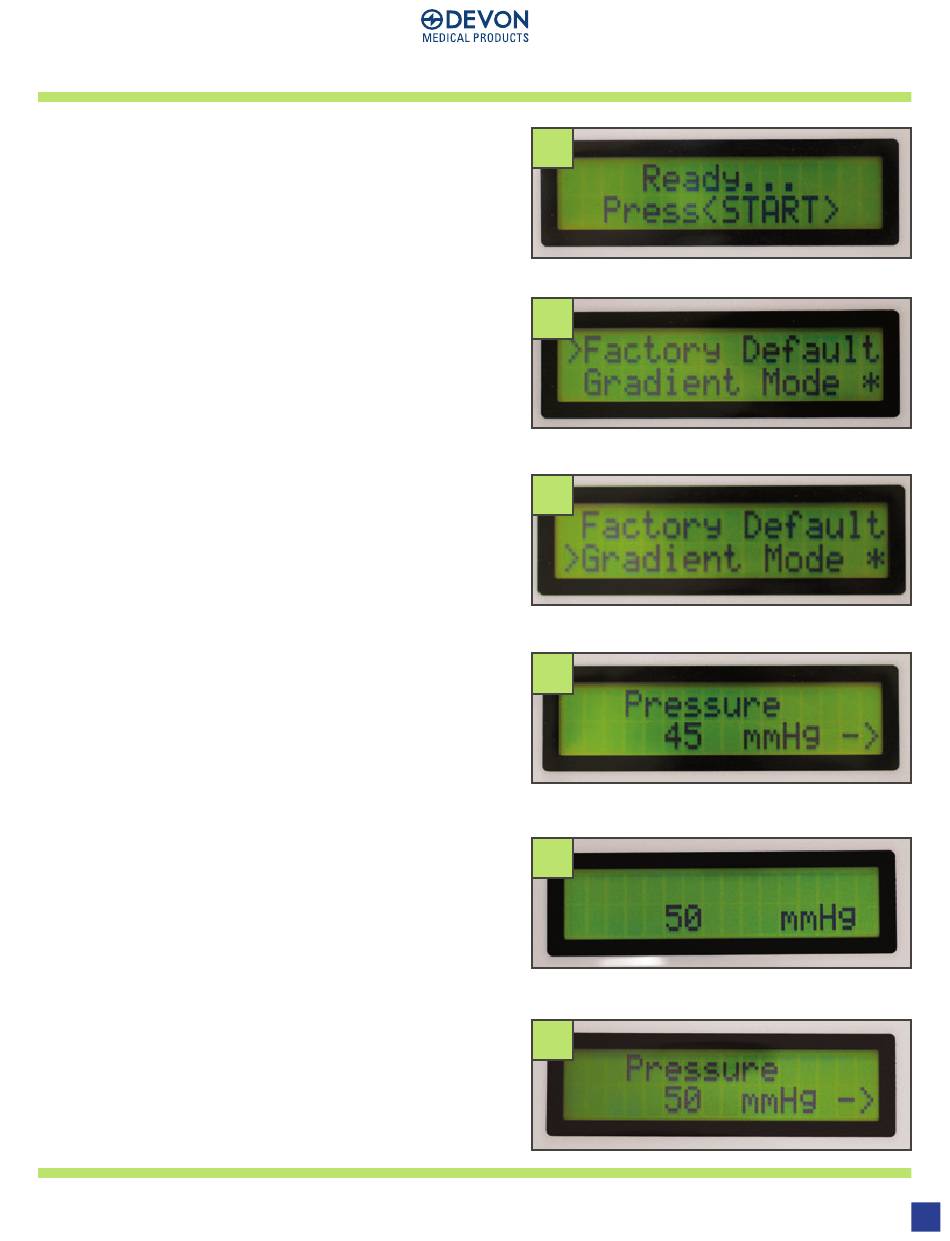

Upon this display, the user can access GRADIENT MODE by
pushing the SHUTTLE KNOB (circular button). This will take
you to THERAPY MODE SETTINGS. The indicator light will
be yellow (setting).
11
This display shows THERAPY MODE SETTINGS.
*Note: The asterisk (*) shows which mode is currently
selected.
12
Turn the SHUTTLE KNOB to the right to select
GRADIENT MODE. Then, push the SHUTTLE KNOB to
access GRADIENT MODE. It will take you through
various parameters: PRESSURE, GRADIENT, TREATMENT
TIME, CYCLE TIME, AND SKIP CHAMBER.
13
This display shows the first parameter: PRESSURE
(turn the SHUTTLE KNOB to the left). Push the SHUTTLE
KNOB to select PRESSURE.
*Note: User can access other parameters by turning
the SHUTTLE KNOB to the right/left at any time.
14
You can increase the pressure by turning the SHUTTLE
KNOB to the right, and decrease the pressure by turning
to the left. (pressure can range from 25 – 120 mmHg,
increments of 1 mmHg)
15
Push the SHUTTLE KNOB to confirm the new pressure.
