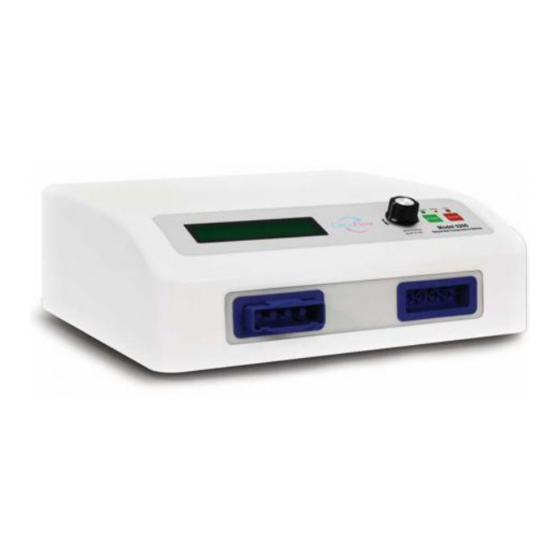

- Page 1 CircuFlow 5200 ™ Quick Setup Guide www.devonmedicalproducts.com • 1100 First Avenue, Suite 202 King of Prussia, PA 19406 • 866.446.0092 LB014 Rev B DRAFT 20121002...
-
Page 2: Table Of Contents
Setup TABLE OF CONTENTS Therapy Setup Gradient Mode Pressure Mode Lock/Unlock Device 11-12 Treatment www.devonmedicalproducts.com • 1100 First Avenue, Suite 202 King of Prussia, PA 19406 • 866.446.0092... -
Page 3: Setup
SETUP Open the shipping box and lift device up and out of box. Check to make sure the box also contains 1 power cord, 1 air blocker, and a user manual. Remove the protective foam covers on each side and the plastic bag. (Not Pictured) Place the device on a flat and stable surface near the patient. -
Page 4: Table Of Contents Therapy Setup
THERAPY SETUP (Settings can only be modified or restored before or in between treatments.) There are three operating modes with this device: • Factory Default Mode: Device comes with a factory default setting providing 45mmHg pressure on distal chamber and a 7% of gradient pressure, and a 30 minute treatment time with a 30 second cycle time, with no chambers being skipped. -
Page 5: Gradient Mode
GRADIENT MODE Upon this display, the user can access GRADIENT MODE by pushing the SHUTTLE KNOB (circular button). This will take you to THERAPY MODE SETTINGS. The indicator light will be yellow (setting). This display shows THERAPY MODE SETTINGS. *Note: The asterisk (*) shows which mode is currently selected. - Page 6 GRADIENT MODE (Continued) Access the second parameter, GRADIENT, by turning the SHUTTLE KNOB to the right. Push the SHUTTLE KNOB to select GRADIENT. You can increase the gradient by turning the SHUT- TLE KNOB to the right, and decrease by turning to the left (gradient can range from 5 –...
- Page 7 GRADIENT MODE (Continued) You can increase the cycle time by turning the SHUT- TLE KNOB to the right, and decrease time by turning to the left (cycle time can range from 20 – 80 seconds, increments of 10 seconds). Push the SHUTTLE KNOB to confirm the new cycle time.
-
Page 8: Pressure Mode
PRESSURE MODE Upon this display, User can access PRESSURE MODE by pushing the SHUTTLE KNOB. That will take you to THERAPY MODE SETTINGS. This display shows THERAPY MODE SETTINGS. *Note: The asterisk (*) shows which mode is currently selected. Turn the SHUTTLE KNOB to the right to select PRESSURE MODE. - Page 9 PRESSURE MODE (Continued) After chamber 4 the screen will read EXIT. Push the SHUTTLE KNOB to confirm. Access the second parameter, TREATMENT TIME, by turning the SHUTTLE KNOB to the right. Push the SHUTTLE KNOB to select TREATMENT TIME. You can increase the treatment time by turning the SHUTTLE KNOB to the right, and decrease time by turning to the left (treatment time can range from 15 –...
- Page 10 PRESSURE MODE (Continued) Access the fourth parameter, SKIP CHAMBER, by turning the SHUTTLE KNOB to the right. Push the SHUTTLE KNOB to select SKIP CHAMBER. Select to the chamber you wish to skip by turning the SHUTTLE KNOB to the right or left. (Select one only: Chamber 1, Chamber 2, Chamber 3, Chamber 4, or No skip).
- Page 11 Another screen will appear to notify you that the device is now locked. This screen will also show the password to unlock the device and then the revert back to the Start Menu. *Password is “DM” for Devon Medical www.devonmedicalproducts.com • 1100 First Avenue, Suite 202 King of Prussia, PA 19406 •...
-
Page 12: Lock/Unlock Device
UNLOCK DEVICE In order to unlock the device, hold down the SHUTTLE KNOB. Instead of taking you into the menu, a screen will appear to Input Password. Turn the SHUTTLE KNOB to select the first char- acter of the password, press down and select the second character. -
Page 13: Treatment
TREATMENT The pump will go through its initial prefill stage of reaching 10 mmHg in all 4 chambers. Each treatment will end after its set treatment time has elapsed. The user can also end the treatment at any time during a treatment session by pressing the STOP button on the front panel. - Page 14 NOTES www.devonmedicalproducts.com • 1100 First Avenue, Suite 202 King of Prussia, PA 19406 • 866.446.0092...
- Page 15 NOTES www.devonmedicalproducts.com • 1100 First Avenue, Suite 202 King of Prussia, PA 19406 • 866.446.0092...
