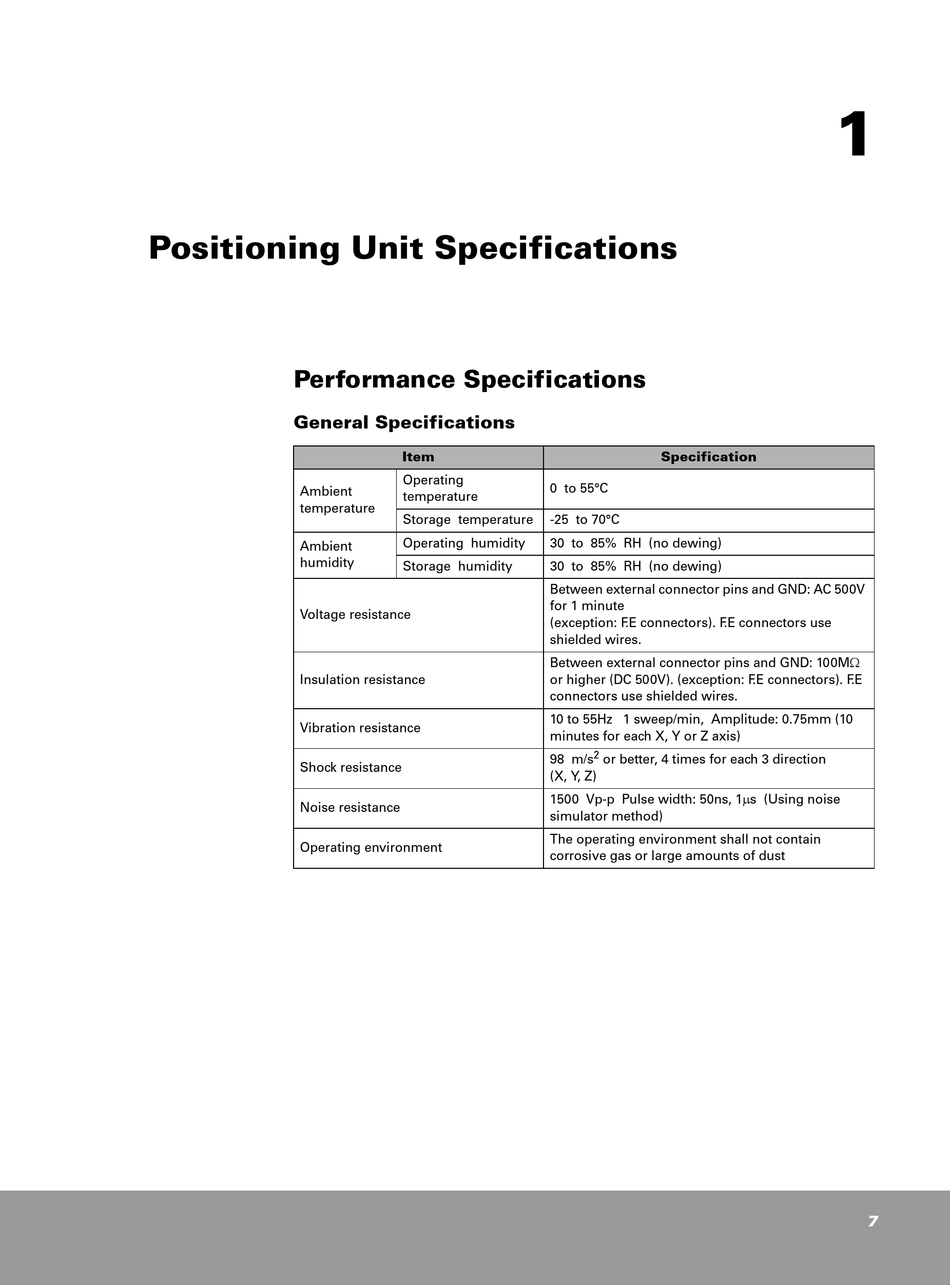

Positioning Unit Specifications

Performance Specifications

General Specifications
Ambient
temperature
Ambient
humidity
Voltage resistance
Insulation resistance
Vibration resistance
Shock resistance
Noise resistance
Operating environment
Item
Operating
0 to 55°C
temperature
Storage temperature -25 to 70°C
Operating humidity 30 to 85% RH (no dewing)
Storage humidity 30 to 85% RH (no dewing)
Between external connector pins and GND: AC 500V
for 1 minute
(exception: F .E connectors). F .E connectors use
shielded wires.
Between external connector pins and GND: 100M
or higher (DC 500V). (exception: F .E connectors). F .E
connectors use shielded wires.
10 to 55Hz 1 sweep/min, Amplitude: 0.75mm (10
minutes for each X, Y or Z axis)
98 m/s
(X, Y, Z)
1500 Vp-p Pulse width: 50ns, 1s (Using noise
simulator method)
The operating environment shall not contain
corrosive gas or large amounts of dust
Specification
2
or better, 4 times for each 3 direction
