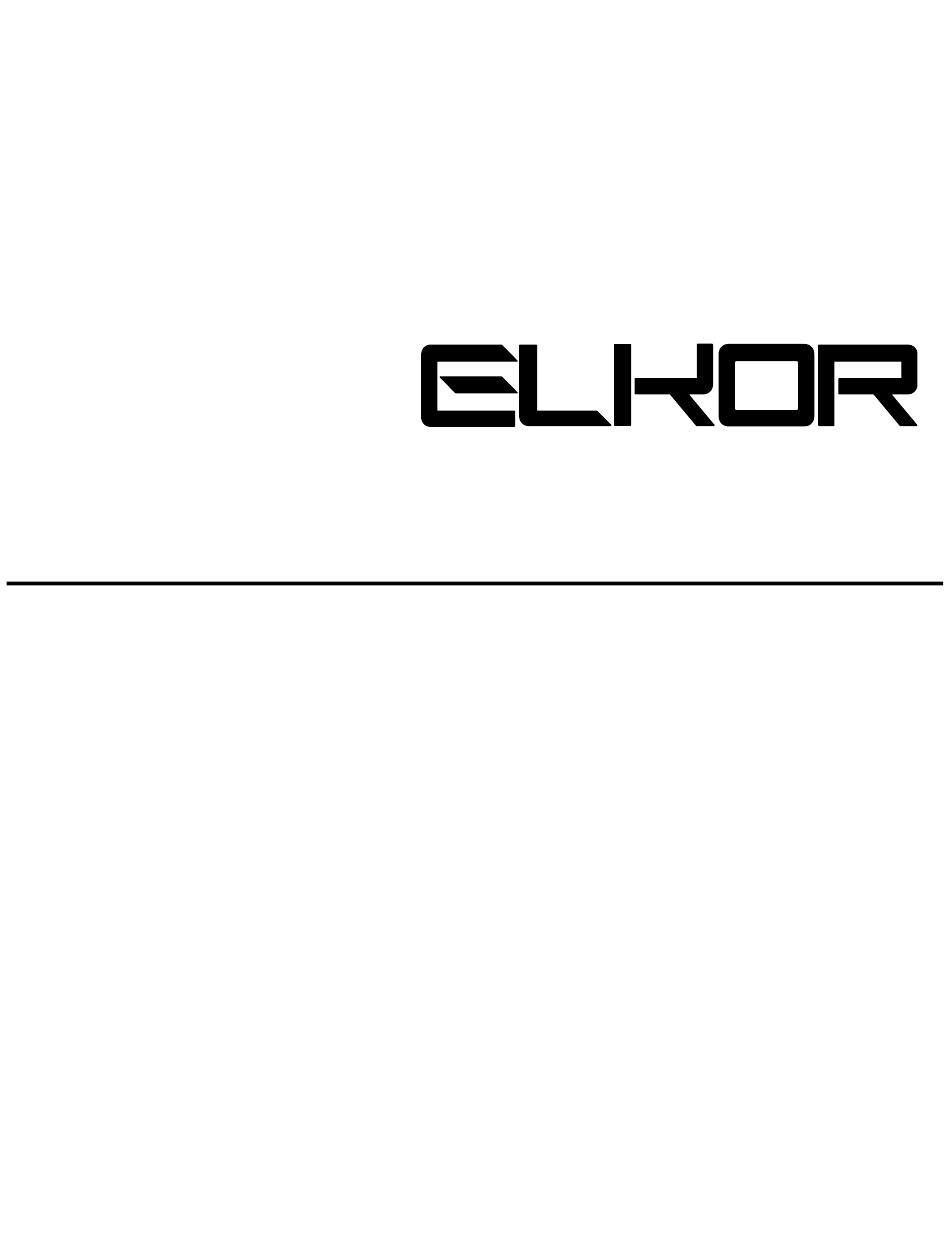

  • Page 1 Technologies Inc. WattsOn-MCM Installation & User Guide...
  • Page 2 NEITHER ALLOWS NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY SUCH OBLIGATION OR LIABILITY. Although the information contained in this document is believed to be accurate, Elkor assumes no responsibility for any errors which may exist in this publication.

  • Page 3: Table Of Contents

    3.11. Changing the Administrator Password ......................19 3.12. Reading Registers ............................19 3.13. Posting Data to the Elkor Cloud ........................19 3.14. Posting Data to your own Web Server (Advanced Feature) ................20 3.15. Customizing the Web Posting Format (Advanced Feature) ................21 The Modbus Protocol ..........................
  • Page 4 6.12. Report Slave ID............................. 37 Appendix B, CT Wiring ..........................39 7.1. Single Phase Installation ..........................39 7.2. Two / Split Phase Installation ........................... 40 7.3. Three Phase Installation ..........................41 ELKOR TECHNOLOGIES INC. - Page 4 - MCM – USER MANUAL...

  • Page 5: Introduction

    The WattsOn-MCM may be purchased with as few or as many nodes as needed, and additional cards can be added at a later date if additional circuits are needed. Nodes are "hot-pluggable", meaning they can be added or removed without powering off the device, ensuring metering is not interrupted.

  • Page 6: Visual Guide

    1.5. Visual Guide The following image illustrates the different components and ports of the WattsOn-MCM, which are referred to in this section and throughout the document. 24VDC Metering 100mA OUTPUT Node WMC-COMM HMI Interface Metering Master Module Node PCI Slot...

  • Page 7: Connectors

    Indicates communication between the master device and the voltage isolator module. Va, Vb, Bottom Red/Green Indicates a voltage on the voltage channel inputs above a minimum threshold (5% of the full-scale voltage). ELKOR TECHNOLOGIES INC. - Page 7 - MCM – USER MANUAL...

  • Page 8: Status Indicator Codes

    This can happen when communication with the nodes has failed, or the voltage cannot be read. Ensure that the WattsOn-MCM-V is on and its status LED is green, and that FAULT the status LEDs of all of the installed cards are solid green.

  • Page 9: Buttons

    Automatically configured via AutoIP if DHCP is unavailable Subnet Mask Default Gateway Passwords Username admin Password (default) admin RS-485/Modbus Serial mode Modbus/RTU Baud rate 115200 Parity None Data bits Stop bits ELKOR TECHNOLOGIES INC. - Page 9 - MCM – USER MANUAL...

  • Page 10: Installation

    2.1. Overall Procedure When working with the WattsOn-MCM device for the first time, especially if Wi-Fi is required, it is recommended to first setup and verify communication between the WattsOn-MCM and a PC or mobile device at a convenient location, before live voltages and current transformers are connected in their intended, final location.

  • Page 11: Network Discovery And Network Settings

    2.3. Network Discovery and Network Settings By default, the WattsOn-MCM is configured to automatically obtain its IP address via DHCP if available, and with AutoIP otherwise. If you are the network administrator, you may be able to determine the device’s IP address by consulting your router’s user interface.
  • Page 12 USB key or similar device if it must be used in a field location that does not have full internet access. The utility will automatically search for any Elkor devices present on the network. If the device does not show up within a Find few seconds, you can have the program send subsequent broadcasts by clicking the button.

  • Page 13: Enclosure Mounting

    2.5. Node Installation Each node can meter up to three independent circuits, and up to 20 can be installed in a single WattsOn-MCM, giving a total of 60 independent circuits. Each node plugs in to one of the 20 PCI slots on the WattsOn-MCM, numbered 1 through 10 on the left side, and 11 through 20 on the right side.

  • Page 14: Current Inputs

    In some cases, the voltage may be tapped off of existing fuses or breakers. If this is not possible, Elkor recommends a 1A or lower fuse (fast acting) for protection of the installation wiring.

  • Page 15: The Web Interface

    3.1. Accessing the Web Interface To access the web interface for the WattsOn-MCM, open a web browser and direct it to the device’s IP address. (To discover the device’s IP address for the first time, refer to Section 2.3Network Discovery and Network Settings, p.

  • Page 16: Monitor Page

    This page allows you to configure custom data points to display. These data points can include any reading that the WattsOn-MCM provides, or it can be a sum, average, or other mathematical combination of any of those points. For example, it may be convenient to display the total current in channels 1 through 5, or the average power consumption of channels 2, 4, and 6.

  • Page 17: Posting Status

    For details on configuring the web posting feature, as well as getting a more detailed status response, see 3.14, Posting Data (p. 20). ELKOR TECHNOLOGIES INC. - Page 17 - MCM – USER MANUAL...

  • Page 18: Information Page

    2. In the Web File Explorer box, click on the red “X” next to the name of the desired file to delete. 3.8.2. To upload a file using the browser 1. Click “Filesystem” on the left-hand side of the web interface to access the filesystem configuration page. ELKOR TECHNOLOGIES INC. - Page 18 - MCM – USER MANUAL...

  • Page 19: Network Page

    3.13. Posting Data to the Elkor Cloud You can have your device post to the Elkor Cloud website to easily view graphs of data from any web browser anywhere in the world. A video tutorial on the Elkor Cloud is available at: https://www.youtube.com/watch?v=iW_6Wzvl1jE.

  • Page 20: Posting Data To Your Own Web Server (Advanced Feature)

    6. If you have not yet created an Elkor Cloud account, click the link. Add this device 7. Click the link to add your device to your Elkor Cloud account. The Elkor Cloud site will prompt you to login if necessary. 3.14. Posting Data to your own Web Server (Advanced Feature) The device can periodically transmit data to a local or remote web site.

  • Page 21: Customizing The Web Posting Format (Advanced Feature)

    Search 3. Enter in the field. Value ntp_server_0 ntp_server_1 4. Up to three NTP servers can be entered in the column of the table, next to ntp_server_2 ELKOR TECHNOLOGIES INC. - Page 21 - MCM – USER MANUAL...
  • Page 22 The device has four megabytes of internal storage available for buffered posts, with each post being approximately the size of the posting template. Buffered posts can be viewed by exploring the /buffer directory in the Filesystem; see 3.8, Filesystem Page. ELKOR TECHNOLOGIES INC. - Page 22 - MCM – USER MANUAL...

  • Page 23: The Modbus Protocol

    A Modbus slave device defines blocks of “registers” that contain information, each with a particular address. Each register contains a 16-byte field of data which can be read by the master device. The registers defined by the WattsOn-MCM are described later in this section.
  • Page 24 2 (0x02) Standard (Basic) 1.00 (for example) VendorUrl 3 (0x03) Standard (Regular) http://www.elkor.net ProductName 4 (0x04) Standard (Regular) WattsOn-MCM Communication Interface ModelName 5 (0x05) Standard (Regular) WMC-COMM UserApplicationName 6 (0x06) Standard (Regular) Elkor Firmware 4.1.2. Register Addressing Conventions There are several different conventions for specifying the address of a particular register. Various conventions are used in different software programs, PLCs, and other devices.
  • Page 25 8-bits contain the second. Only characters in the range 0x20-0x7E are used. Unused characters read as 0. Bitmap Each binary digit (bit) or group of digits represents something described in the register's description. ELKOR TECHNOLOGIES INC. - Page 25 - MCM – USER MANUAL...

  • Page 26: Basic Information Registers

    4.2. Basic Information Registers The following registers provide basic information about the overall WattsOn-MCM system. Offset Register Register Type Name Description Count Length (bytes) 0x2000 Serial Number 0x2002 Firmware Version Divide by 100 to get the proper decimal number. 0x2003...

  • Page 27: Universal Card Parameters

    (entries 1 through 20) or module (entry 21 corresponds to the WattsOn-MCM-V). Most entries contain only 1 register, but some contain more than one. If a node is not installed, it will return 0 (for signed and unsigned integers), the null character (for strings), or QNaN (for floating-point values).

  • Page 28: Node Electrical Parameters

    0x5100 Active Power (kW) 0x5200 Power Factor 0x5300 Energy (kWh) 0x5600 Primary+Secondary CT Ratios. Each entry contains two values; a ratio primary and a ratio secondary 0x5700 Phase Compensation ELKOR TECHNOLOGIES INC. - Page 28 - MCM – USER MANUAL...

  • Page 29: Voltage Parameters

    PT Ratio B Primary 0x627B PT Ratio B Secondary 0x627C PT Ratio C Primary 0x627D PT Ratio C Secondary 0x6378 Voltage Angle AB 0x637A Voltage Angle BC 0x637C Voltage Angle CA ELKOR TECHNOLOGIES INC. - Page 29 - MCM – USER MANUAL...

  • Page 30: Upgrades And Other Procedures

    After 10 seconds have elapsed, the red fault light will begin to blink. 2. Release the button 5.7. Changing the Firmware The WattsOn-MCM master device, each node, and the WattsOn-MCM-V all have upgradable firmware. ELKOR TECHNOLOGIES INC. - Page 30 -...
  • Page 31 5.7.2. Changing the Firmware of a Node or the WattsOn-MCM-V For this procedure, to free Elkor tool Modbus Commander must be used. It can be downloaded from Elkor's web site, http://elkor.net/bin/mbcmdr_lite.exe. Note that energy accumulation will be paused on any node being updated while this process completes.

  • Page 32: Appendix A, Modbus Protocol Details

    6. APPENDIX A, MODBUS PROTOCOL DETAILS Modbus RTU is a protocol used to read and write information from a variety of devices such as the WattsOn-MCM. Generally, the details of the protocol are handled by the Modbus master software or device, so that the user need not be familiar with their implementation.

  • Page 33: Read Holding Registers

    Register Count Byte First Value Address Code Count … 1-63 0-65535 1-123 2-246 Hi-byte Lo-byte (CRC) (1 byte) (1 byte) (2 bytes) (2 bytes) (1 byte) (2 bytes) (2 bytes) ELKOR TECHNOLOGIES INC. - Page 33 - MCM – USER MANUAL...

  • Page 34: Mask Write Register

    (1 byte) (1 byte) (2 bytes) (2 bytes) Note: The response format for Read/Write Multiple Registers is identical to that of Read Holding Registers, aside from the function code. ELKOR TECHNOLOGIES INC. - Page 34 - MCM – USER MANUAL...

  • Page 35: Diagnostic Functions

    (1 byte) (1 bytes) (2 bytes) (2 bytes) Response: Modbus Function Sub-function Data Address Code Code 1-63 Counter value (CRC) (1 byte) (1 byte) (1 bytes) (2 bytes) (2 bytes) ELKOR TECHNOLOGIES INC. - Page 35 - MCM – USER MANUAL...
  • Page 36 (1 byte) (1 bytes) (2 bytes) (2 bytes) Response: Modbus Function Sub-function Data Address Code Code 1-63 Counter value (CRC) (1 byte) (1 byte) (1 bytes) (2 bytes) (2 bytes) ELKOR TECHNOLOGIES INC. - Page 36 - MCM – USER MANUAL...

  • Page 37: Get Comm Event Counter

    0 is transmitted after the last character. Example String: “Elkor Technologies W2-M1-mA Hardware 1.00 Firmware 1.00”. While in bootloader mode, the string returned contains the bootloader version, for example, “Elkor Technologies Bootloader 1.00”. The structure of its frames is as follows:...
  • Page 38 ELKOR TECHNOLOGIES INC. - Page 38 - MCM – USER MANUAL...

  • Page 39: Appendix B, Ct Wiring

    HMI Interface ETHERNET RESET ACTIVITY STATUS FAULT SERIAL REBOOT 24VDC Power Supply 100~240 24VDC 100~240 100-240Vac to Power Supply Fuse or Breaker (1A Recommended, otherwise smallest practical) LOAD SOURCE ELKOR TECHNOLOGIES INC. - Page 39 - MCM – USER MANUAL...

  • Page 40: Two / Split Phase Installation

    100~240 100-240Vac to Power Supply Location of CTdepends on circuit being measured Fuses or Breaker(s) Note of circuit phase must (1A Recommended, be maintained. otherwise smallest practical) LOAD SOURCE ELKOR TECHNOLOGIES INC. - Page 40 - MCM – USER MANUAL...

  • Page 41: Three Phase Installation

    100~240 100-240Vac to Power Supply Location of CTdepends on circuit being measured Fuses or Breaker(s) Note of circuit phase must (1A Recommended, be maintained. otherwise smallest practical) LOAD SOURCE ELKOR TECHNOLOGIES INC. - Page 41 - MCM – USER MANUAL...
