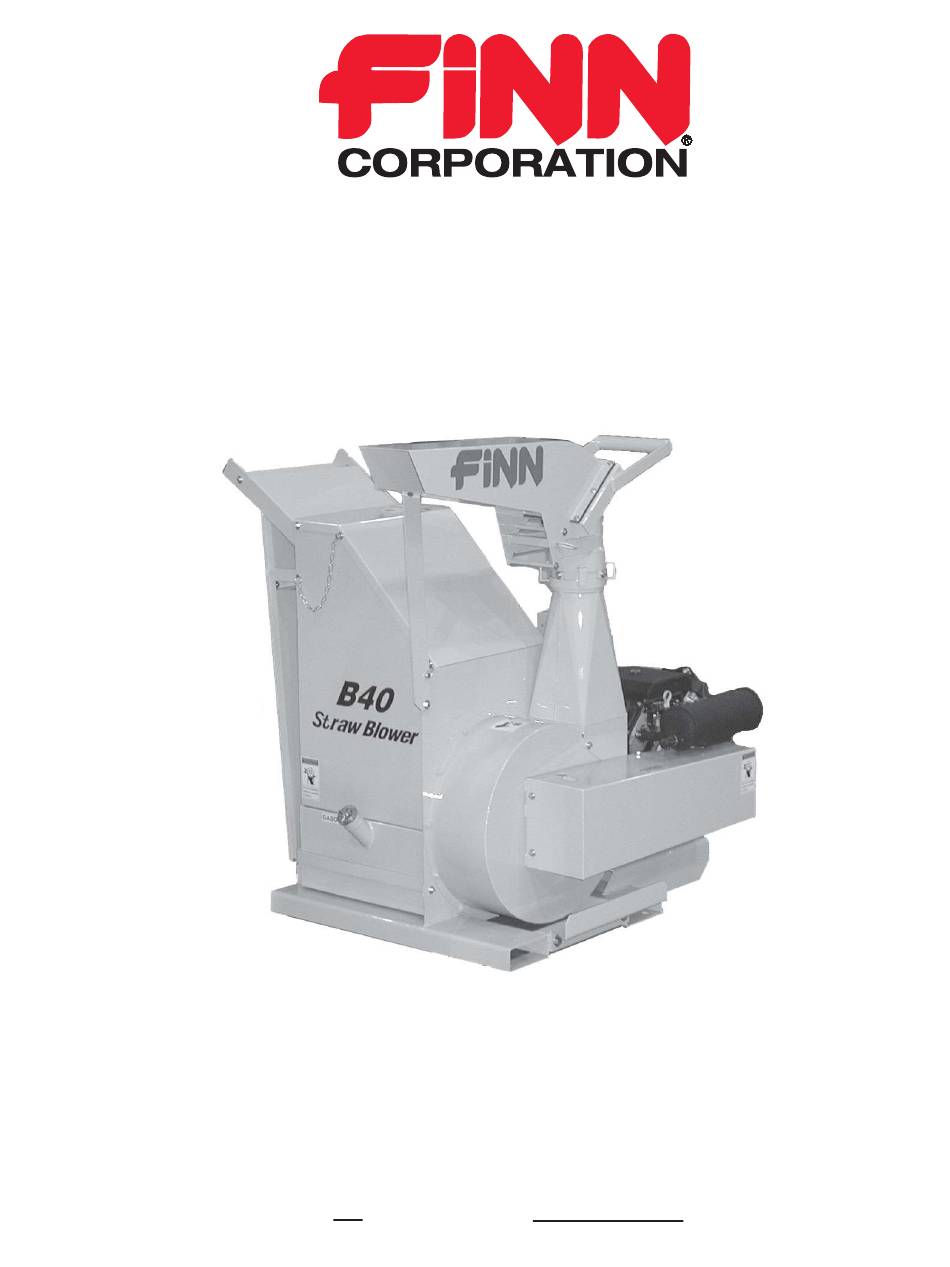

- Page 1 9281 LeSaint Drive • Fairfield, Ohio 45014 Phone (513) 874-2818 • Fax (513) 874-2914 Sales:1-800-543-7166 B-40 Mulch Spreader Parts and Operator’s Manual Model SD Serial No. _____________ LBB40-SD...
-
Page 3: Table Of Contents
INDEX Safety First ..........1 Safety Summary Section . -
Page 5: Safety First
SAFETY FIRST With any piece of equipment, new or used, the most important part of its operation is SAFETY! Finn Corporation encourages you and your employees to familiarize yourselves with your new equipment and to stress safe operation. The first four pages of this manual are a summary of all the main safety aspects associated with this unit. -
Page 6: Safety Summary Section
The FINN MULCH SPREADER is intended to be used as an applicator of vegetative hay or straw mulches onto the seedbed. Its use with other products or for other applications must be by approval of the product’s manufacturer. - Page 7 It is recommended that only authorized genuine machine. Tag the engine FINN replacement parts be used on the machine. operating area to show that the machine is being Make certain that all decals on the machine are serviced.
- Page 8 CURRENT SET OF SAFETY DECALS W A R N I N G THROWN OBJECT HAZARD KEEP AWAY Wear eye protection To prevent serious injury or death from Do not operate thrown objects: around operating Stay away from discharge area during without guards operation.
-
Page 9: Definition Of Mulching
TOWING VEHICLE: The truck used to tow the Finn B-40 Mulch Spreader should have a bed large enough to carry the quantity of mulch needed for economical operation. The truck must be equipped with a 2" ball rated 3000 lbs. -
Page 10: Pre-Start Check
PRE-START CHECK: SAFETY CHECK TO INSURE OPERATOR SAFETY: 1. A. Skid Unit - Check condition of all mounting hardware securing the Mulch Spreader to the truck bed. B. Trailer Unit - Inspect hitch, safety chains, lights, brakes and breakaway switch. 2. -
Page 11: Crew Members And Their Duties
BLOWER DISCHARGE: The B-40 Mulch Spreader should be towed to a point approximately 20 ft (6 m) from the area where the mulch is to be applied. The operator elevates the discharge spout about 10º above the plain of the seedbed so that the mulch floats onto the seedbed. -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE: AFTER FIRST 4 - 8 HOURS OPERATION: 1. Check and adjust belt. Proper tension is obtained when 3/8" (1cm) of belt deflection is obtained at the center of the belt span with a force of 5 (used belt) to 7 (new belt) pounds (2.2 to 3.2 kg). 2. -
Page 13: Lubrication And Fluids Chart
LUBRICATION AND FLUIDS CHART Ref. No. Location Lubricant Frequency Number Grease drive shaft bearings Weekly Check fuel tank level Daily Check engine oil level Daily Check air cleaner Daily Service pre-cleaner element Every 25 Hours Change air cleaner element Every 100 Hours Change engine oil &... -
Page 14: Notes
NOTES... -
Page 15: Parts Manual Section
B-40 Mulch Spreader Parts Manual Model SD... -
Page 17: Blower Shaft Assembly
BLOWER SHAFT ASSEMBLY Ref. No. Part No. Description No. Req'd. 035033 Blower Shaft Bearing 035021 Shaft Pad 035104 Blower Blade Weldment 035099 Blower Bushing w/Key 190125-70 Blower Blade Key 035081 Beater Chain Assembly 022487 5/16 Flex Lock Pivot Nut 020119 Hardened Shoulder Bolt 035080 Breaker Hub Weldment... - Page 18 WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE...
-
Page 19: Discharge Head Assembly
DISCHARGE HEAD ASSEMBLY Ref. No. Part No. Description No. Req'd 035115 Discharge Elbow 035111 Discharge Head 035117 Discharge Head Handle 035118 Pivot Pin 035114-01 Discharge Seal - Rubber 035114-02 Discharge Backing Seal - Rubber 035116-03 Head Stop Tube 022962 Hair Pin - Cotter X0420 1/4"... - Page 20 NOTE: With Guard Removed WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE...
-
Page 21: Beater Box And Feed Chute
BEATER BOX AND FEED CHUTE Ref. No. Part No. Description No. Req'd 035123 Gasoline Fuel Tank 035012-02 Fuel Tank Holder 035004-01 Feed Chute Support 035109-02 Shaft Guard Cover 035109-01 Shaft Cover Guard Base 035004-02 Chute Gusset 035113-01 Feed Chute Extension 035113-02 Feed Chute 035018... -
Page 22: Control Box Wiring
CONTROL BOX WIRING Part No. Description No. Req'd 035128 Control Box Wiring 035098 Power Pulse Flasher 052112 Toggle Switch 080526 Toggle Switch Boot FW71584 Idec Timer FW71585 Idec Timer Base FW71749-02 Relay 035130 6 Ga. Black Ground Cable 035127 Battery 035073 Electric Clutch 035103... -
Page 23: Trailer Wiring
WHITE BROWN BLACK BROWN BLACK WHITE BLACK BLACK BREAK- AWAY GROUND BATTERY "+" WHITE BROWN TRAILER WIRING Part No. Description No. Req'd 035060 Trailer Wiring 060069 Plug & Recepticle 005137 Left-Hand Taillight 005138 Right-Hand Taillight WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE... -
Page 24: Trailer Assembly
TRAILER ASSEMBLY Ref. No. Part No. Description No. Req'd 1 LH 005137 Left-Hand Taillight 1 RH 005138 Right-Hand Taillight 055503 Rubber Torsion Axle 055493 Rim & Tire Assembly 031189 Jack 020970 Decal "Caution Do Not ..." 031228 Decal "Saftey Chain ..." 031227 Decal "Always Inspect..."... -
Page 25: Axle & Hub Assembly
AXLE & HUB ASSEMBLY Ref. No. Part No. Description No. Req'd 055503 Axle Assembly WL10-9 Grease Seal WL31-31-2 Inner Bearing Cone WL31-31-1 Inner Bearing Cup WL31-31-1 Outer Bearing Cup WL31-31-2 Outer Bearing Cone WL6-1 Spindle Nut WL21-3 Grease Cap WL19-2 Cotter Pin WL8-257-4 Hub &... -
Page 26: Brake Assembly
BRAKE ASSEMBLY Ref. No. Part No. Description No. Req'd WL23-47 Left-Hand Brake Assembly WL23-48 Right-Hand Brake Assembly WL36-36-4 Backing Plate Assembly WL46-23 Shoe Hold Down Spring WL71-45 Shoe & Linkage Kit: WL40-49 Secondary S & L WL40-125 Primary S & L WL46-24 Retractor Spring WL47-29-4... -
Page 27: Decals
Decal "Danger Rotating..." 035106 Decal "Operating Instructions..." 035101 Decal "Caution Area..." 012278 Decal "Danger Hot Exhaust" 011690 Finn Name Plate 020976 Decal "Patent Infringement" 012260 Mantain Saftery Decal Plate WHEN ORDERING PARTS, BE SURE TO STATE SERIAL NUMBER OF MACHINE... -
Page 28: Warranty
Finn to verify said nonconformity and verify the continuing existence of the warranty period, Finn will provide a new part or a repaired part, whichever Finn elects, to replace the part found to be defective. Such parts will be provided without charge to the Purchaser during normal working hours at a place of business of a Finn dealer or other establishment authorized by Finn to effect said repairs or replacements, but Purchaser shall bear all costs of transporting the product to and from such place of business or establishment.
