Summary of Contents for SR STAGE RIGHT 612830
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ........................... 3 INTRODUCTION ......................................4 FEATURES ........................................4 CUSTOMER SERVICE ....................................5 PACKAGE CONTENTS .................................... 5 CONTROLS AND MENU DISPLAY ..............................6 MENU FUNCTIONS ....................................7 MASTER/SLAVE MODE ..................................8 BLIND MODE ........................................ 8 9-CHANNEL DMX MODE ..................................9 12-CHANNEL DMX MODE ................................. -
Page 3: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES • This device is intended for indoor use only. • Do not expose this device to water or moisture of any kind. If moisture does get in or on the device, immediately unplug it from the power outlet and allow it to fully dry before reapplying power. -
Page 4: Introduction

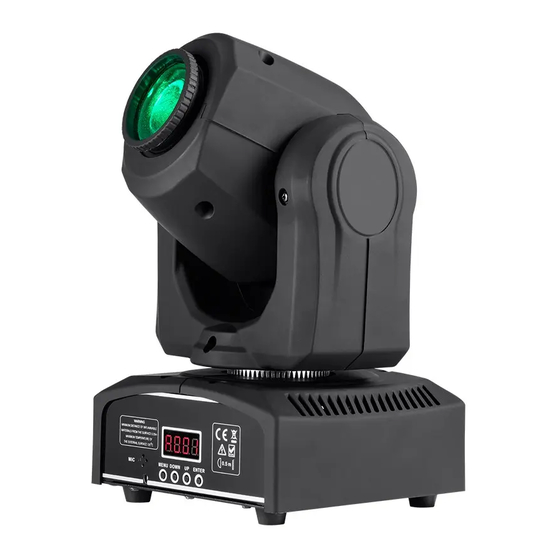

INTRODUCTION Thank you for purchasing this stage light! This moving head beam light uses a high-power, 30-watt white LED. It features an internal color wheel with 7 color filters (Orange, Cyan, Lavender, Yellow, Green, Blue, Red, and Open/White), as well as a gobo wheel with 7 gobo patterns. It has 3 built-in programs, plus 9-channel and 12-channel DMX modes. -
Page 5: Customer Service
CUSTOMER SERVICE The Monoprice™ Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 6: Controls And Menu Display
CONTROLS AND MENU DISPLAY The 4-digit LED display indicates the mode and the value for the selected function or mode. • Press the MENU button as a "back" button when editing an entry. If already at the top level, press the MENU button to return to the top of the menu list (A###). •... -
Page 7: Menu Functions
MENU FUNCTIONS Function Values Description Addr A001-A512 DMX starting address. 12Ch 19-channel DMX mode. CHnd 9-channel DMX mode. nASt Master mode. Slave mode 1. With this mode, the fixture will exactly SLnd duplicate the Master fixture. Slave mode 2. With this mode, the fixture will duplicate the Master fixture, but with all motion inverted. -
Page 8: Master/Slave Mode
Function Values Description The LED display is not inverted. diSP The LED display is inverted. X motor (pan) normal operation. rPAn X motor (pan) inverted. Y motor (tilt) normal operation. rTiL Y motor (tilt) inverted. rESt System reset. MASTER/SLAVE MODE This fixture can be configured as a Master (nASt), Slave 1 (SL1), or Slave 2 (SL2). -
Page 9: 9-Channel Dmx Mode
9-CHANNEL DMX MODE The following table lists the functionality of each channel in 9-channel DMX mode. DMX Value Channel Function Range 000-255 Pan control 000-255 Tilt control 000-009 Color wheel open (white) 010-019 Color wheel orange 020-029 Color wheel cyan 030-039 Color wheel lavender 040-049... - Page 10 DMX Value Channel Function Range 032-039 Gobo wheel 4 040-047 Gobo wheel 5 048-055 Gobo wheel 6 056-063 Gobo wheel 7 064-071 Gobo wheel open (no pattern) 072-079 Gobo wheel 1 shaking, from slow to fast 080-087 Gobo wheel 2 shaking, from slow to fast 088-095 Gobo wheel 3 shaking, from slow to fast 096-103...
-
Page 11: 12-Channel Dmx Mode
DMX Value Channel Function Range 210-234 Sound mode 3 235-255 Sound mode 4 000-020 No effect 021-100 Pan motor auto mode 101-200 Tilt motor auto mode 201-249 Pan/Tilt motor auto mode 250-255 Reset (hold for 5 seconds) 12-CHANNEL DMX MODE The following table lists the functionality of each channel in 12-channel DMX mode. - Page 12 DMX Value Channel Function Range 030-039 Color wheel lavender 040-049 Color wheel yellow 050-059 Color wheel green 060-069 Color wheel blue 070-079 Color wheel red 080-089 Two color 1 red + blue 090-099 Two color 2 blue + green 100-109 Two color 3 green + yellow 110-119 Two color 4 yellow + lavender...
- Page 13 DMX Value Channel Function Range 088-095 Gobo wheel 3 shaking, from slow to fast 096-103 Gobo wheel 4 shaking, from slow to fast 104-111 Gobo wheel 5 shaking, from slow to fast 112-119 Gobo wheel 6 shaking, from slow to fast 120-127 Gobo wheel open (no pattern) 128-255...
-
Page 14: Technical Support
Check the website for support times and links. SPECIFICATIONS 612830 Light Source 1x 30-watt white LED Beam Angle 13°... -
Page 15: Regulatory Compliance
REGULATORY COMPLIANCE Notice for FCC This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 16: Notice For Industry Canada
Notice for Industry Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™, Stage Right™, the Stage Right logo, and all Monoprice logos are trademarks of Monoprice Inc.
