Summary of Contents for SR STAGE RIGHT 612601
-
Page 2: Table Of Contents
CONTENTS SAFETY WARNINGS AND GUIDELINES ................ 3 INTRODUCTION ..........................4 CUSTOMER SERVICE ........................4 PACKAGE CONTENTS ......................... 5 MENU CONTROLS .......................... 5 MENU FUNCTIONS ........................6 DMX MODES ............................8 DMX Mode A (2-channel) ....................8 DMX Mode d (3-channel) ....................10 DMX Mode C (4-channel) .................... -
Page 3: Safety Warnings And Guidelines
612601 light bars together. Do not chain more than 32 units together onto the same circuit. Do not plug anything other than another 612601 light bar into the power outlet. This device has no user serviceable parts. Do not attempt to ... -
Page 4: Introduction
Keep the original packaging material for use when transporting the device. If the device will not be used for any lengthy period of time, it should be unplugged from the wall. When installing this device, ensure that the mount is ... -
Page 5: Package Contents
1x AC power cable (IEC 60320 C13 to NEMA 5-15) 1x User's manual NOTE: Your Monoprice 612601 Light Bar has an AC power output outlet, which allows you to chain multiple 612601 light bars together. Do not chain more than 32 units together onto the same circuit. -
Page 6: Menu Functions
INC: Increases the displayed value for the selected menu function. DEC: Decreases the displayed value for the selected menu function. MENU FUNCTIONS This light bar has the following built-in functions, modes, and programs. Note that in the following list, ### and ## are used as 3-digit and 2-digit placeholders, indicating that these digits are not fixed and can be modified within the adjustment range. - Page 7 Manual Blue Brightness (dim b### 000 ~ 255 Intensity to bright) Strobe (works with Strobe speed (0 FS## 00 ~ 20 manual color) ~ 20 Hz) Program 1 Color Speed (slow to 1E## 00 ~ 20 Scan fast) Program 2 Color Speed (slow to 2E## Scan with Block...
-
Page 8: Dmx Modes
Program 11 Speed (slow to 3F## Multicolor Scan 00 ~ 20 fast) Block Build Program 12 8-Way Speed (slow to 4F## 00 ~ 20 Color Mix/Fade fast) Program 13 Pattern Speed (slow to EF## 00 ~ 20 fast) Sound Activated Sensitivity (low SU## 00 ~ 20... - Page 9 060 ~ 071 Purple 072 ~ 083 Cyan 084 ~ 095 White 096 ~ 107 Program 1 108 ~ 119 Program 2 120 ~ 131 Program 3 132 ~ 143 Program 4 144 ~ 155 Program 5 156 ~ 167 Program 6 168 ~ 179 Program 7...
-
Page 10: Dmx Mode D (3-Channel)
DMX Mode d (3-channel) This mode is indicated by the use of the letter in the first position on the LED display. Channel DMX Values Function 000 ~ 255 Red Dimming 000 ~ 255 Green Dimming 000 ~ 255 Blue Dimming DMX Mode C (4-channel) This mode is indicated by the use of the letter in the first... -
Page 11: Dmx Mode E 4-Zone Split (14-Channel)
DMX Mode E 4-Zone Split (14-channel) This mode is indicated by the use of the letter in the first position on the LED display. Channel DMX Values Function 000 ~ 255 Zone 1 Red Dimming 000 ~ 255 Zone 1 Green Dimming 000 ~ 255 Zone 1 Blue Dimming 000 ~ 255... -
Page 12: Dmx Mode P (7-Channel)
DMX Mode P (7-channel) This mode is indicated by the use of the letter in the first position on the LED display. Channel DMX Values Function 000 ~ 255 Red Dimming 000 ~ 255 Green Dimming 000 ~ 255 Blue Dimming 000 ~ 011 012 ~ 023 024 ~ 035... -
Page 13: Dmx Mode H 8-Zone Split (26-Channel)
204 ~ 215 Program 10 216 ~ 227 Program 11 (overrides channels 228 ~ 239 Program 12 1, 2, 3, 6, 240 ~ 251 Program 13 & 7) 252 ~ 255 Sound Activated 000 ~ 255 Speed/Sensitivity (for channel 4) 000 ~ 255 Strobe (0 ~ 20 Hz) 000 ~ 255... -
Page 14: Master/Slave Operation
000 ~ 255 Zone 4 Green Dimming 000 ~ 255 Zone 4 Blue Dimming 000 ~ 255 Zone 5 Red Dimming 000 ~ 255 Zone 5 Green Dimming 000 ~ 255 Zone 5 Blue Dimming 000 ~ 255 Zone 6 Red Dimming 000 ~ 255 Zone 6 Green Dimming 000 ~ 255... - Page 15 Notes: If the daisy chain is longer than 60 meters or if it contains 20 or more light fixtures, a DMX signal amplifier should be used to ensure that all devices get valid instruction signals. The last device in any DMX chain must be terminated using a DMX Terminator.
-
Page 16: Dmx Termination
DMX TERMINATION As with all DMX devices, the last unit in any chain must have a DMX terminator connected to the DMX output. If using just a single light, connect a DMX terminator to the DMX output. A DMX terminator is a DMX plug with a 120-ohm, 1/4-watt resistor soldered between pins 2 and 3. -
Page 17: Technical Support
Problem: The light will not execute DMX instructions. Solutions: Check to ensure that the light is connected to the controller via a DMX cable. Check to ensure that the DMX chain is properly terminated. Check to ensure that the DMX cable is good; swap out a ... -
Page 18: Specifications

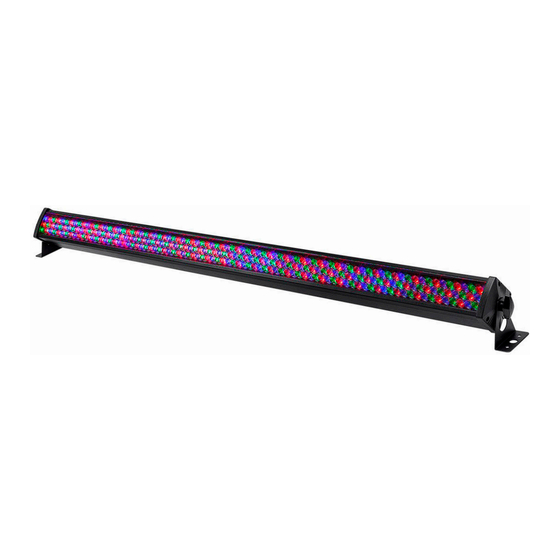

SPECIFICATIONS Model 612601 252 high brightness 10mm LEDs LEDs (84 red, 84 green, 84 blue) Control Signal DMX512, master/slave Stand alone, sound activated, Control Modes DMX512, master/slave # of DMX Channels 2, 3, 4, 7, 14, or 26 Beam Angle 40°... - Page 19 interference received, including interference that may cause undesired operation. Modifying the equipment without Monoprice’s authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense.
-
Page 20: Notice For Industry Canada
Notice for Industry Canada This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. EU Conformity with applicable directives This equipment complies with the essential requirements listed below: EMC Directive 2004/108/EC ...
