Summary of Contents for SR STAGE RIGHT 612970

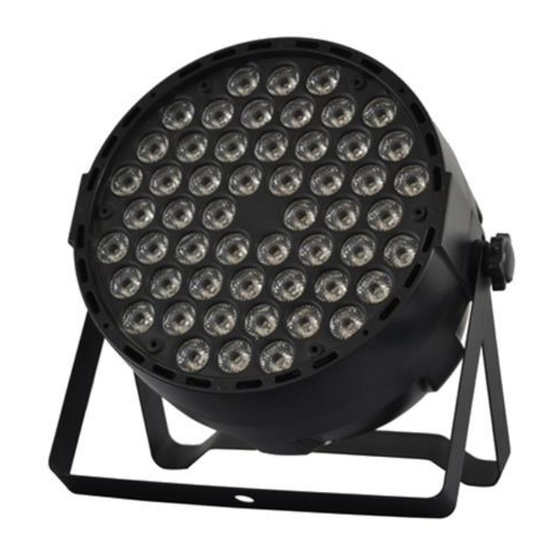

- Page 1 Stage Right Party Wash FX 1-Watt x54 LED (RGB) with Pie Control P/N 612970 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. This device is intended for indoor use only. ... - Page 3 Never unplug the unit by pulling on the power cord. Always grasp the connector head or adapter body. Ensure that power is turned off and disconnected before making any electrical connections. Remove the battery from the controller if it will go unused for a lengthy period of time.
-
Page 4: Customer Service
CUSTOMER SERVICE The Monoprice Customer Service department is dedicated to ensuring that your ordering, purchasing, and delivery experience is second to none. If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com during normal business hours (Mon-Fri: 5am-7pm PT, Sat-Sun: 9am- 6pm PT) or via email at support@monoprice.com... -
Page 5: Menu Modes
Press and hold the DOWN button to rapidly decrease the displayed value. The list will cycle back to the end after the minimum value is reached. When in DMX mode, press the ENTER button to toggle between the starting channel address and the number of number of channels to use. -
Page 6: Dmx Control
DMX CONTROL 4-Channel Mode CH # Value Range Function 0-255 Master dimming 0-255 Red dimming 0-255 Green dimming 0-255 Blue dimming 8-Channel Mode CH # Value Range Function 0-255 Master dimming 0-255 Red dimming 0-255 Green dimming 0-255 Blue dimming 0-255 Strobe (slow to fast) 0-15... - Page 7 11-Channel Mode CH # Value Range Function 0-255 Master dimming 0-255 Pie section 1 color macro function 0-255 Pie section 2 color macro function 0-255 Pie section 3 color macro function 0-255 Pie section 4 color macro function 0-255 Pie section 5 color macro function 0-255 Pie section 6 color macro function 0-255...
- Page 8 23-Channel Mode CH # Value Range Function 0-255 Master dimming 0-255 Pie section 1 red dimming 0-255 Pie section 1 green dimming 0-255 Pie section 1 blue dimming 0-255 Pie section 2 red dimming 0-255 Pie section 2 green dimming 0-255 Pie section 2 blue dimming 0-255...
-
Page 9: Technical Support
0-15 Manual dimming 16-127 Color macro function 128-189 Jumping color change mode (slow to fast) 190-249 Gradual color change mode (slow to fast) 250-255 Sound activated mode No function 4-255 Built-in block water effect 0-255 Speed (slow to fast) TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. -
Page 10: Specifications
SPECIFICATIONS Model 612970 Input Voltage 90 ~ 240 VAC, 50/60 Hz Lamp Type 54x 1-watt 3-in-1 RGB LEDs Control Modes Stand alone, sound activated, DMX512, slave DMX Channels 4, 8, 11, or 23 Dimensions ø8.1" x 8.3" (ø205 x 210 mm) Weight 2.6 lbs.
