Sontay GL-CO-RFG-651 Quick Start Manual

Four Elms Road - Edenbridge
Kent - TN8 6AB - UK
Technical Overview

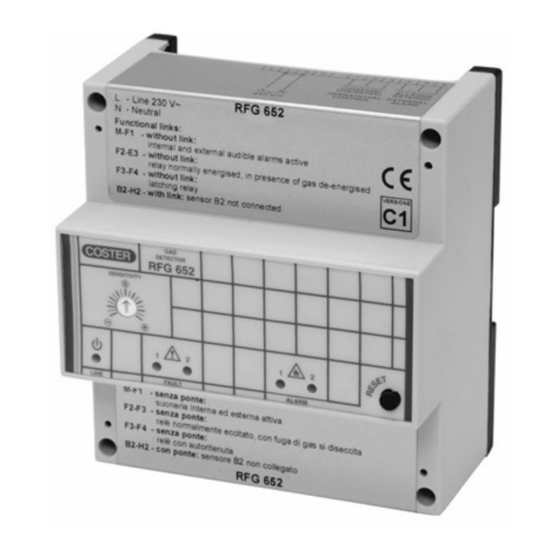

The GL-CO-RFG65x is a series of gas leak alarm systems, that are designed for the detection of gas leaks in spaces such as boiler plant
rooms, workshops and other industrial gas installations, to provide safety alarm and shutdown facilities on detection of gas leakage.
1, 2 or 3 channel versions are available.
Product Codes
Controllers
GL-CO-RFG-651
1 Channel gas leak alarm system (DIN rail mount)
GL-CO-RFG-652
2 Channel gas leak alarm system (DIN rail mount)
GL-CO-RFG-653
3 Channel gas leak alarm system (DIN rail mount)
Mounting options
GL-CO-WMK6
Wall mounting kit
GL-CO-FMK6
Panel mounting kit
Sensors
GL-CO-SRS-150
Natural gas sensor
GL-CO-SRS-250
LPG, Propane sensor
GL-CO-SRS-350
Carbon Monoxide sensor
WEEE Directive:
At the end of the products useful life please
dispose as per the local regulations.
Do not dispose of with normal household waste.
Do not burn.
Tel: +44 (0)1732 861200 - E-mail: sales@sontay.com - Web: www.sontay.com
1, 2 or 3-Channel Gas Leak Alarm Systems
Features and Benefits
•
•
•
•
•
•
Specification
Power supply:
Power consumption
Radio disturbance
Vibration test
Relay outputs
Housing dimensions
Housing materials:
Housing protection
Panel mount housing dim.
Sensor dimensions
Sensor material
Sensor protection
Ambient:
Country of origin
Conformity
© 2017 Sontay Limited. All rights reserved
Page 1 of 5
GL-CO-RFG-65x
Remote sensors for natural gas, LPG and CO
2 x SPST relay outputs
DIN-rail as standard, panel or wall mounting kits available
Adjustable alarm thresholds
Self-diagnosis fault system
Audio & visual alarms
230Vac ±10% @ 50/60Hz
12V ±10%
7VA
VDE0875/0871
with 2g (DIN 40046)
2 x SPDT, 250V @ 5 (1) A
105 x 115 x 70mm
Cover ABS
Base Nylon
IP40
142 x 142 x 125mm
77 x 77 x 44
Nylon
IP44
Storage temp. -25 to + 60°C
Operating temp. 0 to 45°C
RH Class F Din 40040
Italy
EMC, LVD, CE & UKCA Marked
Issue Number 7.1
27/08/2021
