RC-PRO SONIC 19 Operating Instructions Manual

RC-PRO SONIC 19 Operating Instructions Manual

High speed racing boat

Advertisement

Quick Links

AGE 14+

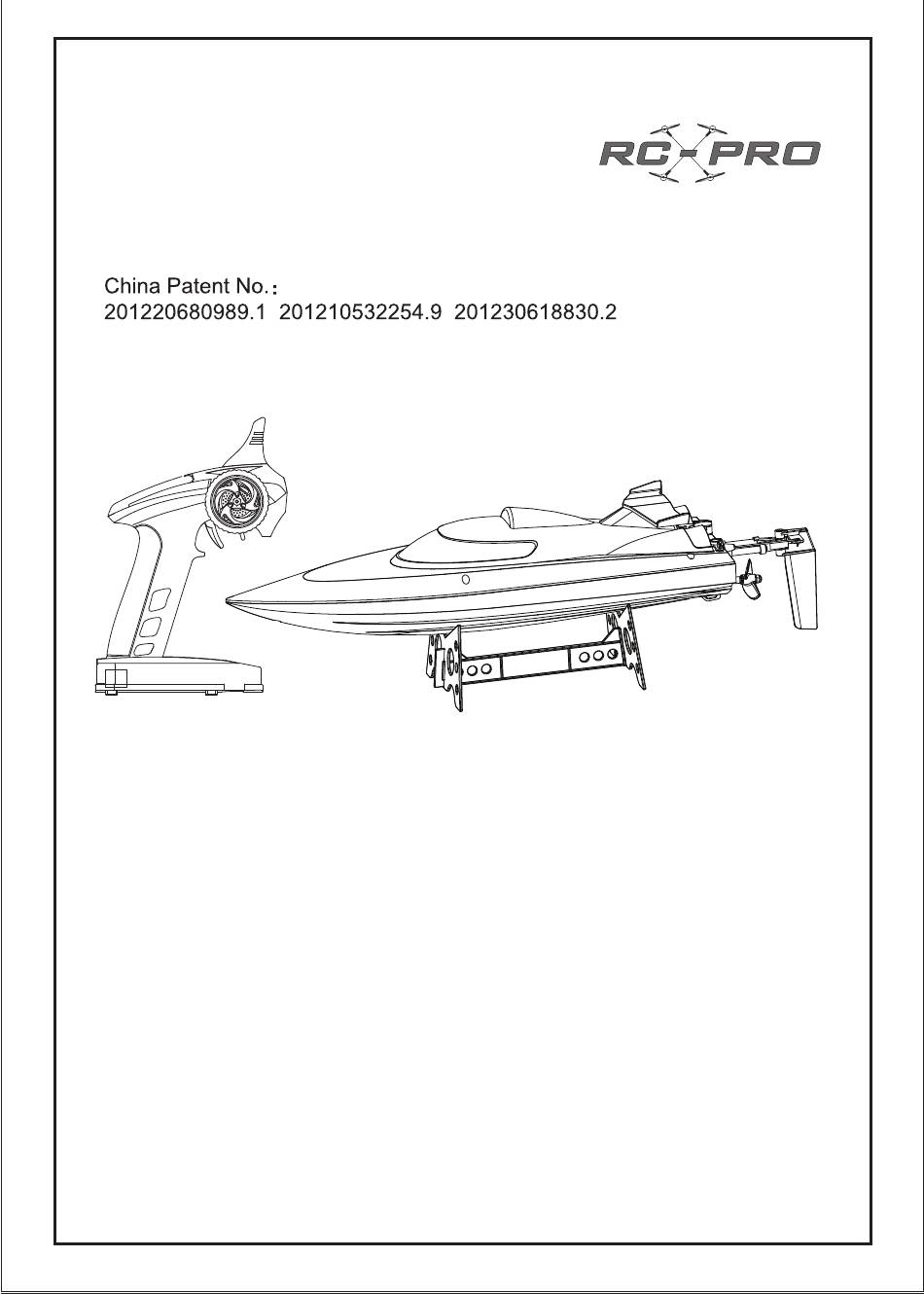

SONIC 19
High Speed Racing Boat
Operating Instructions For 2.4G High-Speed
PLEASE READ INSTRUCTION MANUAL CAREFULLY BEFORE OPERATING
Specifications
•Powerful 540-Size brushed motor system
•2.4ghz full-directional radio control
•Rechargeable Li-ion battery and charger included
•Maximum speed aprox. 30km/h
•Length 460mm x Width 125mm x Height 118mm
SONIC 19 R/C Boat

Advertisement

loading
Need help?

Need help?

Do you have a question about the SONIC 19 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RC-PRO SONIC 19

  • Page 1 AGE 14+ SONIC 19 High Speed Racing Boat Operating Instructions For 2.4G High-Speed SONIC 19 R/C Boat PLEASE READ INSTRUCTION MANUAL CAREFULLY BEFORE OPERATING Specifications •Powerful 540-Size brushed motor system •2.4ghz full-directional radio control •Rechargeable Li-ion battery and charger included •Maximum speed aprox.
  • Page 2 Cover switch Servo Linkage Rudder Propeller UL Charger Show carriage (1500 mAh/7.4V high power rechargeable Li-poly battery)
  • Page 3: Battery Precautions

    Installing Batteries in Remote Controller Open battery cover on controller and correctly insert six 1.5V AA batteries. Close cover and tighten screws.(see the figure) Rechargeable Battery Connect the battery to the charger. Plug the charger into a power outlet and fully charge (about 3-4hrs).
  • Page 4 Installing Boat Battery Cover switch 1.Turn switch on boat cover to open 2.Place Li-po battery into holder in boat body 3.Connect the battery 4.Replace boat cover and turn switch to fasten Activating And Pairing The Boat After connecting the battery place the boat in the water and turn the transmitter to ON, a solid red light and blinking green light will appear.
  • Page 5 For safety and the prevention of injury by the propeller, the boat should not be used out of water. DO NOT OPERATE BOAT OUT OF WATER. Initial steering trim may be needed to correct unwanted movement. 1. This boat should not be used by persons under 14 years of age, and should be accompanied by an adult until 18 years of age.
  • Page 6 Operation of Boat Pull trigger toward body of controller, this will make the boat move forward. Reverse Push trigger away from body of the controller, this will make the boat move backwards. Turning Left While moving turn the direction knob counter-clockwise and the boat will turn left. Turning Right While moving turn the direction knob clockwise to turn right.
  • Page 7 Self-Righting In the case where your boat is upside-down, just push and pull on the trigger, and the boat will automatically right itself. Fine adjustment toward left If your model is automatically turning left, slowly rotate the Directional fine adjustment knob clockwise (as shown), this will correct the drift and allow the boat to move forward accurately.
  • Page 8 Spare Parts Steering servo Propeller unit Motor unit Drive shaft linkage Outer shaft Protective cone Rudder assembly Boat cover unit Boat bottom 7.4V Li-poly UL Charger Control board We believe that you should make the most out of your boat. If you are ever in need of advice, service or parts please visit our website for a list of our retailers and service centers.
  • Page 9 After connecting the battery place the boat in the water and turn the transmitter to ON, a solid red light and blinking green light will appear. Wait for about 5 seconds and the green light will turn solid. The boat is now paired and ready to **Remember, the transmitter must be OFF before connecting the battery...
