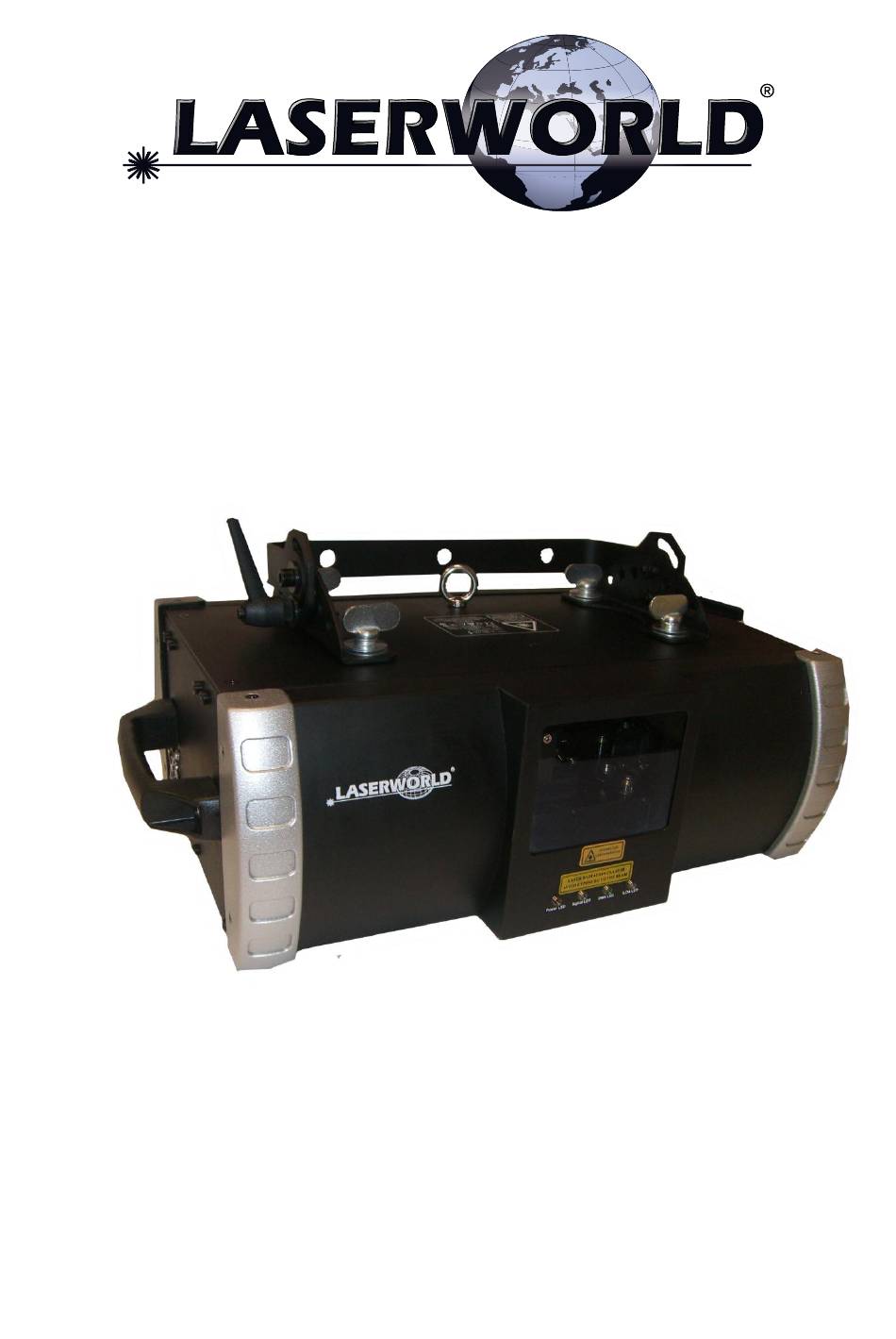

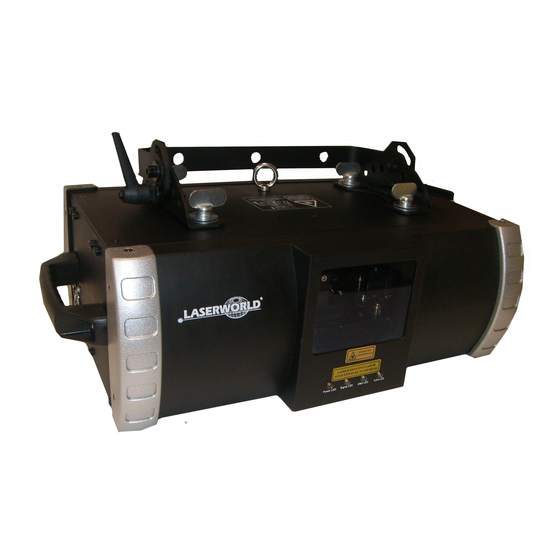

- Page 1 RS 800 G US, RS 800 RGY US RS 1000 RGB US, RS 2300 RGB US RS 2300 RGB US Manual Read carefully before using this device!
-
Page 2: Safety Instructions
Manual: RS 800 G US, RS 800 RGY US, RS 1000 RGB US, RS 2300 RGB US RS-2700 RGB US 2 / 9 Checking parts Please check if all listed parts are included, and are not damaged. Included: 1 x Laser projector... - Page 3 Manual: RS 800 G US, RS 800 RGY US, RS 1000 RGB US, RS 2300 RGB US RS-2700 RGB US 3 / 9 In some countries, the operator must notify the accidence insurance and the authority for industrial safety, before operating a laser. For more information, contact the relevant authorities.
-
Page 4: Control Panel
Manual: RS 800 G US, RS 800 RGY US, RS 1000 RGB US, RS 2300 RGB US RS-2700 RGB US 4 / 9 Control panel MODE: select mode, or go up in menu ENTER: confirm changes, or go down in menu ... - Page 5 Manual: RS 800 G US, RS 800 RGY US, RS 1000 RGB US, RS 2300 RGB US RS-2700 RGB US 5 / 9 Rotation 192~255 Rotate h. & v. Dot rotation 0~63 No function 64~127 Rotating 192~255 Rotating & Dotting...
-
Page 6: Adjustable Mirror Mounts
Manual: RS 800 G US, RS 800 RGY US, RS 1000 RGB US, RS 2300 RGB US RS-2700 RGB US 6 / 9 Change scanner Unscrew UK M6 screws and disconnect signal cable. Loosen M4 x 10 screw and remove galvo. -
Page 7: Technical Diagram
Manual: RS 800 G US, RS 800 RGY US, RS 1000 RGB US, RS 2300 RGB US RS-2700 RGB US 7 / 9 Please note This device has left our premises in absolutely perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. - Page 8 Manual: RS 800 G US, RS 800 RGY US, RS 1000 RGB US, RS 2300 RGB US RS-2700 RGB US 8 / 9 Position of warning labels and laser apertures The positions of the warning labels (EN 60825-1) are: Warning Logotype: Position 1...
- Page 9 Manual: RS 800 G US, RS 800 RGY US, RS 1000 RGB US, RS 2300 RGB US RS-2700 RGB US 9 / 9 Laserworld (Switzerland) AG Kreuzlingerstrasse 5 8574 Lengwil-Oberhofen SWITZERLAND Authorized person: Supervisory board Mr Martin Werner place of business: 8574 Lengwil-Oberhofen / SWITZERLAND company number: CH-440.3.020.548-6...
