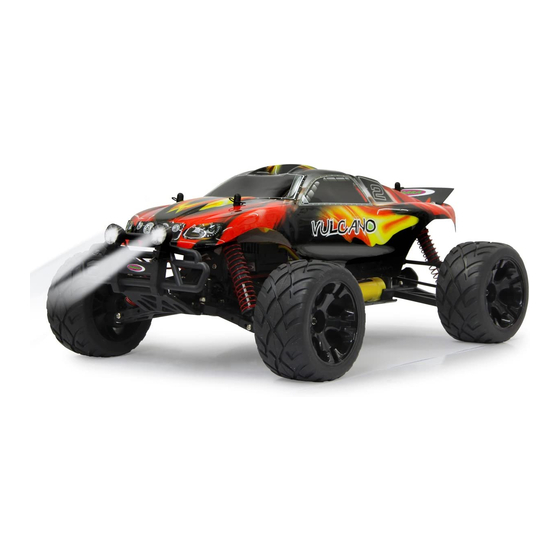

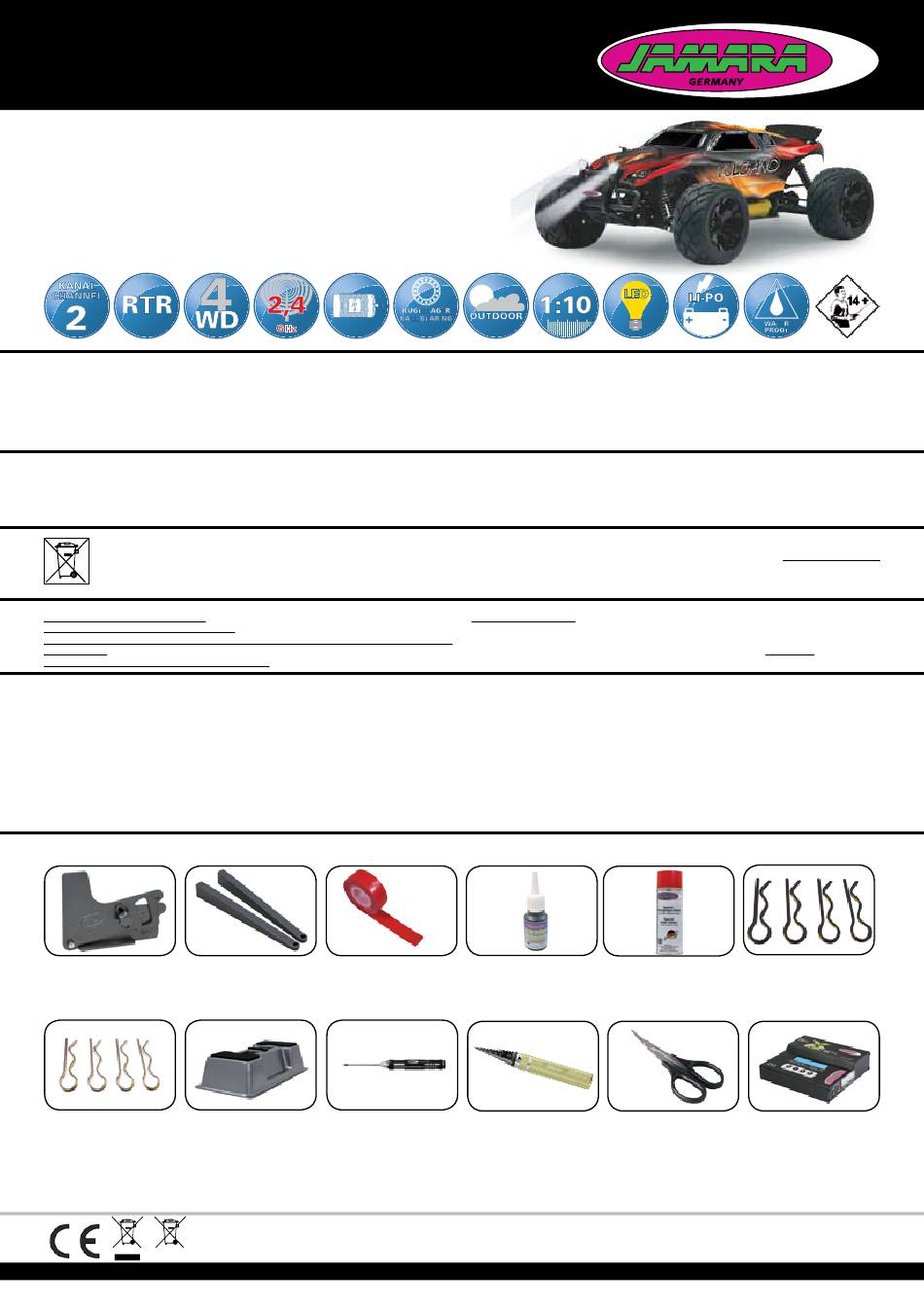

No. 053368 EP
No. 053369 EP LiPo
IT
- Istruzione
GB - Instruction
IT - Informazioni generali
Jamara e. K. non si assume alcuna responsabilità per danni, al prodotto stesso o da esso
causati, che siano riconducibili a un utilizzo non corretto o a manovre errate.Il corretto uso e
azionamento del prodotto è interamente ed esclusivamente a carico del Cliente; ciò include
in particolare il montaggio, il caricamento, l'utilizzo, e fi nanche la scelta del campo di
impiego. Si prega di osservare a tal fi ne le istruzioni d'uso, contenenti informazioni e avver-
timenti molto importanti.
Dichiarazione di conformita'
Jamara e. K. dichiara qui di seguito che il modello "Cocoon EP RTR 2,4 GHz, No. 053240,
No. 053241" è in linea con le norme ed altre rilevanti disposizioni comunitarie 1999/5/CE,
2011/65/EU.
Piu informazioni: www.jamara-shop.com/Konformitaet
IT - Istruzioni per lo smaltimento
Si prega di assicurarsi che le batterie (ricaricabili e non) siano smaltite a regola
d'arte, conformemente alla normativa vigente. Gettare soltanto batterie scariche
negli appositi contenitori presso i rivenditori o gli enti comunali (in genere le
batterie sono scariche quando il modello non funziona più).
Questo modello non é un giocattolo!
Sconsiliato per persone inferiori di 14 anni.
Attenzione: Tenere lontano assolutamente i bambini inferiori ai 36 mesi. PERICOLO DI SOF-
FOCAMENTO!
Contiene pezzi piccoli che possono essere ingeriti.
Attenzione!
Prima dell'uso:
Accendete prima il modello e poi la trasmittente.
Dopo l'uso:
Spegnere prima il modello e poi la trasmittente.
IT - Attrezzi consigliati
No. 19 0065
No. 19 0060
Misuratore convergenza
Mesura distanziatore altezza
Camber adjusting Tool
Height lange
No. 19 3129
No. 50 5401
klein/small
Banco montaggio Car Stand
Karosseriesplint
Deluxe
Body clips
Car Stand
Vulcano EP
RTR 2,4 GHz
No. 23 2060
Power Tape silicone
Doublesided power tape
No. 19 7595
Werkzeug 12in1
Tool 12in1
LED
GB - General information
Jamara e.K. is not liable for any damage caused to the product itself or through this, provided this
is due to improper operation or handling errors. The Customer alone bears the full responsibility for
the proper use and handling, including without limitation, the assembly, the charging process, the
use and choice of the operation area. Please refer to the operating and user instructions, it contains
important information and warnings.
Certificate of Conformity
JAMARA e.K. hereby declares that „Vulcano EP RTR 2,4 GHz, No. 053368, No. 053369" follow the
regulations and requirements as well as any ther relivant directives of the EEC directive
2014/53/EU and 2011/65/EU.
Further information can also be found at: www.jamara-shop.com/Conformity
GB - Disposal restrictions
Please care for a environmental correct and legal way of disposing the batteries and/or accus.
Please, only throw away empty battery packs into the collect-boxes in your local shops or commune.
This model is not a toy!
Not suitable for people under 14 year.
Warning:
Not suitable for children under 36 months. RISK OF SUFFOCATION!
Contains small parts which can be swallowed. Keep away necessarily from children.
Attention!
Before operating:
Switch the transmitter on first then the model.
When finished:
First switch off the model then the transmitter.
● Never operate your model beyond sight. Both the maximum visibility as well as the max.
range of your model will depend on many factors such as weather, location and
interfering frequencies. Therefore, before each use perform a range test with a second
person securely holding the model and also check how the model reacts if there is a
signal failure e.g. when empty transmitter batteries are installed.
Recommended Tool
No. 23 2423
medium
No. 23 0461
Schiuma speciale Spray
Lacca protezione medium
Nut lock
Special cleaning foam
No. 28 1730
No. 28 1787
Louise
Alesatore
Lexanschere
Lexan scissors
Body reamer with cap and sizes
400 ml
No. 05 9273
1:10
Karosseriesplint
Body clips
No. 15 3060
X-Peak 50 BAL
Caricatore
Charger
29/16
