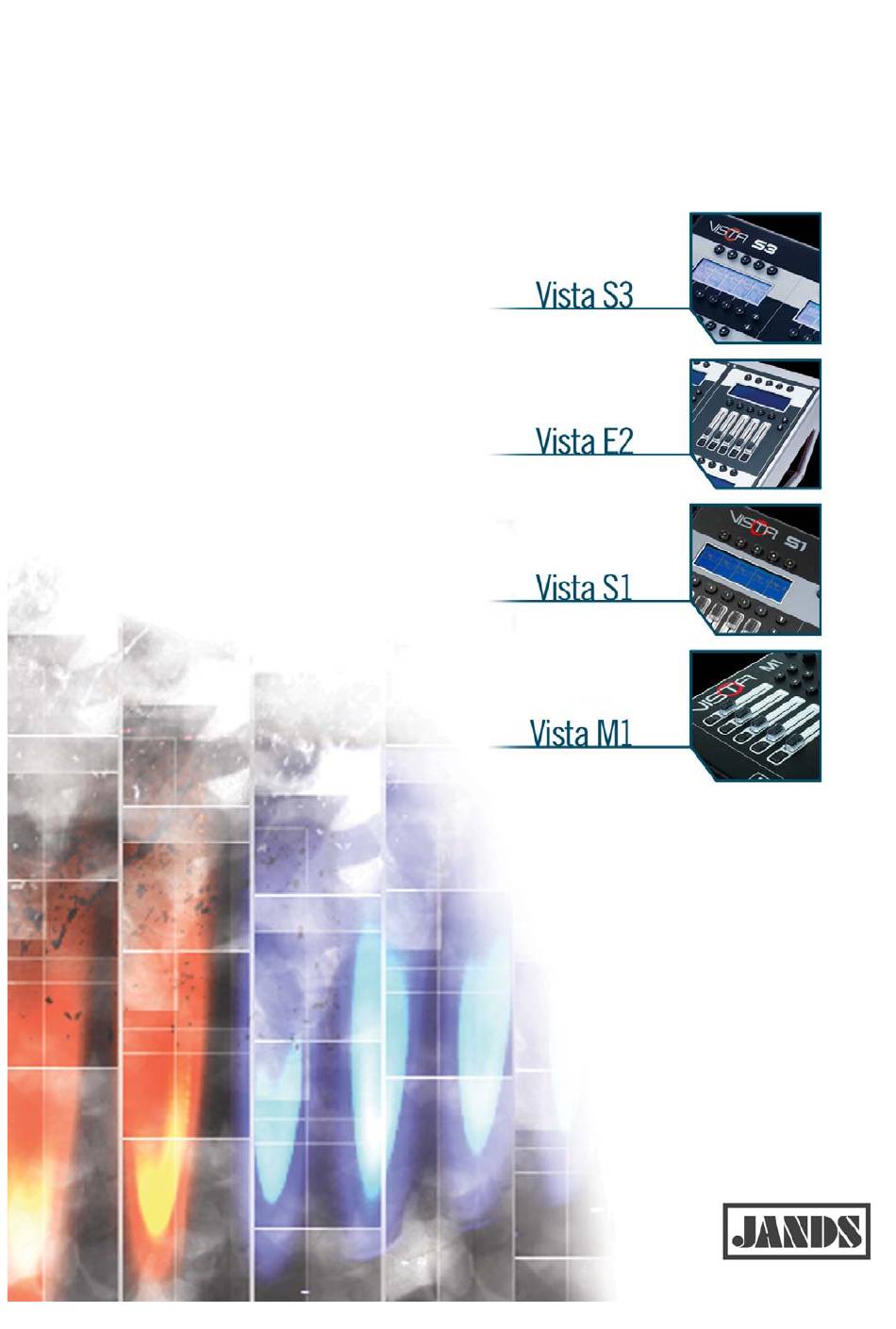

- Page 1 Jands Vista USB Console Setup Guide...
- Page 2 Information contained in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. Jands Pty Limited shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual.
- Page 3 Welcome to the Vista Welcome to the Setup Guide for the Jands Vista USB Consoles. This guide is intended to give you the information you need to get your Vista up and running as quickly as possible. This Setup Guide should be read in conjunction with the Vista User Guide.
- Page 4 Console (S3 and S1 only). If you choose this option we recommend that you get it done by a qualified service person. If you are qualified to do this yourself, contact Jands for a technical note. Jands USB Console Setup Guide Version 1.0...
- Page 5 The concealed USB port is located on the Remove the cover plate to expose the USB underside of the S3 connector The concealed USB port is located inside the Remove the base to expose the USB connector on the Output Card...
- Page 6 Setting up and turning on the console – S3, S1, M1 To get your Vista S3, S1, or M1 USB Console going: Connect the Vista S3 or S1 console to any mains supply between 100 and 240VAC. Connect the USB cable supplied with the console from the input port on the console (Type B) to an output port (Type A) on your Windows PC or Macintosh computer.
-
Page 7: Technical Information
Technical information Installing the Console The Vista console must be installed in a location that allows adequate ventilation. There should be at least 150mm of free space around the rear and sides of the console when in use. Failure to allow adequate ventilation may result in the console shutting down. -
Page 8: Inputs And Outputs
3 pin Female AXR 1 (Sleeve) Shield (6.5mm Audio Jack) 2 (Ring) LTC – 3 (Tip) LTC + Type A, B Data – Data + Ground Desk Lamp Chassis Lamp - Lamp + Jands USB Console Setup Guide Version 1.0...
