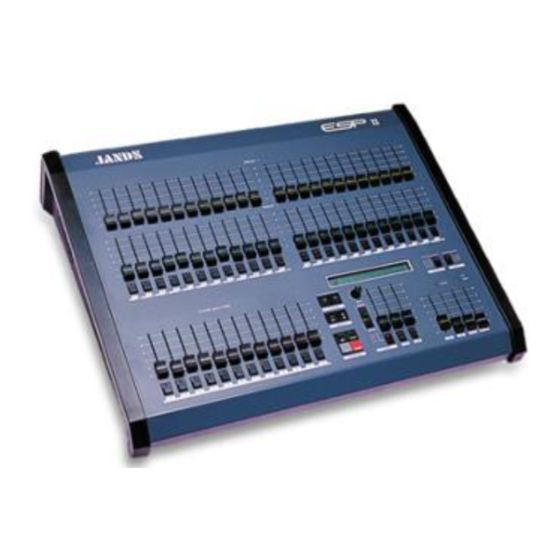

Jands ESP II Quick Reference Manual

Jands ESP II Quick Reference Manual

Lighting control console
Hide thumbs Also See for ESP II:

Advertisement

Quick Links

XFADE
Editing
1
Press and hold the Edit button
2
Press the XF flash button
3
The Edit XF Menu
Xf
Stack number to edit (0-9)
Q#
Cue number to edit (0-99)
Ch
Channel number to edit
To
Channel range to edit
At
Channel level
Infade
Infade time for this cue
Outfade Outfade time for this cue
4
Use the Preset 1 faders to set new levels
or
Use the Value buttons to set new levels in the menu
5
Press the Record button
Recording
1
Move the cursor to the X (Stack#) field
2
Use the + and - buttons to set the required X number
3
Move the cursor to the Q# (Cue #) field
4
Use the + and - buttons to set the required Q# number
5
Set up the desired console output
6
Press and hold the Record button
7
Press the XF flash button
Changing the Playback Order
1
Move the cursor to the X (Stack#) field
2
Use the + and - buttons to set the required X number (0-9)
3
Move the cursor to the Q# (Cue#) field
4
Use the + and - buttons to set the required Q# (0-99)
5
Press the XF flash button
Notes
*
When the Record button is held down the LED in the XF Flash
button may come on. This indicates that the selected X:Q number
has already been recorded.
*
Cues record with the default fade times set in the Setup Util menu.
To change the fade times for a cue use the Edit XF menu.
EFFECTS (FX)
Recording
1
Move the cursor to the FX field
2
Use the + and - buttons to set the required FX number
3
Set up the desired console output
4
Press and hold the Record button
5
Press the FX flash button
Editing
1
Press and hold the Edit button
2
Press the FX flash button
3
The Edit FX menu
Fx
Fx number to edit
Ch
Channel number to edit
To
Channel range to edit
At
Channel level
4
Use the Preset 1 faders to set new levels
or
Use the Value buttons to set new levels in the menu
5
Press the Record button
FX
Changing the FX playback order
1
Move the cursor to the Next (FX) field
2
Use the + and - buttons to set the required FX number
3
Press the FX flash button
Notes
*
When the Record button is held down the LED in the FX Flash
button may come on. This indicates that the selected FX number
has already been recorded.
Jands Electronics Pty Ltd ACN 001 187 837
40 Kent Road Mascot NSW 2020 Australia
Phone: +61 (0)2 9582 0909 Fax: +61 (0)2 9582 0999
E-mail: jandsinfo@jands.com.au Internet: http://www.jands.com.au
Specifications subject to change without notice. Manufactured by Jands Electronics Pty Ltd ACN 001 187 837.
Note: While all due care has been taken in the preparation of this document, Jands Electronics shall not be liable
for any inaccuracies or omissions which may occur herein.

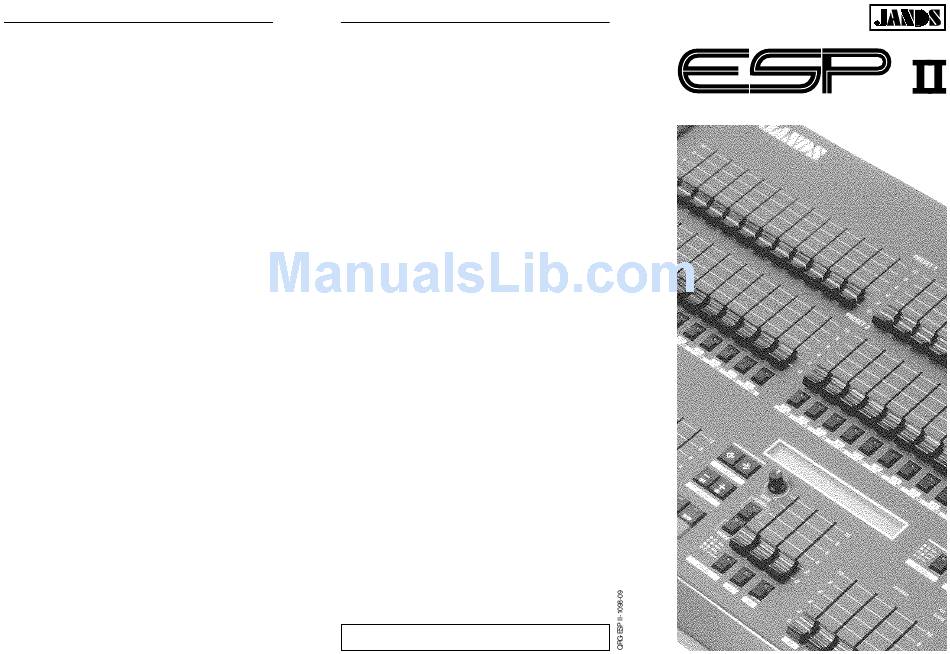

L I G H T I N G C O N T R O L C O N S O L E
V1.2
Quick
Reference
Guide
