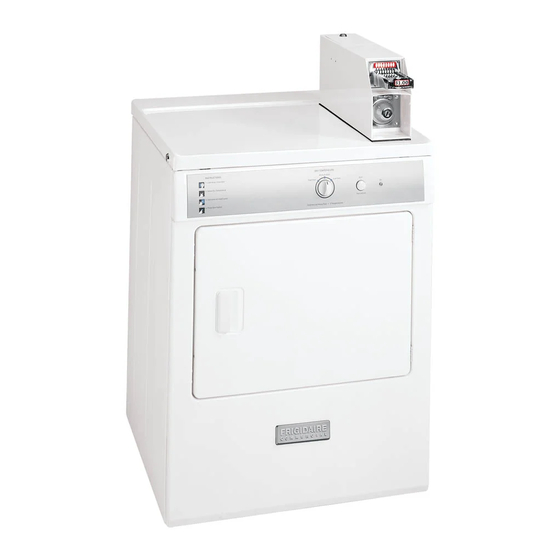

Coin- Operated
Commercial Dryer
Installation Instructions and
Use and Care Guide
SUBJECT
Important Safety Instruction.........................................2
Pre-Installation Requirements.......................................3
Electrical Requirements................................................3
Exhaust System Requirements..................................3-4
Gas Supply Requirements.............................................4
Rough-In Dimensions....................................................5
Unpacking....................................................................5
Reversing Door Swing...................................................5
Location of Your Dryer..................................................6
Electrical Installation.....................................................7
P/N 134589900E (0903)
Contents
PAGE
Grounding Requirements..............................................7
Electrical Connections-3-wire....................................8
Electrical Connections-4-wire....................................8
Installation.....................................................................9
Lint Blade Retaining Pin Location.................................9
Meter case instructions..........................................9-12
Replacement Parts.....................................................12
Parts lists................................................................13-14
Warranty....................................................................15
Back Cover.................................................................16
Printed in USA
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Frigidaire FCGD3000ES
Summary of Contents for Frigidaire FCGD3000ES
-
Page 1: Table Of Contents
SUBJECT Important Safety Instruction...2 Pre-Installation Requirements...3 Electrical Requirements...3 Exhaust System Requirements...3-4 Gas Supply Requirements...4 Rough-In Dimensions...5 Unpacking...5 Reversing Door Swing...5 Location of Your Dryer...6 Electrical Installation...7 P/N 134589900E (0903) Contents PAGE Grounding Requirements...7 Electrical Connections—3-wire...8 Electrical Connections—4-wire...8 Installation...9 Lint Blade Retaining Pin Location...9 Meter case instructions...9-12... -
Page 2: Important Safety Instruction
Product Record For Frigidaire warranty information or to contact a Frigidaire Service Center, call 1-866-738-1640 If you need SERVICE or PARTS for your Frigidaire coin-operated washer: be ready to give the model number, serial number and date of purchase. Record below. -
Page 3: Pre-Installation Requirements
See ELECTRICAL CONNECTIONS FOR A 4-WIRE SYSTEM. OUTLET RECEPTACLE - NEMA 10-30R or 14-30R receptacle to be located so the power supply cord is accessible when the dryer is in the installed position. Typical 3-wire installation... -
Page 4: Gas Supply Requirements
All dryers shipped from the factory are set up for rear exhausting. However, on electric dryers, exhausting can be to the right or left side of the cabinet or the bottom of the dryer. On gas dryers exhausting can be to the right side of the cabinet or the bottom of the dryer. -
Page 5: Rough-In Dimensions
1. Using the four shipping carton corner posts (two on each side), carefully lay the dryer on its left side and remove foam shipping base. or coin meter housing as a means to pick up or move the dryer. 2. Return the dryer to an upright position. (110.7 cm) 36"... -
Page 6: Location Of Your Dryer
3. On carpet. Floor MUST be solid with a maximum slope of 1 inch (2.54 cm). INSTALLATION IN RECESS OR CLOSET 1. A dryer installed in a bedroom, bathroom, recess or closet, MUST be exhausted outdoors. 2. No other fuel burning appliance shall be installed in the same closet as the Gas dryer. -
Page 7: Electrical Installation
A U.L. listed strain relief must be installed onto power cord. If the strain relief is not attached, the cord can be pulled out of the dryer and can be cut by any movement of the cord, resulting in electrical shock. -
Page 8: Electrical Connections-3-Wire
6. Attach the white (neutral) power cord conductor from the power cord and the neutral ground wire from the dryer harness (removed from the ground screw in step 3) to the silver-colored center terminal on the terminal block. Tighten the screw securely. -
Page 9: Installation
2. Connect the exhaust duct to outside exhaust system. Use duct tape to seal all joints. 3. With the dryer in its final position, adjust one or more of the legs until the dryer is resting solid on all four legs. Place a level on top of the dryer. - Page 10 REPLACING NYLON TIMING CAMS ON ACCUMULATOR MECHANISM Electrical Shock Hazard • Disconnect both power supply cords from the electric power supply before making these changes. • Change timing cams before completing electrical connection. Failure to do so could result in electrical shock or personal injury.
- Page 11 • Pull coin slide out of coin chute (see FIGURE 4). STEP 4 Turn coin slide upside down and remove screw that holds coin receiver block (see FIGURE 5). (1) Receiver Block Screw STEP 5 Remove coin receiver block from coin slide (see FIGURE 6): •...
-
Page 12: Replacement Parts
NOTE: It may be easier to insert coin slide mounting bolt if you remove the timer from the mounting screws temporarily. REPLACEMENT PARTS If replacement parts are needed for your dryer, contact the source where you purchased your dryer, or call Frigidaire at For coin box parts, call 1-800-221-0982, 1-866-738-1640. Greenwald Industries. -
Page 13: Parts Lists
Meter Case Parts List Parts List For Greenwald Dryer Timers Timer Assembly Model 50-1232-9 ITEM PART NUMBER 50-61-13-2 51-161-4 00-6164 *Additional 51-161-1 cams that 51-161-2 are available. 51-161-3 Cams pull 51-161-5 off and push 51-161-6 on for 51-161-7 replacement. 51-161-8... -
Page 14: Parts Lists
V8 Parts List DESCRIPTION REQ. 20-3020 20-3000 ———————————————————————————— 1 SCREW (METRIC) 00-9724 00-7924 ———————————————————————————— 2 SCREW (METRIC) 00-7938 00-7938 ———————————————————————————— 3 TOP HOUSING 20-3019 20-3002 ———————————————————————————— SHIM 20-2042 ----------- ———————————————————————————— 5 COIN SIZING BLOCK 20-3006 20-3006 ———————————————————————————— 6 GATE COVER 20-2043 20-2006 ————————————————————————————... -
Page 15: Warranty
____________________________________________________________ Order Form To change vend price, detach and mail the lower portion to: Customer Service Department Greenwald Industries Inc. 212 Middlesex Ave. Chester, CT 06412 ____________________________________________________ The coin chute has been pre-set at the factory. When increasing in $.25 pricing Follow product information instructions;... -
Page 16: Back Cover
Commercial Appliance Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux willpay all costs, except as set forth below, for repairing or replacing any parts of this appliance that prove to be defective inmaterials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions.
