3
Installation
3.1
Space Requirements
•
Maximum installation plate thickness: 5 mm.

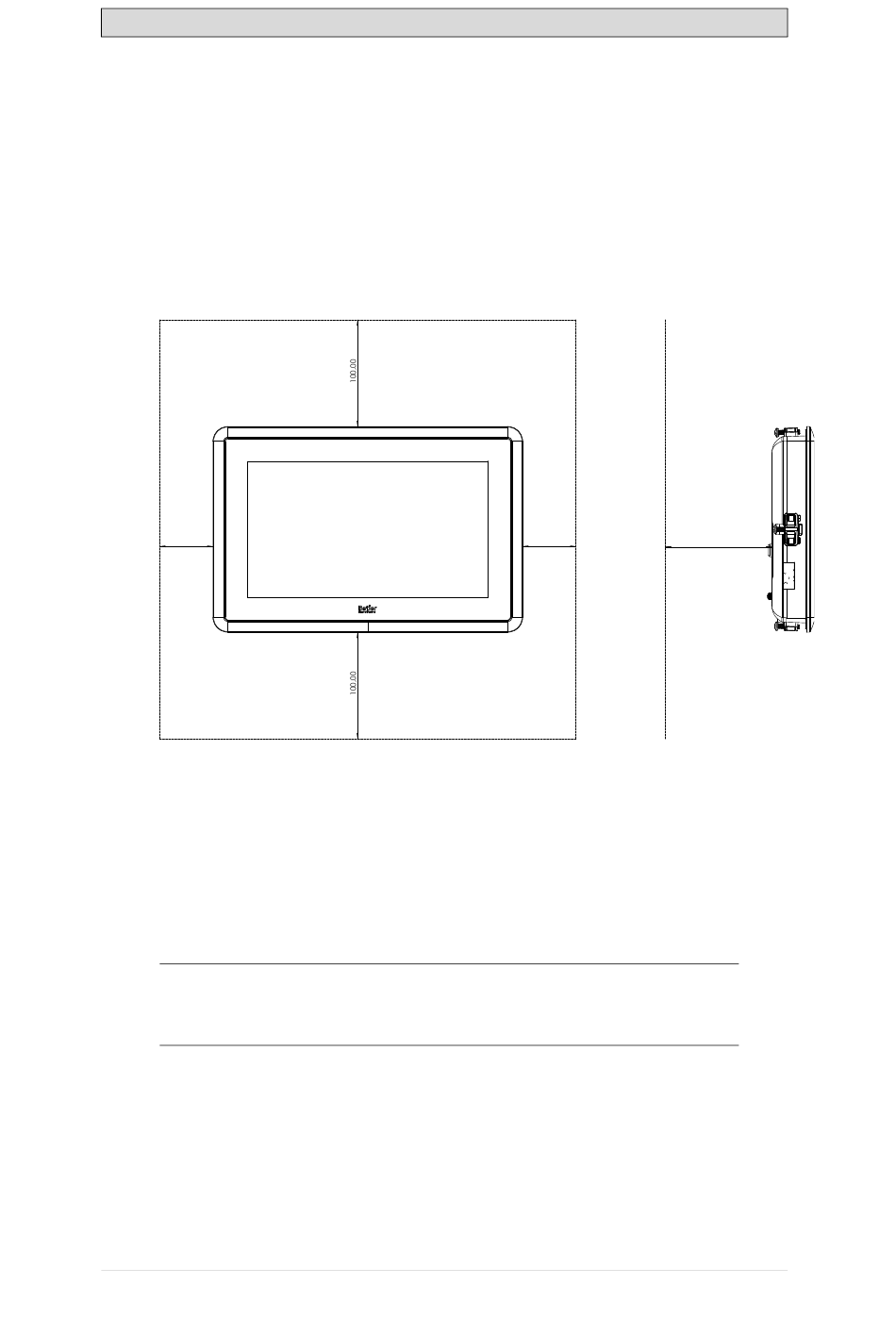

The following drawings show the space requirements in millimeters when
installing the operator panel. The drawings are only illustrative and may be out of
proportion.
50,00
3.2
Installation Process
The following is needed:
•
A Phillips/slot screwdriver
Do the following:
1. Unpack and check the delivery. If damage is found, notify the supplier.
Note:
Place the operator panel on a stable surface during installation.
Dropping the operator panel or letting it fall may cause damage.
2. To cut a correct opening for the operator panel, use the cut out dimensions
in the outline drawing.A separate cut out drawing is available for download
from the Beijer Electronics web site. For more information, see sections
Operator Panel Drawings
Beijer Electronics, MAEN332
and
Technical
Data.
Installation
50,00
100,00
8
