Summary of Contents for Beijer Electronics X2 extreme 15 CO

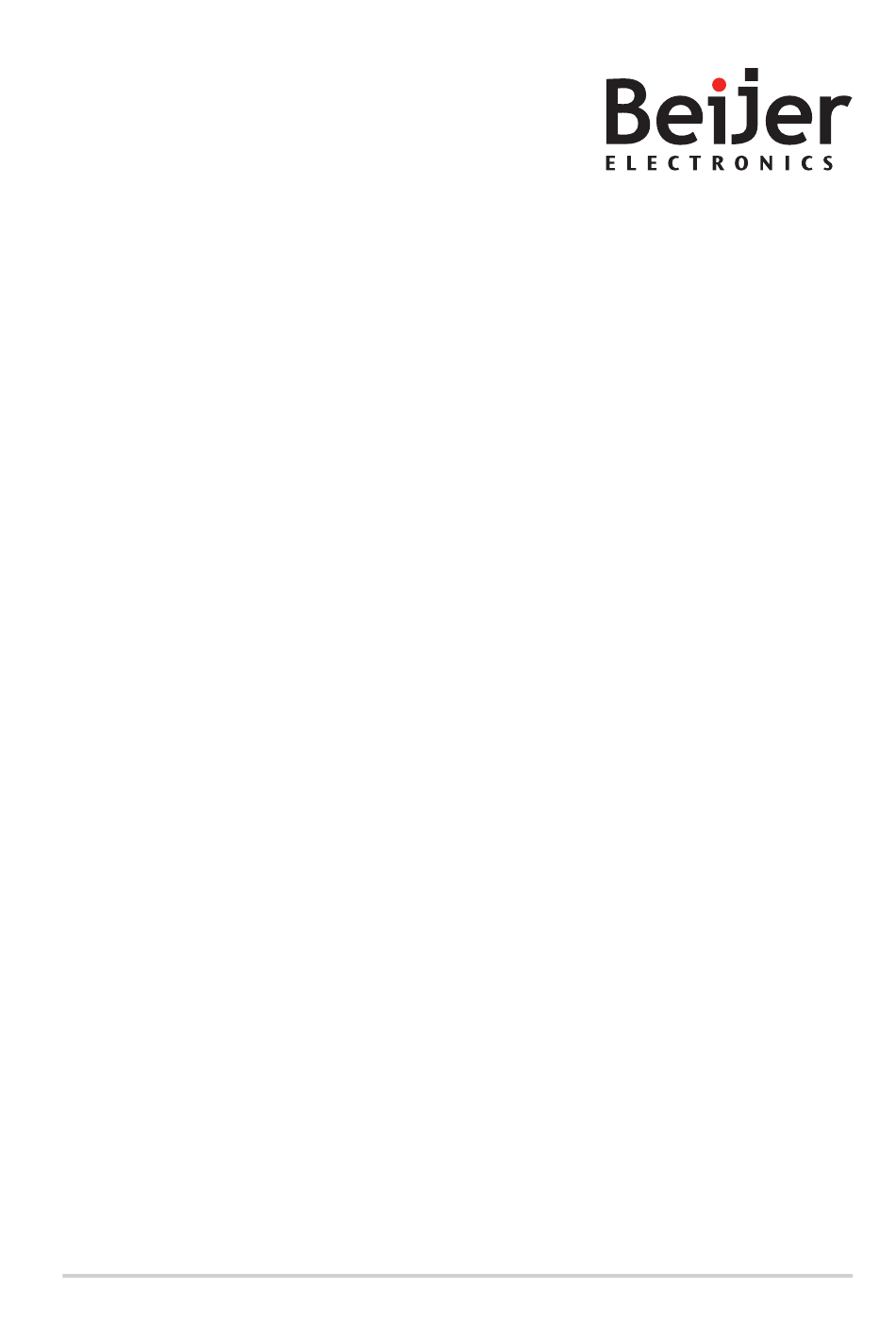

- Page 1 X2 extreme 15 CO English MAEN310, 2019-09...
- Page 2 The information in this document is subject to change without notice and is provided as available at the time of printing. Beijer Electronics AB, including all its group companies, reserves the right to change any information without updating this publication. Beijer Electronics AB, including all its group companies, assumes no responsibility for any errors that may appear in this document.
-
Page 3: Table Of Contents
Communication Ports ......... . .19 X2 extreme 15 CO Outline ........20 7 Additional Installation Tips .......... -
Page 4: Safety Precautions
有毒 和有 害的 材料 或元 素 Cr6+ PBDE PCB and electronic components PCB 和电子元件 O: Indicates that this toxic or hazardous substance contained in all of the homogenous materials for this part is below the limit requirement in SJ/T 11363–2014. Beijer Electronics, MAEN310... -
Page 5: Disposal Requirements Under Weee Regulations
CE PRODUIT CONTIENT UNE PILE QUI NE PEUT PAS ÊTRE REMPLACÉE PAR L'UTILISATEUR. Warning: Potential electrostatic charging hazard, see instrucions. To avoid electrostatic charge build-up, it must not be rubbed or cleaned with solvents or a dry cloth when installed/used within a potentially explosive atmosphere. Beijer Electronics, MAEN310... -
Page 6: Iecex/Atex Certificate And Dust Rating
CHAîNE DE PROTECTION Ex nA nC IIC T4 Gc Ex tc IIIC T75 °C Dc. IECEx/ATEX Certificate and Dust Rating II 3 G Ex nA nC IIC T4 Gc II 3 D Ex tc IIIC T82 °C Dc IECEx UL 19.0058X DEMKO 19 ATEX 1900X Beijer Electronics, MAEN310... -
Page 7: Conditions Of Safe Use For Zone 2/22 Atex/Iecex
Before carrying out any cleaning or maintenance operations, disconnect the equipment from the electrical supply. • Clean the display and surrounding front cover with a soft cloth and mild detergent. • The battery must be replaced by an authorized Beijer Electronics service center. Beijer Electronics, MAEN310... -
Page 8: 1.10 Dismantling And Scrapping
The layer structure of the touch screen contains air. In rare cases, the appearance of bubbles can arise. This is purely cosmetic and does not affect the functionality of the operator panel. The appearance can occur under certain environmental conditions such as temperature, humidity, and atmospheric pressure. Beijer Electronics, MAEN310... -
Page 9: Naming Convention
X2 extreme 7 SL HP* • X2 extreme 12 SL HP SC* • X2 extreme 7 CO* • X2 extreme 12 SL HP RO Note: Not all combinations are available. Note: * indicates variants including IECEx\ATEX and C1D2 accreditation. Beijer Electronics, MAEN310... -
Page 10: Installation
2. To cut a correct opening for the operator panel, use the cut out dimensions in the outline drawing. A separate cut out drawing is available for download from the Beijer Electronics web site. For more information, see sections Operator Panel Drawings Technical Data. - Page 11 For IP65 UL/NEMA Type 4X, Type12, panel must maintain a flatness < 1 mm overall and < 0.05 mm/mm with a surface roughness, Ra < 1.6 μm Beijer Electronics, MAEN310...
-
Page 12: Connections To The Controller
3.2.1 Connections to the Controller For information about the cables to be used when connecting the operator panel to the controller, please refer to the help file for the driver in question. Beijer Electronics, MAEN310... -
Page 13: Hazardous Location Installation
Connect the desired cables and attach them to strain relief plate with cable ties provided. 3.2.3 Other Connections and Peripherals Cables, peripheral equipment and accessories must be suitable for the application and its environment. For further details or recommendations, please refer to the supplier. Beijer Electronics, MAEN310... -
Page 14: Technical Data
Technical Data Technical Data Parameter X2 extreme 15 CO Front panel, W × H × D 411 × 286 × 7 mm Cut out dimensions, Maximum corner radius: 4 mm W × H Mounting depth 66 mm (166 mm including clearance) - Page 15 Technical Data Parameter X2 extreme 15 CO Power supply +24 V DC CE: The power supply must conform with the requirements according to EN/IEC 60950 and EN/IEC 61558-2-4. UL and cUL: The power supply must conform with the requirements for class 2 power supplies.
-
Page 16: Chemical Resistance
Phenol Xylene Ammonia, conc. Sodium hydroxide 5% 97 octane unleaded petrol Ethyl acetate Sodium hydroxide 30% 98 octane leaded petrol Touch Screen and Overlay Material 5.2.1 Protective Film Autoflex EBA 180L covers the overlay surrounding the screen. Beijer Electronics, MAEN310... - Page 17 The Autoflex protective film is not resistant to high pressure steam at over 100 °C or the following chemicals: Concentrated mineral acids Benzyl alcohol Concentrated caustic solution Methylene chloride Beijer Electronics, MAEN310...
-
Page 18: Touch Screen Surface
5.2.3 Touch Screen Protector For harsh environments and exposure to outdoor conditions, it is recommended to use a protective film to guard the touch screen from damage. This optional part can be ordered from Beijer Electronics. Beijer Electronics, MAEN310... -
Page 19: Operator Panel Drawings
Operator Panel Drawings Operator Panel Drawings Connectors Pos. Connector Description Power supply +24 V DC 2×USB Host 2.0, max output current 500 mA 1×10/100 Base-T (shielded RJ45) Serial communication port 6.1.1 Communication Ports Serial connector Beijer Electronics, MAEN310... -
Page 20: X2 Extreme 15 Co Outline
Operator Panel Drawings X2 extreme 15 CO Outline Note: A Step CAD file is available on the web site www.beijerelectronics.com Beijer Electronics, MAEN310... -
Page 21: Additional Installation Tips
3 turns around the ferrite core provide 9 times the suppression of 1 turn. Connect a wire or grounding braid, that is sized correctly according to local electrical codes, between the chassis of the operator panel and the closest grounding point. Beijer Electronics, MAEN310... -
Page 22: Ethernet Connection In The Operator Panel
1. Check whether the other Ethernet unit has its shield directly grounded or grounded via a capacitor. Note: In many cases, connecting the shielded Ethernet cabling to the chassis at both ends is inappropriate. Hum or grounding loops can occur. Unshielded cabling may even result in fewer communication errors. Beijer Electronics, MAEN310... -
Page 23: To Achieve Better Emc Protection
This connects the HF transients to ground. To Achieve Better EMC Protection • Initially, use the original cabling from Beijer Electronics primarily. • Place the 24 V DC and communications cabling in one cable trunk/cable duct and 230/380 V AC in another. If the cables need to be crossed, cross them at 90°... - Page 24 Non-energized after 30 cm 20 cm magnetization Energized and operating 30 cm 20 cm Condition Standard Compass Steering Compass Non-energized 65 cm 50 cm Non-energized after 70 cm 50 cm magnetization Energized and operating 65 cm 50 cm Beijer Electronics, MAEN310...
-
Page 25: Ambient Temperature
Energized and operating 85 cm 65 cm Ambient Temperature The maximum ambient temperature for the operator panel is provided in the specifications. The ambient temperature refers to the temperature in the device cabinet which cools the operator panel’s electronics. Beijer Electronics, MAEN310... - Page 26 An approximate value of the net power consumption for the operator panel can be calculated by multiplying the supply voltage with the current drawn by the operator panel. This is assuming that all supplied power is transformed to heat. Beijer Electronics, MAEN310...
-
Page 27: Safety
Transients on the 24 V feed are connected to the ground. • No risk that the 24 V feed is at a high level in relationship to the ground. This is not unusual since there is high static electricity. Beijer Electronics, MAEN310... -
Page 28: Galvanic Isolation
RS-422/RS-485 and USB. Only the Ethernet connection has galvanic isolation. The operator panel has galvanic isolation against the 24 V DC power supply but no galvanic isolation between the communication ports for RS-232, RS-422/RS-485 and USB. Only the Ethernet- and RS-485 connection have galvanic isolation. Beijer Electronics, MAEN310... - Page 29 24 V feed, disturbances and grounding currents from the 0 V on the 24 V side disrupt the communication. Using this type of unit solves one problem but creates a larger problem! A substandard installation may work now, but problems may arise when other devices are connected. Beijer Electronics, MAEN310...
-
Page 30: Cable And Bus Termination Rs-485
Depending on the recipients’ design, the bus wires may be on the same level or require pull-up or pull-down to ensure that no faulty signals are detected when the bus is in resting mode (all transmitters are disconnected). Beijer Electronics, MAEN310... - Page 31 Head office Beijer Electronics AB Box 426 201 24 Malmö, Sweden www.beijerelectronics.com / +46 40 358600...
