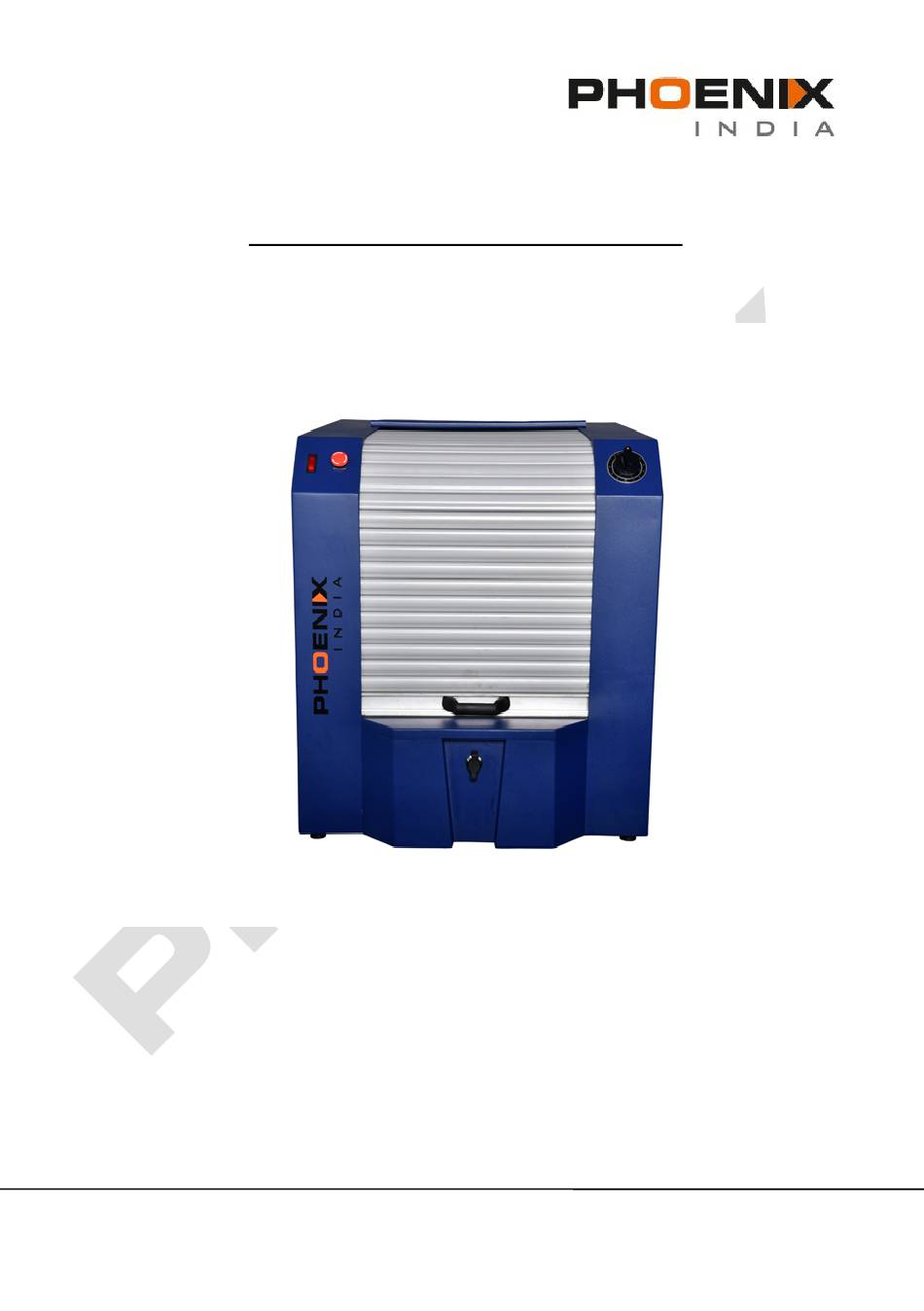

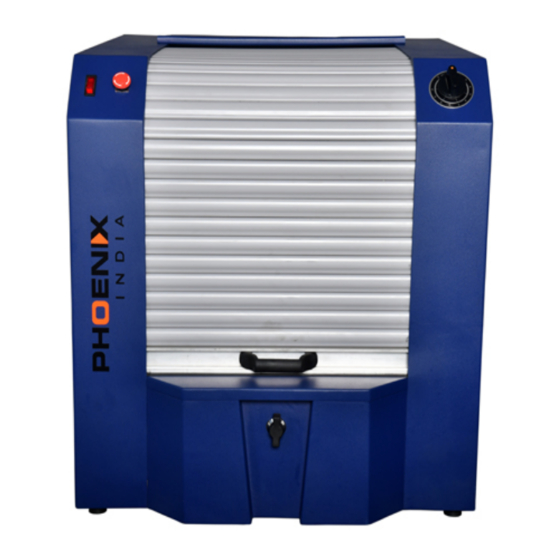

- Page 1 MELANGE 5L Semi Automatic Gyroscopic Mixer Operating and Service Manual © 2008 Phoenix Mixer India Pvt Ltd. Ver. Phoenix 1.0 _ 01-04- Phoenix Mixer India Pvt. Ltd.
- Page 2 Phoenix Mixer. Phoenix shall not be liable for technical or editorial errors or omissions made herein; nor for incidental or consequential damages resulting from the performance or use of this material.
-
Page 3: Table Of Contents
INDEX SAFETY INSTRUCTIONS…………………………………….………………. INTRODUCTION………..………………………..………….………………… TECHNICAL SPECIFICATIONS………………………………….…………. WARRANTY TERMS……………………………………………………..…… SAFETY SPECIFICATIONS………………………………….………………. INSTALLATION…………………………………………………………..…….. CONTROLS……………………………………………………………….……… OPERATIONS……………………………………………………………….….. MAINTENANCE & TROUBLESHOOTING…………..……………….. Ver. Phoenix 1.0 _ 01-04- Phoenix Mixer India Pvt. Ltd. -
Page 4: Safety Instructions
Examine the machine for signs of damage. Check regularly that all parts are in good working condition. Have repairs carried out only by the manufacturer or an approved specialist. Trained and authorized personnel shall use this product. Ver. Phoenix 1.0 _ 01-04- Phoenix Mixer India Pvt. Ltd. -
Page 5: Introduction
The unique design results in reduced maintenance and in color mixing at the lowest cost per liter produced. MELANGE 5L is a rugged and reliable mixer which performance and design exhibits the qualities of a strong and sturdy engineering product and low maintenance. -
Page 6: Technical Specifications
CLOCKWISE EMERGENCY SWITCH AVAILABLE TRANSPORT ROLLER (Custer NOT AVAILABLE Wheel) MACHINE DIMENSION (WxDxH) 560x625x596 MM PACKING DIMENSION (WxDxH) 580x645x640 MM MACHINE NET WEIGHT 61 KG MACHINE GROSS WEIGHT 73 KG Ver. Phoenix 1.0 _ 01-04- Phoenix Mixer India Pvt. Ltd. - Page 7 PrEN 12757-1 Mixing machinery for coating materials Materials used by Phoenix to manufacture the machine doesn’t undergo corrosions or deteriorations (They are compatible) with the paints which have to be mixed. Ver. Phoenix 1.0 _ 01-04-...
- Page 8 Phoenix. Unauthorized repair may render the warranty null and void. Please return any defective parts or machines carriage-paid to our factory. Phoenix reserves the rights to decide on whether cost-free parts replacement is applicable. Parts and labour covered by the warranty will be supplied free of charge.
-
Page 9: Safety Specifications
Do not use extension cords to connect this product. Attention!!! Only trained personnel shall be permitted access to the electrical wiring within the machine. DO NOT USE THIS PRODUCT IF THE BACK PANEL IS NOT IN PLACE. Ver. Phoenix 1.0 _ 01-04- Phoenix Mixer India Pvt. Ltd. - Page 10 30%, be installed. When the MELANGE 5L is not being used for a period of time (such as at the end of the work day), ensure that it is empty (no paint can inside), close the door and unplug the power plug from the outlet.
- Page 11 Mechanical Door Lock and Limit Switch The MELANGE 5L is equipped with a safety device which prevents start up of the mixing cycle when the door is in the open position. It also locks the door in the closed position during the mixing cycle.
-
Page 12: Installation
INSTALLATION CONDITIONS: Before unpacking and installing the MELANGE Mixer, please make sure of the following: The crate/packaging in which the MELANGE 5L was shipped has not been damaged in any way. The floor on which the MELANGE 5L is to be located is firm and level ... -
Page 13: Controls
7. CONTROLS LEFT HAND CONTROL PANEL Emergency Stop Button ON/OFF Button RIGHT HAND CONTROL PANEL Mechanical Timer - sets mixing time Ver. Phoenix 1.0 _ 01-04- - 13 Phoenix Mixer India Pvt. Ltd. - Page 14 MECHANICAL DOOR LOCK Turn the knob clockwise to open shutter Ver. Phoenix 1.0 _ 01-04- - 14 Phoenix Mixer India Pvt. Ltd.
-
Page 15: Operations
OFF CAN LOADING: Open the MELANGE 5L Mixer door to its fully open position by turning Black Knob Y to clockwise direction Ensure the Can Holder Assembly is in the vertical, top dead center (TDC) position, with the Clamp Mechanical Mechanism at the top. - Page 16 Position the can on the bottom Disc. Using the concentric rings on the bottom Disc as a guide, ensure the can is properly centered. Ver. Phoenix 1.0 _ 01-04- - 16 Phoenix Mixer India Pvt. Ltd.
- Page 17 USE THE EMERCENCY STOP BUTTON IN AN EMERGENCY SITUATION ONLY Note: Always remove the can from the mixer after the mix cycle has been completed. Follow the UNLOADING instructions. Below. Ver. Phoenix 1.0 _ 01-04- - 17 Phoenix Mixer India Pvt. Ltd.
- Page 18 UNLOADING THE CAN: Open the MELANGE 5L Mixer door to its fully open position by turning black knob Y in clockwise direction Slowly rotate the Assembly to the vertical, top dead center (TDC) position. Rotate Revolving knob Anti – Clockwise to open the clamp plate and remove can from can holder assembly.
-
Page 19: Maintenance & Troubleshooting
Machine is giving shock while in Check for proper grounding. If the operation earthling is not proper consult an Electrician. Note: Shutter will not open when the Power is OFF Ver. Phoenix 1.0 _ 01-04- - 19 Phoenix Mixer India Pvt. Ltd. - Page 20 THANK YOU Phoenix Mixer India Pvt. Ltd. Plot No 7, Collage Road, Vadkun, Dahanu Road - 401602 Dist: Palghar, Maharashtra. INDIA Phone: + 91-2528 221120 / 223324 www.phoenixmixer.com An ISO 9001:2015 Certified Company Ver. Phoenix 1.0 _ 01-04- - 20...
