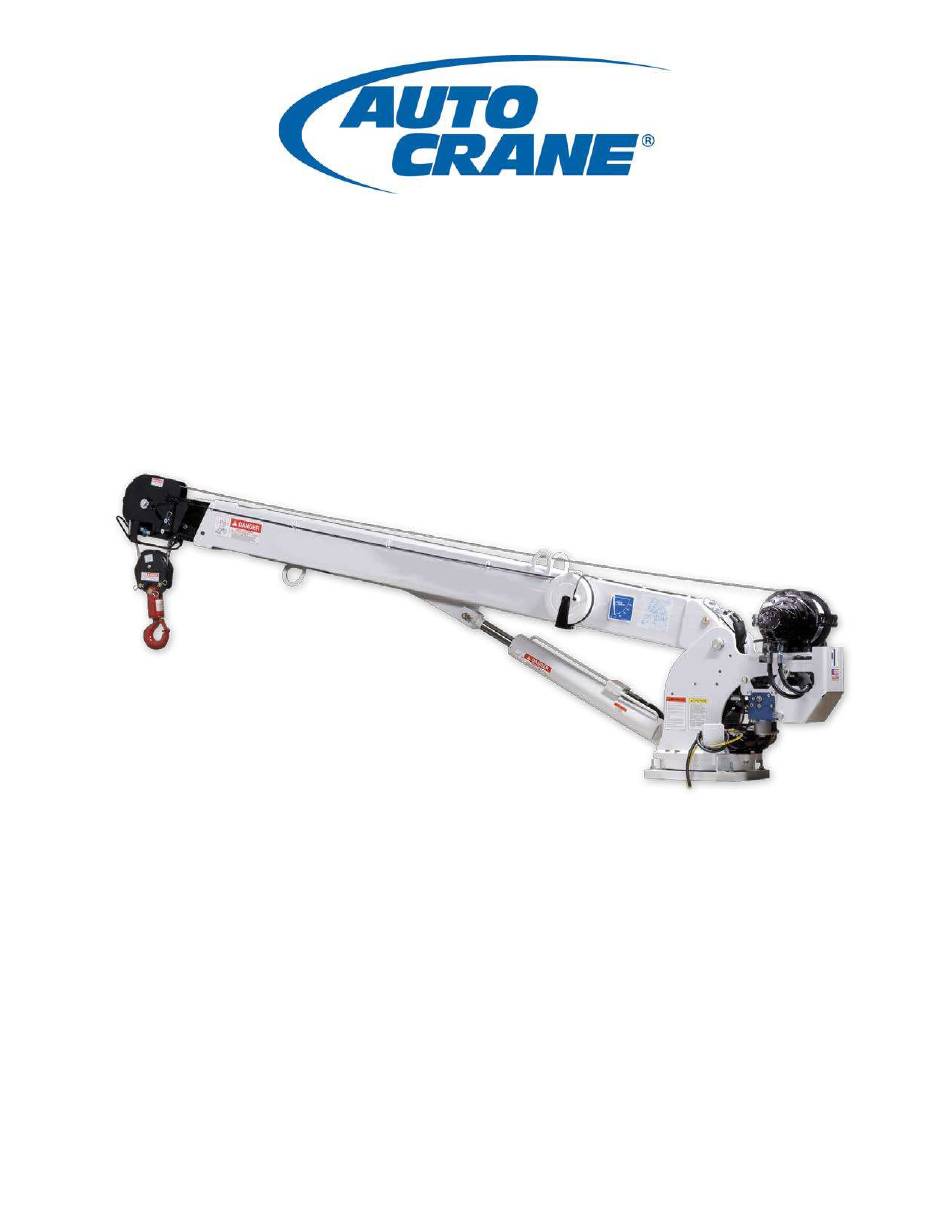

Page 1

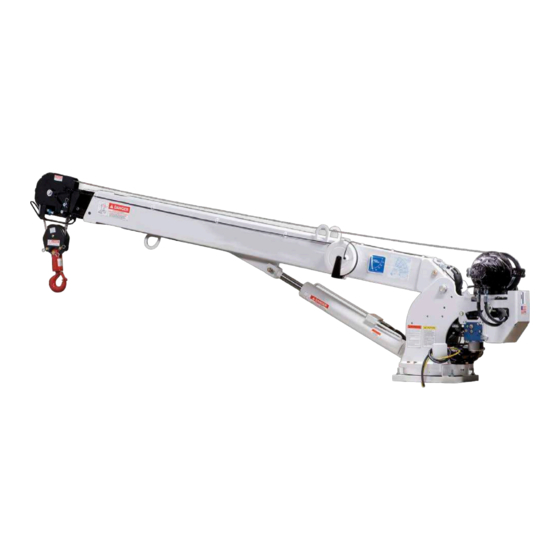

HC-12S NEXSTAR III OWNERS MANUAL Serial No. _______________________________________ Phone: 1-800-777-2760 Mailing Address: Physical Address: P.O. Box 580697 4707 N. Mingo Rd. Fax: (918) 269-6688 http://www.autocrane.com Tulsa, OK 74158-0697 Tulsa, OK 74117-5904 475000103-0816-A Courtesy of CraneMarket.com...
Page 2
At the time of publishing this manual is accurate to the best of our knowledge. Auto Crane reserves the right to change any or all items, components and parts, necessary for any reason. This right does not obligate Auto Crane to immediately update the manual.
Do not attempt to lift or drag a load from the side! The boom can fail far below its rated capacity. Do not weld, modify, or use unauthorized components on any Auto Crane unit! This will void any warranty or liability. Also failure of the crane may result.
60-amp alternator with a 500 cold cranking amp battery. These specifications should be considered minimum. It has always been Auto Crane Company policy to handle all warranty claims we receive as promptly as possible. If a warranty claim involves discrepant material or workmanship, Auto Crane will take immediate corrective action. It is...
3.1 GENERAL SPECIFICATIONS DIMENSIONS • Width: 24.5 in. (0.62 m) • Height: 36.0 in. (0.91 m) • Length: 14 ft. 8 in. (4.47 m), stored length. • Weight: 2,023 lbs. (918 kg) CAPACITY • 60,000 ft-lbs (8.3 ton-m) • Ft-lbs = horizontal distance from centerline of rotation to free hanging weight (feet) x amount of weight (pounds). REACH •...
3.3 LOAD CHART Figure 2. Load Chart All load ratings are based on crane capacity, not the vehicle stability. When lifting a heavy load, the weight can create enough tipping moment to overturn the vehicle. DO NOT USE the overload shutdown device to determine maximum rated loads, if the crane is equipped with this type of device.
C. Demonstrate to the employer the ability to operate the specific type of equipment. D. Be familiar with the applicable safety regulations. E. Understand the operating procedures as outlined by the Auto Crane. F. Be thoroughly familiar with the crane and its control functions.
5. Before closing the switch or starting the engine, the operator shall see that all controls are in the “OFF” or neutral position and all personnel are in the clear. 6. If power fails during operation, the operator shall: A. Move power controls to the “OFF” or neutral position. B.
4.6 OPERATING NEAR ELECTRICAL POWER LINES Never operate the crane near electrical lines or in the danger zone area. Figure 3. Danger Zone 1. Do not place any part of the crane or load inside the Danger Zone. EXCEPTIONS: A. The Danger Zone may be entered after confirmation by an appointed person the electrical distribution and transmission lines are de-energized and visibly grounded at the point work.
Leave the ignition on with the transmission in neutral (or park for automatic transmissions), c. Activate any crane power switches. 7. For Auto Crane units using electric and hydraulic operation: a. Engage the emergency brake, b. Place the transmission in neutral, c.
AFTER OPERATION 1. After completing the lifting operations, return the boom to the stowed position on the boom support. 2. Replace remote control to its storage location. 3. Return the Outriggers to the stowed position. Ensure they are pinned in place or jacklegs are returned to the storage compartment.
5.1 NEXSTAR III OPERATION This section describes the general operation for cranes with the NEXSTAR III control system. Before operating the Remote Control, read and understand all safety information in this manual, any manual supplements, and any applicable local, state, or federal rules and regulations. Never drive with a load suspended from the crane.
5.3 REMOTE CONTROL LAYOUT Figure 4. Nexstar III Remote Control 1. Emergency Stop Button – Push to activate. Pull to release. When activated the Emergency Stop Button stops all outputs from the receiver. 2. Display Screen – LCD screen that displays many crane operating parameters. See Figure 4. 3.
5.4 DISPLAY SCREEN LAYOUT Figure 5. Display Screen Layout 1. Capacity – The current load on the boom as a percentage of total capacity. The unloaded value of the boom may be higher than 0% due to the boom weight beyond the retracted position. 2.
5.5 SPEED AND MODE SELECTION 5.5.1 SPEED SELECTION 1. Press and hold the Link Switch in the up position. 2. While holding the Link Switch in the up position: a. Move the Left Joystick up to increase the max speed. b.
5.6 OPERATION – VALVE OVERRIDE 1. Push the unloader valve (ULV) red button. This will send hydraulic fluid to the valve block. 2. Select the desired function. 3. Close the gap between the collar and the end on the override button. 4.
6.1.2 NEXSTAR III REMOTE CONTROL TROUBLESHOOTING TABLE Problem Possible Reason Action Remote control Emergency Stop Switch is Ensure the E-Stop switch is pulled up. down or pressed. Replace the battery pack with the label Batteries are dead or installed backwards; facing out.
6.1.3 NEXSTAR III ERROR CODE TABLE Error Code Cause Effect Solution S1 CAN RX TO Reception of a can message All outputs will be disabled Determine why messages are not timed out being received. When problem is corrected the alarm will clear S2 TEMP OUT OF Outside of operating temperature All outputs will be disabled...
Pto not engaged Check PTO activation light, usually Engage PTO located in the cab NO FUNCTION Crane diverter valve not Is using Auto Crane outriggers, check Engage crane diverter valve OPERATES ON engaged the crane diverter valve located at the THE CRANE...
6.1.5 NEXSTAR III ELECTRICAL TROUBLESHOOTING TABLE Problem Cause Effect Solution Jammed transmitter button Activate e-stop to see if movement Verify that nothing had stops depressed the button at the time of movement. If it was not depressed, replace the transmitter Short in wiring harness Unexpected movement would only Verify there is no damage to the...
Page 27
Problem Cause Effect Solution Reached limit for cw rotation Check screen for error code. It will Verify the CW limit switch is not display "CW limit" activated. This should normally ROTATE CW IS be closed. INOPERABLE Bad coil or damaged wire Screen will display 0% next to sp but the Switch coil with another function.
7.1 MAINTENANCE 7.1.1 INSPECTION REQUIREMENTS Reference ASME B30.5a and OSHA 1910.180 for complete inspection requirements. All inspections shall be performed by designated personnel only. 7.1.2 INSPECTION CLASSIFICATION 1. Initial Inspection a. Prior to initial use, all new, altered, modified, or extensively repaired cranes shall be inspected by a designated person to ensure compliance with provisions of this standard.
7.1.4 PERIODIC INSPECTION Any deficiencies, such as those listed below, shall be carefully examined and determination made as to whether they constitute a hazard: 1. Inspect for deformed, cracked or corroded members in the crane structure and entire boom. 2. Inspect for loose bolts, particularly mounting bolts. 3.
7.1.5 CRANES NOT IN REGULAR USE A crane, which has been idle for a period of more than one month or more, shall be given an inspection conforming to the “initial” and “periodic” inspection requirements of this section. 7.1.6 INSPECTION RECORDS Dated records of periodic inspection should be made on critical items such as brakes, crane hooks, rope, cylinders, and relief pressure valves.
Replacement rope shall have a strength rating at least as great as the original rope furnished or recommended by Auto Crane. A rope manufacturer, Auto Crane, or a qualified person shall specify any deviation from the original size, grade, or construction.
7.3.6 PAINT FINISH MAINTENANCE The paint finish on Auto Crane products can become damaged during normal use when chipped, scratch, exposed to harsh chemicals, cleaned with pressure washers, or similar. During periods when the truck is exposed to salt or other corrosive chemicals, wash Auto Crane products weekly.
7.4 LUBRICATION AND MAINTENANCE SCHEDULE SERVICE INSTRUCTIONS DAILY WEEKLY 3 MONTHS 6 MONTHS YEARLY PERFORMED Load Hook Inspect hook and latch for deformation, cracks, and corrosion. Cable Drum Ensure cable is wound evenly on drum. Hoist/Boom Check for flattening, kinks, broken Cable strands.
2. Once a bolt has been tightened to specification then removed, the bolt should be replaced with a new one. 3. Auto Crane Company recommends this crane be serviced per the “Crane Inspection Log” P/N 999978. Fill these logs in at the intervals noted and kept as a permanent record. Additional copies are available from your local distributor.
3. If the difference between the two measurements exceeds the specification, replace the bearing. Crane Model Axial Play Allowance Rotation Bearing Replacement Kit 2003/3203/4004 1.5 mm 320878010 HC-12S, HC-6, HC-7, HC-8, HC-9, 1/16 in. 480023010 8406 HC10 1.8 mm 372064010 HC-12, HC-14 2.3 mm...
7.7 HC-12S NEXSTAR III, CARTRIDGE MAINTENANCE VERIFY MOVEMENT IN PORTS WHILE MANUALLY OVERRIDING CARTRIDGE Table 8. Cartridge Maintenance Use the following procedure to inspect the cartridge for proper operation. 1. Clean the area around the valve spool before it is removed from the valve bank.
8.1 CRANE MOUNTING AND INSTALLATION For information specific to your crane, such as mounting hole diameter, bolt size and grade, and hydraulic requirements, see General Dimensions. 1. Refer to the Bill of Materials included with your ship kit. Ensure all items listed on the Bill of Materials are included with your crane.
Page 38
21. Ensure the Owner’s Manual is delivered to the customer. 22. For additional help: Call the Service Department at the Auto Crane Company, 1-800-777-2760, located in Tulsa, IMPORTANT! FEDERAL LAW (49 CFR PART 571) REQUIRES THAT THE FINAL STAGE MANUFACTURER OF A VEHICLE CERTIFY THAT HE VEHICLE COMPLIES WITH ALL APPLICABLE FEDERAL REGULATIONS.
8. Tighten the nut on the adjustment screw and repeat steps 6 and 7 until the proper pressure reading is obtained. If the proper pressure reading cannot be obtained, please contact your Auto Crane distributor for assistance. 9. Disengage the PTO.
HC-12S NEXSTAR III, MAIN HARNESS P/N: 366823220 96" 78" 56" 48" 32" 24" ENGINE S ENGINE S TAR T POW ER GROUND HIGH IDLE POWER/ ENGI NE 15" 27" J24 ON LY MESH LOOM 6" 19 8 7 TAPE GASKET &...
