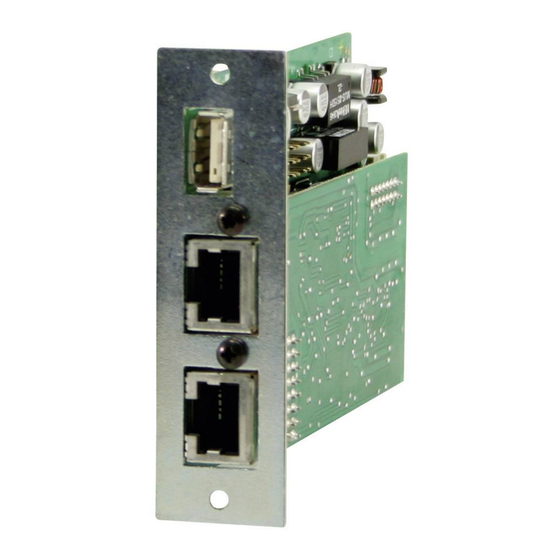

IF-U1 (USB):
IF-R1 (RS232):
IF-C1 (CAN):
IF-A1 (ANA):
IF-G1 (GPIB):
IF-PB1 (Profibus): 33 100 219
33 100 212
IF-U2 (USB):
33 100 213
IF-R2 (RS232):
33 100 214
IF-C2 (CAN):
33 100 215
IF-E1B (Ethernet): 33 100 227
33 100 216
IF-E2B (Ethernet): 33 100 228
33 100 220
33 100 221
33 100 222
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elektro-Automatik IF-U1
Summary of Contents for Elektro-Automatik IF-U1
- Page 1 User Manual Interface Cards USB / RS232 / GPIB / CAN / Analog / Ethernet / Profibus IF-U1 (USB): 33 100 212 IF-U2 (USB): 33 100 220 IF-R1 (RS232): 33 100 213 IF-R2 (RS232): 33 100 221 IF-C1 (CAN): 33 100 214...
- Page 2 Important! About & Copyright Elektro-Automatik GmbH & Co. KG • Only equip the interface card(s) in units which are de- signed to be used with them! It is not required to open Helmholtzstrasse 31-33 the unit. Information about which devices are capable of...
-
Page 3: Table Of Contents
3.3 Combining interface cards ............................7 4. RS232 card IF-R1 / IF-R2 .............................. 8 4.1 Configuring the RS232 card ............................8 5. USB card IF-U1 / IF-U2 ..............................8 5.1 Configuring the USB card ............................8 6. CAN card IF-C1 / IF-C2 ..............................9 6.1 Configuring the CAN card ............................ - Page 4 Table of contents 10.5 Implementation on the control side ......................... 22 10.6 Other features ................................. 22 10.7 Updating the firmware ............................. 23 10.8 Communication via the USB port ..........................23 11. Notes about particular device series ..........................24 11.1 Series EL 3000 / EL 9000 ............................24 11.2 Series PS 8000 T/ DT / 2U / 3U ..........................
-
Page 5: General
57600 baud. with a statutory warranty of two years (for Germany), which PSI 9000 series only: the cards IF-R1 and IF-U1 addition- is independent from the warranty (and its duration) of the ally support the parallel and/or series connection of multiple device they are used in. -
Page 6: Technical Specifications
USB 1.1 Input voltage Maximum range -5V...+30V Cable length max. 5m if set to: Level=LOW System Link Mode < 1V (IF-U1 and PSI 9000 series only) > 4V High └ Max. number of units if set to: Level=HIGH < 5V └ Bus termination settable in the unit’s menu > 9V High └ Patch cable... -
Page 7: Installation
In case more than one card slot is used, the table shows which cards can be combined (• means allowed): Transmission speed Ethernet 100 kBaud Transmission speed USB 57600 Baud IF-E1 / IF-U1 IF-C1 IF-R1 IF-G1 IF-A1 IF-PB1 IF-E1B Command interval max. every 10ms • •... -
Page 8: Rs232 Card If-R1 / If-R2
Attention! It not required to set the device address (node) here, since Never connect any of the RJ45 sockets of the IF-U1 RS232 is point-to-point. To simplify communication, the so- card to an Ethernet hub or switch or Ethernet port of... -
Page 9: Can Card If-C1 / If-C2
CAN. All that is needed is a device with an extra IF-R1 or IF-U1 interface card to set up a CAN bus system. Both cards, RS232 and USB, can only utilise the high per- Figure shows IF-C1 settings of CAN-ID system “normal”, for... -
Page 10: Can Ids
About the interface cards CAN IDs 6.2.2 New CAN ID system since June 2011 The new CAN ID system is first available for PS 8000 and 6.2.1 Old CAN ID system EL3000/EL9000 series, other series like PSI 8000 follow. Further It is absolutely necessary to choose and set a unique device series upon request. -
Page 11: Analogue Interface If-A1
About the interface cards Analogue interface IF-A1 Pin assignment of the analogue interface (25-pole D-Sub socket) Name Function Description Default level Electrical specifications PSEL / Analogue input: Set value power / 0..10V correspond to 0..100% P RSEL Analogue input: Set value resistance 0..10V correspond to 0..100% R Analogue input: Accuracy @0...10V typ. -
Page 12: General
0...10V. At devices with two extension card slots (eg. PSI9000) it is possible to combine the IF-A1 with a digital interface card (eg. IF-U1 (USB)), in order to control, for example, the device by USB and put out actual values via the analogue outputs of the analogue card. -
Page 13: Psi 8000 Series
About the interface cards The adjusted voltage range, for example 2.00V...8.00V, Default: PSEL 0.00 10.00V AI1 corresponds to 0...100% set value. A higher or lower volt- = {PSEL|RSEL|-} Pin assigned to external set value for age is clipped and treated as either 0% or 100%. Also see power or resistance or not used „Explanation about Nom.value“... -
Page 14: Digital Inputs
About the interface cards Input DI2/Rem-SB Default: 0.00V 10.00V AO3 You can switch the power supply output on and off, enable = PMON Monitor (actual value) output power or block it with this input. Depending on the setting Set These extra settings are only available for PSI 9000 series output, the input DI2/Rem-SB determines whether the out- models: put is controlled exclusively in external mode (by analogue... -
Page 15: Digital Outputs With Determined Functionality
About the interface cards Jumper settings for DI1-2 Example 2: the output shall be shut off by an emergency circuit. The jumper for DI2 needs to be set to „Default level The jumpers DI1-3 on the PCB are used to preset the phys- =L“... -
Page 16: Digital Outputs With User-Definable Functionality
About the interface cards For models of PSI 8000 series additionally available: Default: DO6/CC = trip U+I Triggered by overstepping of the limits U>, = { LOW | HIGH } U<, I> and/or I< (see device instruction man- has been selected, the output is pulled to GND as ual). -
Page 17: Gpib Card If-G1
>30ms. Smaller times can lead to execution ries PSI 9000, the IF-G1 can only be combined with the errors. analogue card IF-A1 or the digital cards IF-R1 or IF-U1. It Configuring the IF-G1 must not be plugged together with the CAN interface card IF-C1 or with the Ethernet card IF-E1B! See section 3.3. -
Page 18: Ethernet Cards If-E1B And If-E2B
About the interface cards Ethernet cards IF-E1B and IF-E2B Configuring the Ethernet card Attention! 9.2.1 On the device Since a few years only the models IF-E1B and IF-E2B Note are available and this section does not handle the Network parameter configuration on the device is only former models IF-E1/IF-E2 anymore. -
Page 19: With The Ip-Config Tool
About the interface cards 9.2.2 With the IP-Config tool 9.2.3 On the device website For device series which do not allow to configure the network In order to change the IP on the device website perform parameters directly on the device, the parameters can be following steps: configured via the USB port of the network card and with the 1. -
Page 20: Communicating With The Device
The Ethernet card features an additional interface, a USB Notes & requirements: port of type A. This interface works identically to the IF-U1 • Requires Javascript enabled for refresh and content USB card,. Also see section 5. -
Page 21: Firmware Updates
About the interface cards Firmware updates 4. The device has a different IP than expected The additional USB port is also used to update the firmware If DHCP has been activated and there is a DHCP server of the device or the Ethernet card itself. running on the network, the network settings, as given by you via website, IP-Config tool or directly in the setup menu, Firmware updates are done with a special update tool and... -
Page 22: Profibus Card If-Pb1
About the interface cards 10. Profibus card IF-PB1 10.3 Connecting the bus The unit is connected to the bus master or to other units with Profibus stands for „Process Field Bus“ and is a primarily a typical Profibus cable. Those cables are required to have a european standard for field bus communication in automation built-in bus termination, either switchable or non-switchable. -
Page 23: Updating The Firmware
The jumpers A, B and C (in the middle of the PCB) are set to Position NORM, as depicted by the little table that is printed Refer to sections „5. USB card IF-U1 / IF-U2“ and „13. Pro- on the PCB next to the jumpers. NORM stands for 101, gramming“... -
Page 24: Notes About Particular Device Series
„off“). port the following interface cards (date 08 /2012): PS 8000 T series: IF-U1, IF-R1, IF-C1, IF-G1* and IF-E1** Access to the device setup by pressing both knobs simul- Note about the GPIB card IF-G1: at devices with firmware taneously for >2s while output is „off“. -
Page 25: The System Link Mode (Psi9000 Only)
About the interface cards 12. The System Link Mode (PSI9000 only) 12.1 Handling the System Link Mode Attention! Following requirements and restrictions: 12.1.1 Display and handling of the master • Parallel and/or series connection only with units of the The master unit is used to adjust the set values for the whole same type system and to display the summed up set values and actual •... -
Page 26: Special Alarms, Warnings And Signals
The extra ports (SIO2) on the cards IF- R1 or IF-U1 have to be linked to a corresponding port of the S-PH next unit. A CAT5 patch cable is included in the package. -
Page 27: Programming
About the interface cards 13. Programming parallel Default: Detailed information about programming the target device ={1..30} Set the position of the unit within the system. via one of the digital interface cards can, i.e. remote control, be found in external user guides which are separated into: Example 1: one slave device is connected in series to the •... -
Page 28: Connectors
The connectors of the CAN card are connected IF-C1/C2 in parallel CAN1 CAN2 IF-R1 Note about IF-U1 / IF-R1: The System Link ports are only usable with RS232 System Link Ports power supplies of the series PSI9000. Never connect Ethernet cables here! - Page 29 Overviews IF-E1B IF-E2 Reset USB A IF-R2 IF-U2 USB A IF-PB1 USB A Status Profibus User Manual Date: 22-10-2015 Interface cards IF-XX...
