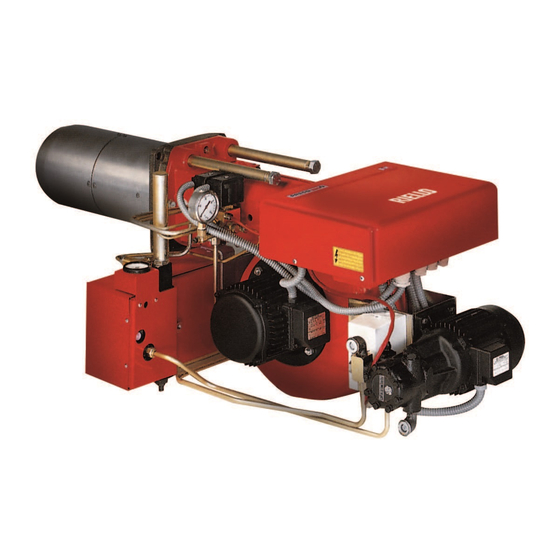

- Page 1 Installation, use and maintenance instructions Heavy oil burner CODE MODEL TYPE 3434985 PRESS 60 N 616 T80 3434986 PRESS 60 N 616 T80 2915895 (2) - 01/2009...
- Page 3 Thermal power - Output 171 / 342 - 684 kW - 15 / 30 - 60 kg/h Operation Two stages Fuel Oil with max. viscosity at 50 °C: 150 mm /s (20 °E) Three phase: 220V +10% -10% ~ 60Hz without neutral Electrical supply 380V +10% -10% ~ 60Hz with neutral Motor...
- Page 4 COMBUSTION CHAMBER PRESSURE - MAXIMUM OUTPUT (two nozzles in operation) kg/h When the burner operates with only one nozzle, the pressurization conditions are improved and no problems arise. Minimal fuel capacity with only one nozzle: 15 kg/h - 171 kW Front plate detail for boiler mounting Note for the extended combustion head version...
- Page 5 FUEL OIL GRAVITY FEED SYSTEMS Gravity system (fuel oil with viscosity max. 7°E at 50°C) L meters Pump priming: loose the tap of the ø 1” ø 1 1/4” meters vacuometer plug 5) (fig. 1) and wait for the fuel flow. H: Difference in the pipes height.
-
Page 6: Electrical Wiring Connections
ELECTRICAL WIRING CONNECTIONS (carried out by the factory) RMO88.53A2 RMO88.53A2 18 9 2 4 6 1 3 5 1 3 5 L1 L2 L3 S3 T1 30 T2 T6 T8 D2613 KEY TO LAYOUT Fan motor contactor Pre-heart contactor Suppressor Photoresistance Wiring terminal board Fan motor... - Page 7 ELECTRICAL CONNECTIONS TO THE WIRING TERMINAL BOARD (to be carried out by the installer) D2644 220V 380V KEY TO LAYOUT A Ampere B mm Remote lock-out signal C Ampere Manual burner stop switch D mm Wiring terminal board Limit control device system High-low mode control device system Safety control device system NOTICE...
- Page 8 FASTENING OF THE ELECTRICAL WIRES All the wires, which have to be connected to the wiring terminal board 16) (fig. 1) shall pass through the fair leads 17) (fig. 1) as per this scheme. 1 - Pre-heating resistances three phase supply: fair lead Pg 21 2 - Motor three phase supply: fair lead Pg 16...
- Page 9 CHOICE OF NOZZLES - OF THE PUMP PRESSURE OF THE COMBUSTION HEAD ADJUSTMENT Nozzles delivery Combustion head adjustment Pump pressure Maximum output kg/h Nozzle 20 bar 25 bar GPH (45° - 60°) kg/h kg/h 2,50 + 2,50 30,00 34,00 3,00 + 3,00 36,00 40,60 3,50 + 3,50...
- Page 10 ADJUSTMENT OF THE AIR DAMPER MOTOR STOP - Blue lever This lever leaves the factory vertically positioned and corresponds to the complete closing of the air damper. Black lever A partial opening of the air damper might be obtained by moving leftwards this lever (+ on the label).
- Page 11 SPRAY TEMPERATURE ADJUSTMENT Thermostats for: adjustment - maximum value - minimum value Adjustment thermostat: it prevents the burner start up if the fuel temperature has not reached the required value for a good spray as indicated in the diagram below. Sheath for thermometer Adjusting knob...
- Page 12 NOTE - The pre-heater might be provided with a second thermostat of maximum value with manual reset. That thermostat can be used as a switch operating by means of an external commutator, which can take off the current from the pre-heater in case of over-temperature. (Kit code no. 3000800). - Before the burner start-up, verify that the pump is filled of fuel in order to avoid any idling for too long time.
-
Page 13: Burner Start-Up Cycle Diagnostics
BURNER START-UP CYCLE DIAGNOSTICS During start-up, indication is according to the followin table: COLOUR CODE TABLE Sequences Colour code Pre-purging Ignition phase Operation, flame ok Operating with weak flame signal Electrical supply lower than ~ 170V Lock-out Extraneous light Key: Yellow Green OPERATING FAULT DIAGNOSTICS... - Page 16 RIELLO S.p.A. I-37045 Legnago (VR) Tel.: +39.0442.630111 http:// www.rielloburners.com Subject to modifications...
