CaryMart 0020476 Manual

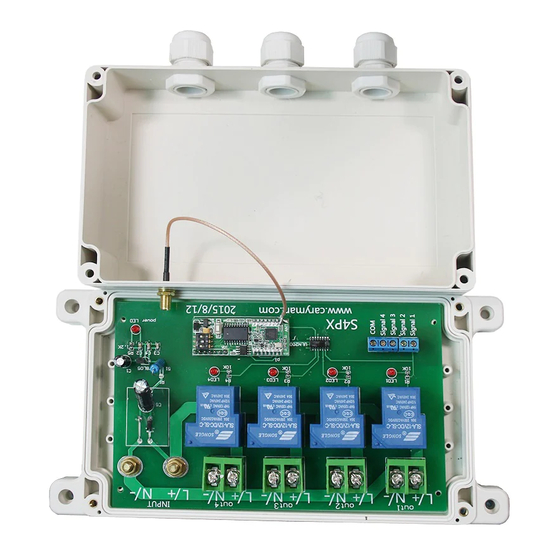

RF Wireless Receiver (Model 0020476)
Feature:
Wireless control, easy to install
Waterproof case with waterproof connectors.
High power, each output can work at maximum 30A current.
DC power output, can be used in home automation, such as security system, remote control lights, motors, doors / locks / windows / blinds / cars, and
various equipment.
The receiver has four input control terminals, you can connect external devices, sensors, or manual switches to these terminals to control the outputs
of receiver.
With the external telescopic antenna, it can have a further working range.
With a transmitter (such as CB-4) to form a complete set, the distance can reach 2000m.
It also can be used in agriculture and industry automation, such as long range and high power remote control devices.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through
walls, floors and doors.
With characteristics of reverse power protection and over current protection
Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more units in the same place, you can set them with different codes.

Receiver parameters:

Model No.: S4PX-DC06-ANT3 / S4PX-DC09-ANT3 / S4PX-DC12-ANT3 / S4PX-DC24-ANT3
Power Supply (Operating Voltage): DC6V (S4PX-DC06-ANT3), DC9V±1V (S4PX-DC09-ANT3), DC12V±1V (S4PX-DC12-ANT3), DC24V±2V
(S4PX-DC24-ANT3)
Output: DC6V (S4PX-DC06-ANT3), DC9V (S4PX-DC09-ANT3), DC12V (S4PX-DC12-ANT3), DC24V (S4PX-DC24-ANT3)
Working Frequency: 315MHz / 433MHz
Channel: 4 CH
4 Control Modes: Toggle, Momentary, Latched, Momentary + Toggle
Maximum Working Current: 30A / each channel
Static Current: ≤6mA
PCB size: 170mm x 109mm x 18mm
Case size:200mm x 120mm x 53mm
Work with Fixed code transmitters or Learning code transmitters.

Transmitters:

The receiver can pair different model transmitters, includes model C-4 (200M), CWB-4 (100M, waterproof), CP-4 (1000M) and CB-4 (2000M) etc...
You also can use four transmitters with one button to work with this receiver, and each transmitter will control receiver 's a channel. Such as model
C-1 (200m), CWB-1 (100m, waterproof), CP-1 (1000M) and CB-1 (2000M) etc...

External telescopic antenna:

Length of external telescopic antenna: 108mm / 445mm (stretch)
External telescopic antenna use SMA connector.
If you stretches the external telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Weight of external telescopic antenna: 16.5g
The working range:
With a transmitter (such as CB-4) to form a complete set, the distance can reach 2000m. The distance of 2000m is a theoretical data, it shall be
operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be
exposed to some interference by other signals. Therefore, the actual distance may or may not reach 2000m.
If you want to have a further working range, you can install a magnetic sucker antenna (model 0020910).

Usage (with the transmitter like CB-4):

You can use this 4 channel receiver to control 4 DC equipments. If the power supply of those equipments is DC 12V, you should choose the receiver
with same DC 12V version; and if the power supply of those equipments is DC 24V, you should choose the receiver with same DC 24V version.
If you want to control four DC 12V lamps, do as following:
Connect DC 12V power to terminals "+" and "-", and connect lamp 1 to terminals "+" and "-" of OUT1, connect lamp 2 to terminals "+" and "-" of OUT2,
connect lamp 3 to terminals "+" and "-" of OUT3, connect lamp 4 to terminals "+" and "-" of OUT4 .
Setting different control modes: (We have set the receiver as Toggle control mode before delivery. If you want to use other control modes, do as
following operation):
Setting control mode Toggle, Only connect Jumper-2.
Control mode Toggle: Press -> On; Press again -> Off.
Press button A of the transmitter: Terminal OUT1 outputs DC power.
