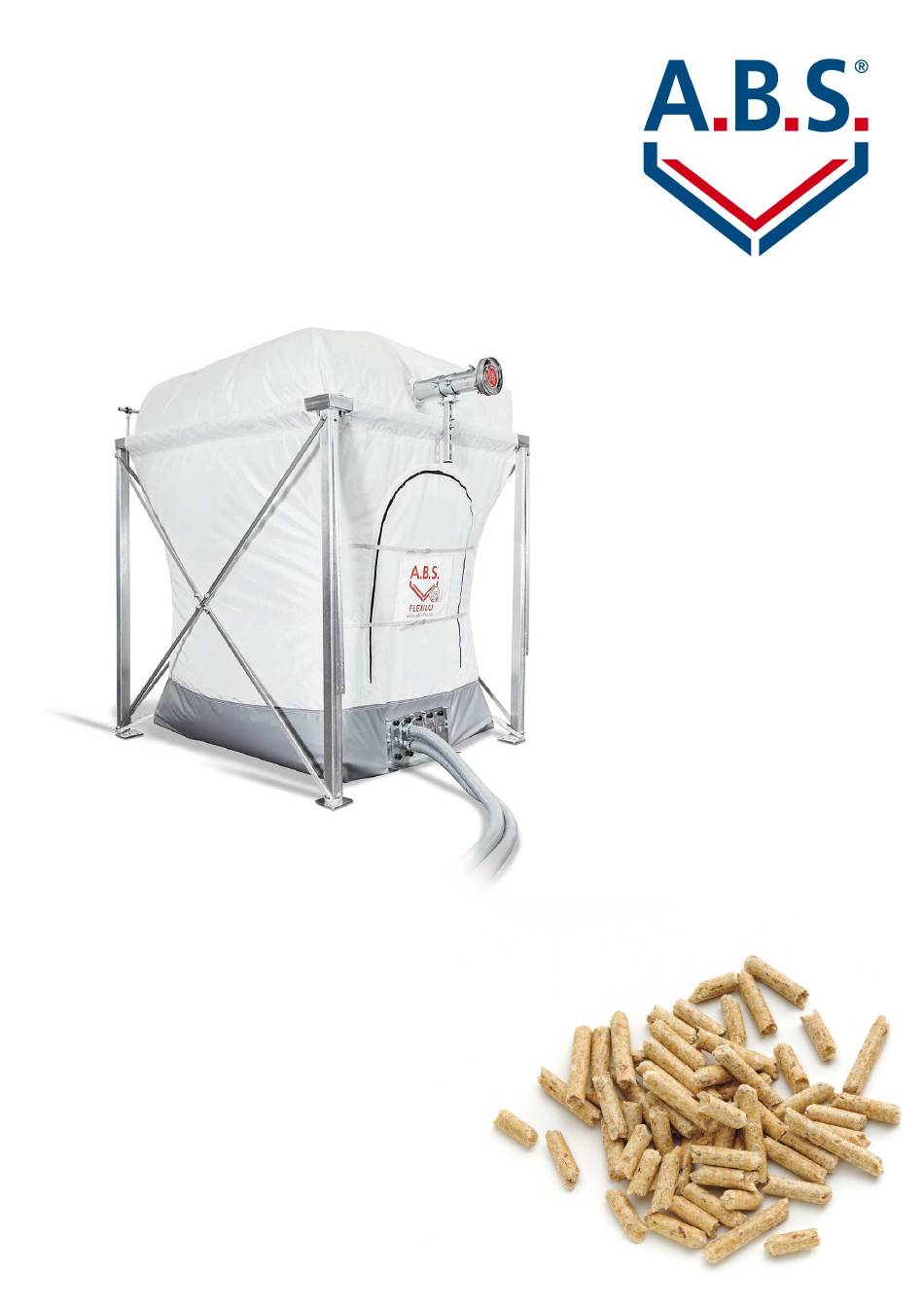

Assembly-, Operating-, and Filling Instructions
Flexilo FLAT BOTTOM for wood pellets
Construction: Plug-In System galvanized
Information on the manual:
The present assembly manual contains important information on safe and appropriate
assembly of the A.B.S. Flexilo FLAT BOTTOM for the storage of wood pellets.
The assembly manual is intended for skilled mechanics, which have,
based on expert training, the respective knowledge
and experience. As we are interested in continuously
improving our technical documentation, we would be
pleased to get suggestions for improvement.
The manual has to stay with the heating system or
the silo. Please make sure that the manual is at
any time on-hand if required.
A.B.S. Silo- und
Förderanlagen GmbH
Industriepark 100
74706 Osterburken - Germany
Tel.
+49 62 91/ 64 22-0
Fax
+49 62 91/ 64 22-50
info@abs-silos.de
www.abs-silos.de
