Summary of Contents for GST C-9602LW-CG
-
Page 2: Table Of Contents
CONTENTS Description ........ 1 Specification ......1 Structure ........2 Mounting and Wiring ....3 Application ......... 7 Troubleshooting ......8 VII Maintenance ......8 VIII Cautions ........9 Warranty Limited ..... 10... -
Page 3: I Description

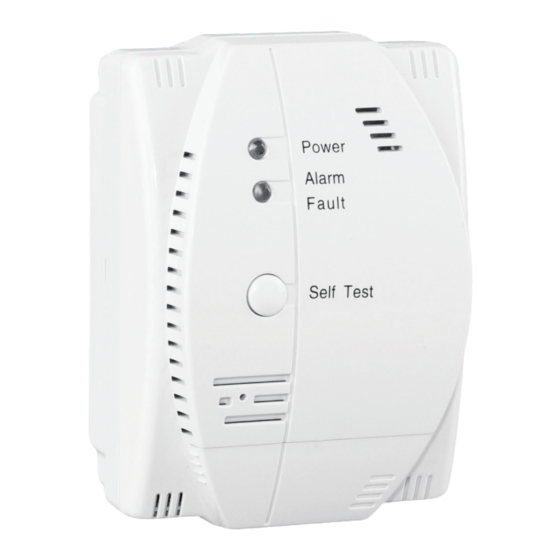

I Description C-9602LW-CG Conventional Gas Detector is wall-mounted, designed to check and monitor coal gas of leakage in such applications as houses, hotels and apartments. II Specification 1. Operating Voltage:187VAC~253VAC 2. Power Consumption: Standby State≤3.0 W Alarm State≤5.0 W 3. Output capacity and control mode: Voltage contact: For 12VDC one-way pulse solenoid, whose driving capability is 1000μF... -
Page 4: Structure
6. Buzzer: sounds twice every second when alarming, and once every three seconds in fault. 7. Self Test: Pressing Self-Test, the LEDs will flash in turn with the buzzer sounding three times. 8. Life of Sensor: 5 years 9. Operating Environment: Temperature: -10℃~ +50℃... -
Page 5: Mounting And Wiring
87mm 47mm Power Alarm Fault Self Test Sensor Fig. 1 IV Mounting and Wiring 1. Position of Mounting detector wall-mounted. Mounting position (Fig. 2) depends on where the gas stove is. There are still some principles to follow. The detector and the gas stove should be placed in the same room. - Page 6 ≥ 1.5m<L<4m Fig. 2 The detector should be within 1.5m ~4m to the gas resource or the gas stove. To correctly use the detector and avoid any possible fault, please do not mount the detector at following locations: a. Where affected by exhaust, steam or oil smoke from the stove.
- Page 7 c. Where near bathroom or places with a lot of vapor. d. Rooms for boiling water and places where power is cut at night. e. Where temperature is below -10℃ or over 50℃ or outdoors. f. Where explosion-proof measures are required.
- Page 8 Therefore, should opened when connecting cables. 3. Mounting Two mounting ways of C-9602LW-NG detector are shown in Fig. 4. Fig. 4a a) 将金属挂板用两个螺钉固定在墙面上； a. Hang the bracket on the wall. b) 将报警器背面边缘的凹槽对准金属挂板的固定 钩，向下压入固定。 b. Align the groove in back of the detector to the hook, press it down to fix.
-
Page 9: Application
a. Put the bracket in the groove of the detector (by default before leaving the factory). b. Install a screw on the wall with head about 6mm above the wall surface. c. Hang the detector with the bracket on the wall. -
Page 10: Troubleshooting
at this time, the solenoid has been closed, it will be kept closed, and you will have to pull it open manually. Fire Alarm Treatment When the detector goes into alarm, please immediately open the windows for ventilation; Cut gas source if there isn’t solenoid valve; Put out any fire;... -
Page 11: Cautions
avoid affecting normal monitoring of the sensor. In case of fault, never remove or open the detector by yourselves. Inform our company or our local office for repair. VIII Cautions 1. Don't install the detector at locations with high temperature (near stoves) or too much oil smoke (near kitchen... -
Page 12: Warranty Limited
IX Warranty Limited GST warrants that the product will be free from defects in design, materials and workmanship during the warranty period. This warranty shall not apply to any product that is found to have... - Page 13 Gulf Security Technology Co., Ltd. No. 80, Changjiang East Road, QETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502434 Fax: +86 (0) 335 8502532 service.gst@fs.utc.com www.gst.com.cn...
