- Page 1 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU...
-
Page 2: Table Of Contents
CONTENTS Description ..........1 Connection & Wiring ........1 Installation ..........2 Application ..........5 Maintenance ..........6 Caution............7 Specification..........8 VIII Limited Warranty ........9 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU... -
Page 3: I Description

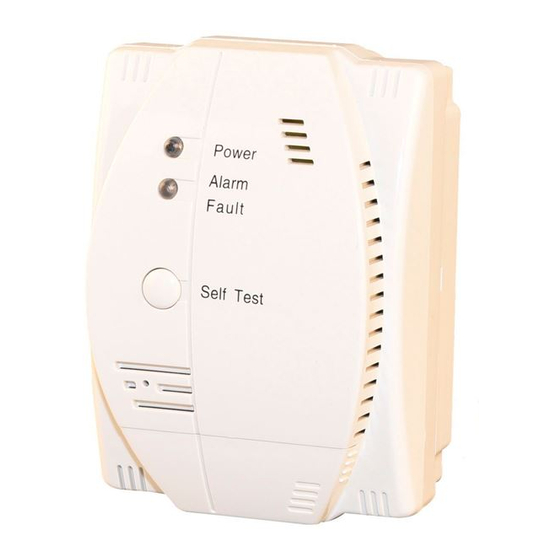

Description I-9602LW Addressable Gas Detector is used to detect leakage of natural gas in such areas as houses, hotels and apartments. II Connection & Wiring Terminal of the detector is as in Fig. 1. V- V+ Z1 Z2 K1 K2 D1 D2 Fig. -
Page 4: Installation
Recommended Wiring: The power cable connecting with D1 and D2 shall be 2.5mm or above flame-retardant copper-core. Cable connecting with Z1 and Z2, V+ and V- and shall 1.0mm above flame-retardant copper-core. III Installation The detector is suitable for the installation that cables are hidden behind it. - Page 5 Sensor Fig. 2 The detector is wall-mounted (Fig. 3) whose location should be decided according to the type of gas and the position of stove. But there are some general rules to follow: The detector should be placed in the same room with the stove.
- Page 6 To use the detector correctly and avoid any possible trouble, please do not mount the detector at the following locations: Where affected by smoke or vapor from the stove. Where near strong airflow, such as air-inlets, fans, doors, etc. Where near bathroom or places with a lot of vapor.
-
Page 7: Application
≥ 1.5m<L<4m Fig. 3 IV Application 1 Applying power supply to the detector after wiring and checking, the green LED will flash for 3 to 6 minutes for warm-up, and then it will Page 5 E-MAIL: hombi@hombi.ru HTTP://GSTRU.RU HTTP://WWW.HOMBI.RU... -
Page 8: Maintenance
illuminate steadily to indicate the detector has entered normal standby status. 2 If the detector alarms, the Alarm/Fault LED flashes red, and the buzzer sounds about twice every second. If the detector is in trouble, the Alarm/Fault LED illuminates yellow steadily, and the buzzer sounds once every 3 seconds. -
Page 9: Caution
VI Caution 1 Each type of detector can only detect the kind of gas nominated on its label. 2 Don't install the detector at locations with high temperature (near stoves) or too much smoke (near kitchen ventilator); Keep environment around the detector clean. -
Page 10: Specification
VII Specification Power Voltage 24VDC Loop Voltage Loop 24V Normal Standby ≤0.5W Power Consumption Alarm Power ≤3W Consumption Type of Gas Natural gas Alarm Threshold 6%LEL(methane) Life of the Sensor 5 years Ingress Protection IP30 Temperature -10℃～+50℃ Relative Humidity ≤95%, non-condensing Material and Color ABS, ivory white... -
Page 11: Limited Warranty
VIII Limited Warranty GST warrants that the product will be free from defects in design, materials and workmanship during the warranty period. This warranty shall not apply to any product that is found to have been improperly installed or used in any way not in accordance with the instructions supplied with the product. - Page 12 GST China Gulf Security Technology Co., Ltd. No. 80, Changjiang East Road, QETDZ, Qinhuangdao, Hebei, P. R. China 066004 Tel: +86 (0) 335 8502528 Fax: +86 (0) 335 8508942 Email: sales@gst.com.cn www.gst.com.cn GST UK Global System Technology PLC Enterprise Glade, Bath Lane, Moira, South Derbyshire, England.
