Summary of Contents for King Song KS-X1 PRO

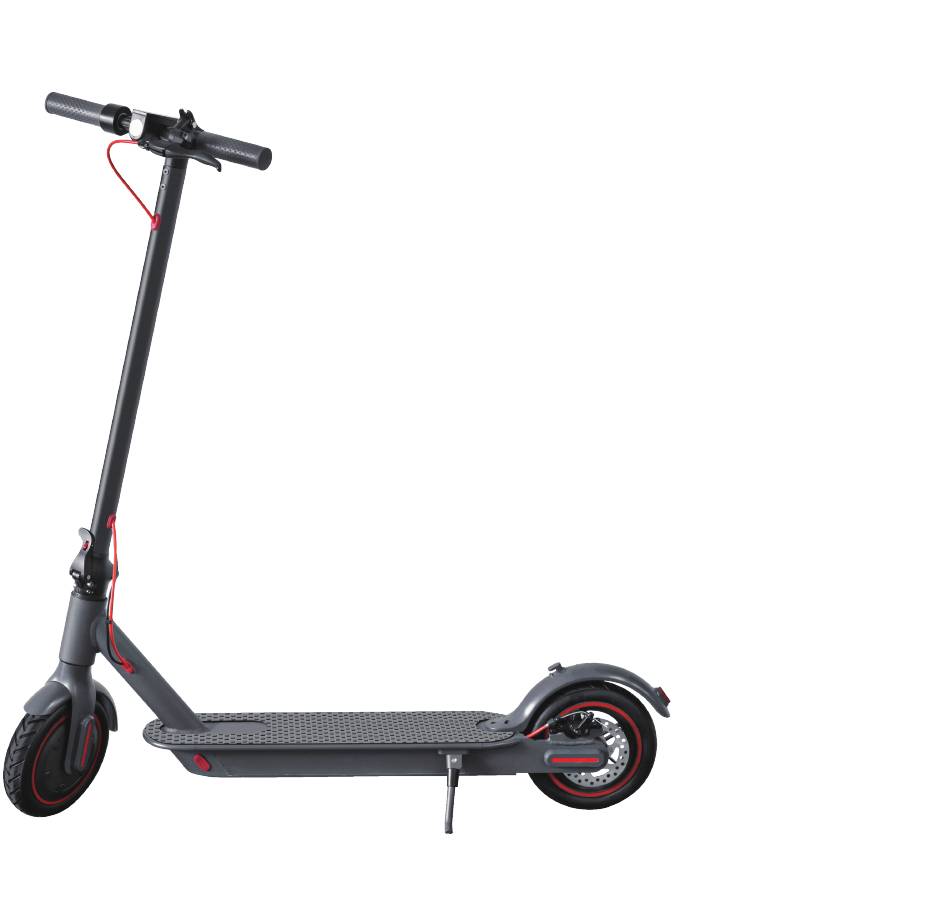

  • Page 1 KS-X1 PRO User Manual...
  • Page 3 Cautions Electric scooter is a recreational personal transporter. Before mastering riding skills, you need to do practice. You will be responsible for any injuries or damage caused by a rider’s inexperience or failure to follow the instructions in this manual. Please understand that you can reduce the risk by following all the instructions or warnings in this manual, but you cannot eliminate all the risks.
  • Page 4 Rainy, Snowfield, Grassland, Miriness, Fog, Smoke and so on. Please do not use the other chargers to charge E-scooter, Only use King Song supplied charger. Please do not charge E-scooter, if the charger or power outlet is wet.
  • Page 5: Table Of Contents

    Contents 1. Product Details--------------------------------------------------------01 2. Features ----------------------------------------------------------------04 3. Button Usage ----------------------------------------------------------05 4. Assembly and Set-up------------------------------------------------06 5. APP Usage ------------------------------------------------------------07 6. Folding and Carrying-------------------------------------------------17 7. Adjusting the disc brake--------------------------------------------18 8. Adjust the handlebar------------------------------------------------19 9. Battery ------------------------------------------------------------------19 10. Clean and Maintenance-------------------------------------------20 11. Warranty--------------------------------------------------------------22...
  • Page 6: Product Details

    1. The Device & Accessories 1.1 Diagram: KS-X1 PRO Accessories ----------------------------------------------------------------------------------- Screws Hex Wrench Valve Stem Extension Charging Adapter...
  • Page 7 1.2 Functions...
  • Page 8 1.3 Specifications KS-X1 PRO Model No 8.5 inch Inflatable Tyre Size 30 km/h Top Speed Around 45km Mileage Around 20° Gradeability 37V, 12.8Ah Battery Capacity -10℃/+80℃; 0-90% Humidity Running Condition -10℃/+50℃; 0-90% Humidity Storage Condition 125kg Max Load Input: 100-240V; Output: 42V/2A Charger Around 6hrs.
  • Page 9: Features

    Parking Mode Kick-stand Cruise Control System control Reminder Mechanical Bell Accelerator Throttle Button Brake EABS+Rear Disc Brake Display Battery Display 5 Bars in monitor Dimension(Unfold) 1130*430*1190mm Dimension(Folded) 1130*430*480mm Net Weight 14kg User Manual*1, Certificate*1, Charger*1, Packing List(pcs) Screws *4, Hex Wrench*1, Valve Stem Extension*1 2.
  • Page 10: Button Usage

    • Digital Speedometer Display, Easy to Read Speed. • Real-time 5 Bars Battery Display. • 1~3 Speed Gear, Press Button to Switch. • Malfunction Display. 3. Button Usage • Power ON/OFF: Long press the button for 3 seconds, all icons are lighting, showing speed & battery. km/h km/h •...
  • Page 11: Assembly And Set

    • Click the button for two times to change the speed gear from 1 to 3 levels, LED display ECO / D / S. Max speed is increasing when LED display from ECO to S. km/h km/h km/h 4. Assembly and Set-up 1.
  • Page 12: App Usage

    3. Tighten the screws onto 4. After the assembly, press both sides of the stem with the power button to check if the hexagon wrench it's working properly km/h 5. APP Usage 5.1 First Ride Mobile device Requirement: iOS 10.0 or above, Bluetooth 4.0 or above.
  • Page 13 APP, to ensure the APP can run normally in your mobile device. Open Bluetooth/location (or GPS), Click ‘Search’ - -> Click the corresponding model KS-X1 PRO in device list to connect. The E-scooter will beep when APP is connected with E-scooter.
  • Page 14 • Step 2: Wear protective equipment. • Step 3: Try to slide with one • Step 4: Touch the throttle leg. slightly and try to put two leg on the deck.
  • Page 15 • Step 5: During riding, try to • Step 6: Try to use the release the throttle and pull headlight. the brake lever. 5.3 Warnings • Wear protective equipment. • Do not ride in rainy or cross puddles.
  • Page 16 • Do not load over 125kg. • Ride slowly in special cases. • Do not place one foot on the • Do not tread the back of the deck or on the ground when fender. riding.
  • Page 17 • Do not touch the disc brake • Do not leave your hands during riding. • Do not ride upstairs or • Do not hold a child during downstairs, or over riding. obstacles.
  • Page 18 • Do not ride on highway or • Do not ride with sharp turn. motor vehicle road. 5.4 Cruise Control Open cruise-control in APP, while you keep the same speed, riding for 3~5 seconds, the E-scooter will be in cruise-control mode(running at constant speed on flat road) Please use cruise-control only on flat road, or you will fall down on other roads.
  • Page 19 5.5 Error Description Display Defect Description Solutions Wrong in 1. Check whether the display communication control board is well connected; 2. Replace the display. 3. Replace the control board. Encounter obstacles 1. Release the accelerator and that E-scooter can’t get stop braking.
  • Page 20 Low voltage alarm 1. Stop riding and get scooter charged. 2. Restart. 3. Check if firmware has been wrongly upgraded. 4. Replace the control board. High voltage alarm 1. Check whether scooter has been fully charged, riding the scooter at low speed, avoiding braking suddenly when scooter is fully charged.
  • Page 21 2. Check whether the motor wire is damaged, and whether the temperature signal wire of the motor wire is short-circuited to the ground. 3. Replace the motor. Control board high 1. Stop riding or riding scooter at temperature low speed, avoiding climbing. 2.
  • Page 22: Folding And Carrying

    Lack of phase, 1. Restart and turn scooter on as mos tube drive failure static, avoiding turning on scooter while advancing. 2. Replace the control board. Lack of series number 1. Check whether the firmware version is correct. 2. Reset the serial number. 6.
  • Page 23: Adjusting The Disc Brake

    Carry Hold the handlebar stem with either one hand or both hands to carry. 7. Adjusting the disc brake Brake Cable If the brake is too tight, use the hexagon wrench to loosen the screws on the caliper, and slightly send back the brake cable to shorten the exposed length, then tighten the screws.
  • Page 24: Adjust The Handlebar

    8. Adjust the handlebar If the handlebar and its stem sway during riding, use the hexagon wrench to tighten the screws on the folding mecha- nism. 9. Battery 9.1 Temperature Effect on Battery Battery power will vary with the temperature, mileage per charge will have slight difference under different temperature, and following table is just for your reference.
  • Page 25: Clean And Maintenance

    9.2 Charging The device has a built-in lithium battery, no extra battery installation is required, just charge the device when it indicateslow battery. Plug in the power source after inserting the charger plug, this can prevent potential risk to ensure a safer charger. It takes around 6hrs to get 100% charged, when the red lights turn into green, indicating the charging is completed.
  • Page 26 • Please use soft cloth to clean the E-scooter. • Please don’t use water to wash the E-scooter or place E-scooter in water. When storage • Please place the E-scooter in cool and ventilate places (temperature -10~50℃, relative humidity 0~90%). •...
  • Page 27: Warranty

    E-scooter run abnormally, as well as providing the serial number. 11. Warranty 11.1 Limited Warranty Sellers warrant the EUC by following limits. Motor, Controller board for 365 days from the item departure from factory. Battery package for 183 days from the item departure from factory.
  • Page 28 Kingsong Intell Co.,LTD Address : BLDG 7, NO 71 XINGHU RD, 8TH INDUSTRY PARK, HONGXING, YUTANG,GUANGMING,SHENZHEN Tel : +86-755-23193477 Fax : +86-755-23193248 E-mail : info@szkingsong.com...
