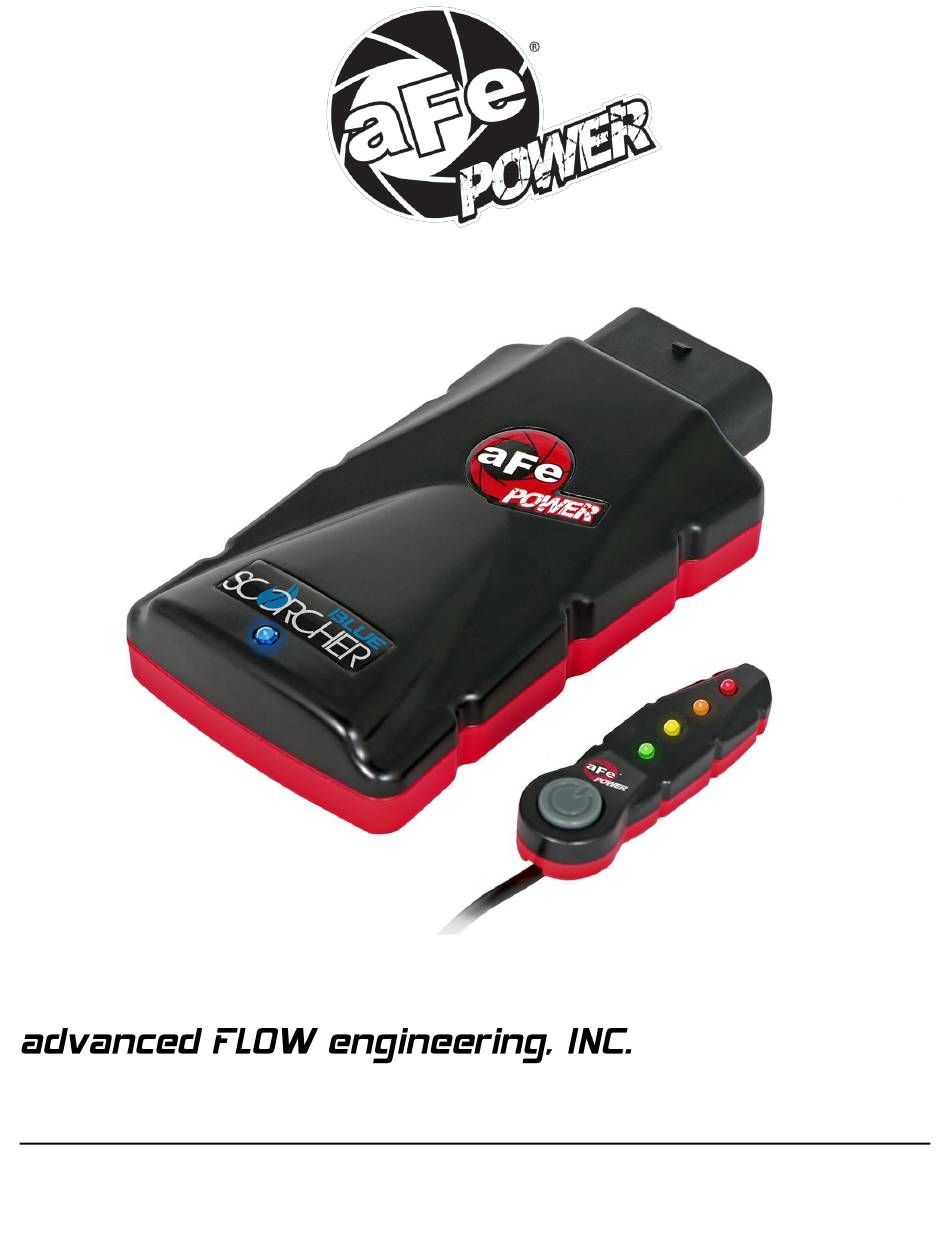

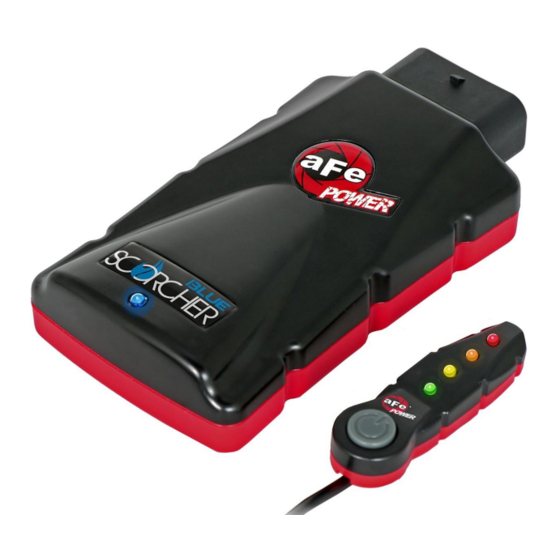

- Page 1 SCORCHER BLUE Bluetooth Power Module Instruction Manual P/N: 77-86004 ________________________ _____ Make: Toyota Model: Supra (A90) Year: 2020 Engine: L6-3.0L(t)
- Page 2 DISCLAIMER OF WARRANTY AND LIMITATION OF LIABILITY: Advanced FLOW Engineering, Inc. (also known as aFe or aFe POWER) and its successors, distributors, jobbers, and dealers (hereafter “SELLER”) shall in no way be responsible for the product’s improper use and service. It is the installer’s responsibility to check for proper installation and if in doubt, contact the manufacturer.
- Page 3 Label Qty. Description Part Number Module R77-86004 LED Switch 05-70029 Bypass Plug 05-70017 Harness AFE-10-203 Velcro (2” Inches) 05-01244 Cable Ties 05-60167 Double Sided Tape 07-90001 Page 3...
- Page 4 Figure A Refer to Figure A for Step 1 Step 1: Before installing your aFe POWER module, you will have to place your vehicle’s ECU in sleep mode. In order to do this, you will need to do the following: •...
-
Page 5: T-Map Sensor
REMOVAL MAP Sensor T-MAP Sensor Figure B Refer to Figure B for Steps 2-3 Step 2: Remove engine cover to gain access to the MAP and T-MAP sensors. Step 3: Locate the MAP and T-MAP sensors. MAP sensor is located on top of the intake manifold in proximity to the oil cap. - Page 6 Step 5: Locate the MAP sensor jumper harness on the aFe POWER harness. It is identified with a white label. Plug the female connector of the aFe POWER harness into the MAP sensor, then take the male connector of the aFe POWER harness and connect to the female connector of the engine harness.
- Page 7 INSTALL Figure D Refer to Figure D for Step 6 Step 6: Check with Figure D to make sure the connectors are correctly connected. Make sure that the connections are fully engaged. Usually, connectors make a snapping sound when fully engaged. Page 7...
- Page 8 Step 8: Locate the T-MAP sensor jumper harness on the aFe POWER harness. It is labeled T-MAP. This is the harness with four wires in each connector. Plug the female connector of the aFe POWER harness into the T-MAP sensor, then the male connector of the aFe POWER harness into the female connector of the engine harness.
- Page 9 INSTALL Figure F Refer to Figure F for Step 9 Step 9: Check with the pictures to make sure the connectors are correctly connected. Make sure that the connections are fully engaged. Usually, connectors make a snapping sound when fully engaged. Page 9...
- Page 10 Step 10: Battery positive terminal is located on the passenger side towards the firewall. Connect the red wire of the aFe POWER harness to the battery positive terminal. Step 11: Connect the back ground wire of the aFe POWER harness to the ground bolt on the fuel pressure line.
- Page 11 INSTALL Figure H Refer to Figure H for Step 12-13 Step 12: Secure the Scorcher Blue module on top of the plastic cover near the strut tower on the driver side using the supplied Velcro. The module must be located within reach of the LED switch harness if being used.
- Page 12 INSTALL Figure I Refer to Figure I for Step 14 (Optional) Note: Installation of the LED switch is optional if using the Bluetooth app. Step 14: Remove the plastic cover by turning knob counter-clockwise to gain access to wire-routing slot in the firewall.
- Page 13 INSTALL Figure J Refer to Figure J for Step 15 (Optional) Step 15: Locate hole behind the firewall leading into the driver side footwell. Route the cable from the LED switch from the cabin to the engine compartment. Page 13...
- Page 14 INSTALL Figure K Refer to Figure K for Steps 16-17 (Optional) Step 16: Carefully route the switch cable behind steering wheel cover. Step 17: Mount the switch on an open, flat surface. Page 14...
- Page 15 INSTALL INSTALL Figure H Figure L Refer to Figure L for Steps 18-20 Step 18: Connect the harness from the LED switch to the Scorcher module. Step 19: Reinstall the plastic cover on the driver side and turn the knob clockwise to lock it into place. Step 20: Reinstall engine cover.
- Page 16 Figure M Refer to Figure M (Picture is for reference) The blue LED light will start flashing once the module is connected to the car and the ECU is on. The blue LED will become solid if the module gets connected through Bluetooth to a device Page 16...
- Page 17 Figure N Refer to Figure N (LED Switch) When turning on the vehicle, each LED will flash, and it will stop at its last setting. The LED on the switch represents the different level of power. • Green LED: Stock •...
- Page 18 Figure O Refer to Figure O* (app connection-iOS) For iOS devices, download the app from the apps store. Make sure the Bluetooth is activated on your device. Open the app and it will automatically connect through Bluetooth to the SCORCHER BLUE module when both the vehicle and module are on. When connected, the vehicle description will appear on top of the screen and the gauges will show current data.
- Page 19 Figure P Refer to Figure P* (app connection-Android) For Android devices, download the app from the play store. For the initial connection, go to the Bluetooth settings of your device, turn on Bluetooth and scan for available devices. Select “aFe SCOR” and pair with device. The vehicle needs to be on and the module connected.
- Page 20 Figure Q Refer to Figure Q (Custom Tuning) The aFe POWER SCORCHER BLUE app offers the capability to custom tune the different modes. Go to the menu on the top right corner and select “Tune”. Select the mode you would like to custom tune and adjust the sliders at low, medium, and high load.
- Page 21 Use the aFe POWER SCORCHER BLUE app responsibly. Always drive safely and obey traffic laws. aFe POWER is not responsible for any accidents, injuries, or property damage that may occur during its use.
- Page 22 Figure S Refer to Figure S (Bypass Plug) A bypass plug is included in the kit. The plug can be connected to the harness instead of the module. Once the bypass plug is connected, the vehicle will run in factory settings. Make sure the plug is fully engaged when connected to the harness.
- Page 23 Page left blank intentionally. Page 23...
- Page 24 Page left blank intentionally. Page 24...
- Page 25 Page left blank intentionally. Page 25...
- Page 26 Pro 5R Air Filter BladeRunner Intercooler Tube Takeda Momentum Intake System Sprint Booster P/N: 30-10296 P/N: 46-20398-B P/N: 56-70015R P/N: 77-16510 Blue Squeeze Restore Kit Takeda Cat-Back Exhaust aFe Control Front Sway Bar aFe Control Rear Sway Bar P/N: 90-50501 P/N: 49-36043-C P/N: 440-721001FL P/N: 440-721001RL...
-
Page 27: Warranty
Warranty General Terms: • aFe warrants their products to be free from manufacturer’s defects due to workmanship and material. • This warranty applies only to the original purchaser of the product and is non-transferrable. • Proof of purchase of the aFe product is required for all warranty claims. •... - Page 28 252 Granite Street Corona, CA 92879 TEL: 951.493.7100 • TECH: 951.493.7185 E-Mail:Tech@aFepower.com P/N: 06-81332...
