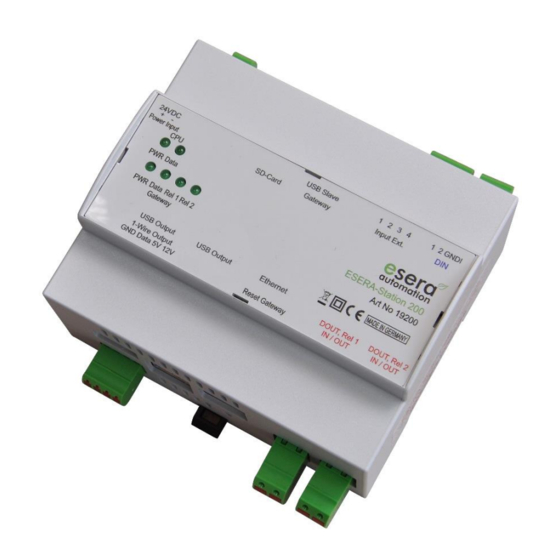

esera automation Station 200 User Manual

Art. No. 19200 VNC IPS
 Open system hardware and software
central control for smart home, building
automation, IoT and commercial automation
 Hybrid structure consisting of embedded
computer and 1-Wire Gateway
 Powerful, modern quad core computer with
1.4GHz CPU speed
 Fast readout of all 1-Wire devices in
1-2 seconds cycle
 Data exchange between 1-Wire Gateway and
computer via Modbus or text protocol
 Extensive 1-Wire libraries for sensors and
actuators
 2 x binary output 16A
 2 x binary input 10-30VDC
 2 x system clocks with power failure buffer
 Comfortable configuration program for
1-Wire Gateway and interface parameters
 24V power supply for embedded computer and
1-Wire Gateway
 Designed for all 1-Wire network sizes
 Top-hat rail housing for control cabinet
installation
1

Introduction

Before you start to install the ESERA-Station 200 and put the device into operation, please read these
operating instructions carefully through to the end, especially the section on safety instructions.
2

Product description

The ESERA-Station is a modern and open system hybrid system consisting of two modules, a powerful
1-Wire gateway and an embedded computer.
Both modules are internally connected via serial data interface and power supply.
Each module has its own power supply unit and a system clock (real time clock) with power failure buffering
by a low-maintenance high-performance capacitor (gold cap).Die ESERA-Station ist ein modernes und
systemoffenes Hybridsystem, dass aus zwei Baugruppen, einem leistungsfähigen 1-Wire Gateway und
einem Embedded Computer.
3

IP-Adresses

On delivery, the ESERA-Station is set to DHCP for LAN and WLAN interface.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH, ESERA-Automation 2020
www.esera.de
ESERA-Station 200
Commissioning I
VNC IPS Manual
19200 V1.0 R1.0 Commissioning I Page 1 of 5
