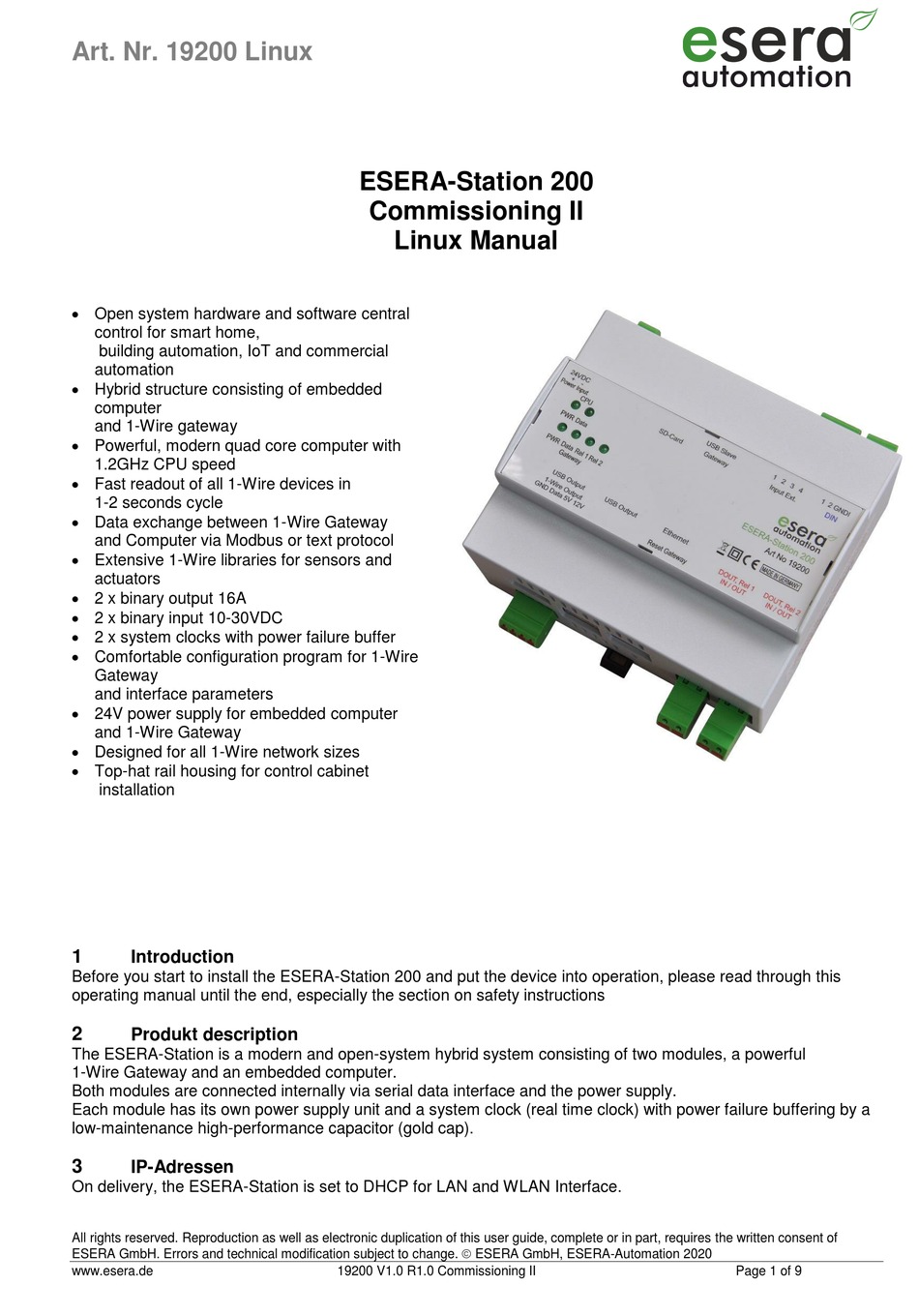

Art. Nr. 19200 Linux
Open system hardware and software central
control for smart home,
building automation, IoT and commercial
automation
Hybrid structure consisting of embedded
computer
and 1-Wire gateway
Powerful, modern quad core computer with
1.2GHz CPU speed
Fast readout of all 1-Wire devices in
1-2 seconds cycle
Data exchange between 1-Wire Gateway
and Computer via Modbus or text protocol
Extensive 1-Wire libraries for sensors and
actuators
2 x binary output 16A
2 x binary input 10-30VDC
2 x system clocks with power failure buffer
Comfortable configuration program for 1-Wire
Gateway
and interface parameters
24V power supply for embedded computer
and 1-Wire Gateway
Designed for all 1-Wire network sizes
Top-hat rail housing for control cabinet
installation
1
Introduction
Before you start to install the ESERA-Station 200 and put the device into operation, please read through this
operating manual until the end, especially the section on safety instructions
2
Produkt description
The ESERA-Station is a modern and open-system hybrid system consisting of two modules, a powerful
1-Wire Gateway and an embedded computer.
Both modules are connected internally via serial data interface and the power supply.
Each module has its own power supply unit and a system clock (real time clock) with power failure buffering by a
low-maintenance high-performance capacitor (gold cap).
3
IP-Adressen
On delivery, the ESERA-Station is set to DHCP for LAN and WLAN Interface.
All rights reserved. Reproduction as well as electronic duplication of this user guide, complete or in part, requires the written consent of
ESERA GmbH. Errors and technical modification subject to change. ESERA GmbH, ESERA-Automation 2020
www.esera.de
ESERA-Station 200
Commissioning II
Linux Manual
19200 V1.0 R1.0 Commissioning II
Page 1 of 9
Advertisement
Related Manuals for esera automation Station 200
Summary of Contents for esera automation Station 200
- Page 1 Top-hat rail housing for control cabinet installation Introduction Before you start to install the ESERA-Station 200 and put the device into operation, please read through this operating manual until the end, especially the section on safety instructions Produkt description The ESERA-Station is a modern and open-system hybrid system consisting of two modules, a powerful 1-Wire Gateway and an embedded computer.
-
Page 2: Access Data
Commissioning Please start with the commissioning of ESERA-Station 200 with the 1-Wire Gateway. To do so, connect to the Config Tool 3 via USB cable, which you can download from our website. Here you can find the Config Tool 3: https://www.esera.de/produkte/software/downloads-firmware-1-wire-... - Page 3 Assign a password for access. (optional for the view access) vncpasswd If you now want to access the ESERA-Station 200 remotely via VNC, a session must first be started there. This is done by entering: vncserver :1 -geometry 1200x800 -depth 24...
- Page 4 Autostart of VNC Server via systemd-Service To start the TightVNCServer automatically at boot time, the systemd service is required. This variant of the VNC start has the advantage that you can control it a bit more finely, if you dare to do so from the command line. First we create a new file in the systemd system directory: sudo nano /etc/systemd/system/vncserver@.service The content of the file looks like this::...
- Page 5 Art. Nr. 19200 Linux System clock Installation The following system configurations are necessary to integrate the ESERA-Station System Clock (type DS1307) into the Raspian. Please note that the system clock is already installed at delivery. Add Hardware Clock DS1307 Start the LX Terminal and enter he following commands:. sudo apt-get update &&...
-
Page 6: Set System Clock
If you want to change the system time (and time zone!), you should do this via sudo raspi-config before you synchronize the times. Now to set the system time automatically at every reboot we have to write a set command in the autostart. For this we edit the file:: sudo nano /etc/rc.local Before exit 0 we add the following two lines:... - Page 7 Please note that this command will upgrade not only IP-Symcon but also the entire Linux distribution. sudo apt-get dist-upgrade IP-Symcon Software moduls In order to be able to integrate the ESERA 1-Wire Controller, 1-Wire Gateway and ESERA-Station 200 into IP-Symcon, we provide libraries via Github server. ESERA IP-Symcon Moduls https://github.com/ESERA-Automation/IPS-Module.git...
- Page 8 ESERA Skins for IP-Symcon We provide three different green Skins via github server Dark Green https://github.com/ESERA-Automation/ESERA-skin-dark-green.git ESERA Green https://github.com/ESERA-Automation/ESERA-skin-green.git ESERA-british-racing-green https://github.com/ESERA-Automation/ESERA-british-racing-green.git Assembly The installation site must be protected from moisture. The device may only be used in dry indoor rooms. The device is intended for mounting inside a switch cabinet as a stationary device.
- Page 9 Art. Nr. 19200 Linux consequential damages, damages resulting from unauthorized usage and other legal grounds are excluded. Excepting to this, ESERA GmbH accepts liability for the absence of a guaranteed quality resulting from intent or gross negligence. Claims made under the Product Liability Act are not affected. If defects occur for which the ESERA GmbH is responsible, and in the case of replacement goods, the replacement is faulty, the buyer has the right to have the original purchase price refunded or a reduction of the purchase price.
