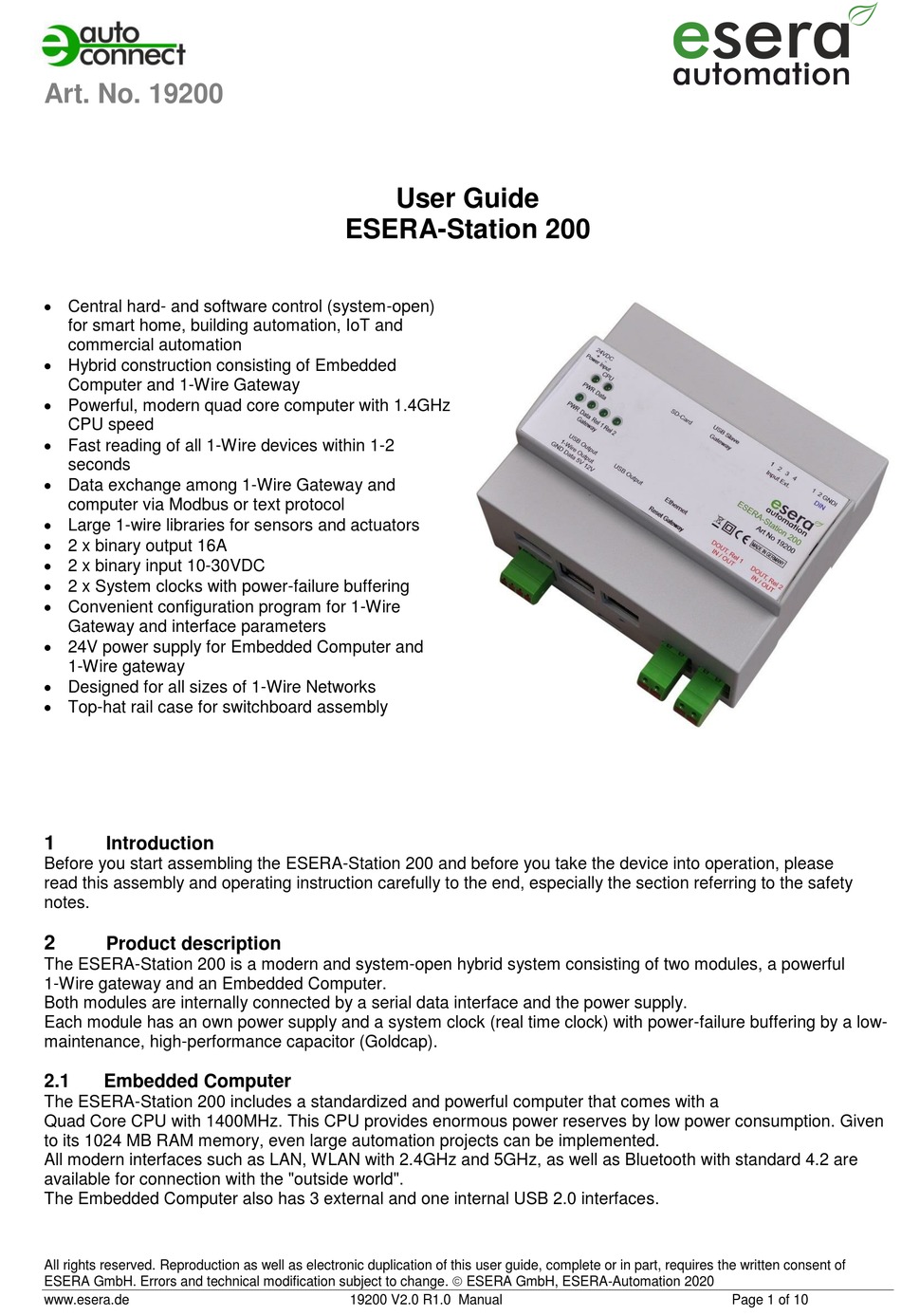

esera automation Station 200 User Manual

Art. No. 19200
 Central hard- and software control (system-open)
for smart home, building automation, IoT and
commercial automation
 Hybrid construction consisting of Embedded
Computer and 1-Wire Gateway
 Powerful, modern quad core computer with 1.4GHz
CPU speed
 Fast reading of all 1-Wire devices within 1-2
seconds
 Data exchange among 1-Wire Gateway and
computer via Modbus or text protocol
 Large 1-wire libraries for sensors and actuators
 2 x binary output 16A
 2 x binary input 10-30VDC
 2 x System clocks with power-failure buffering
 Convenient configuration program for 1-Wire
Gateway and interface parameters
 24V power supply for Embedded Computer and
1-Wire gateway
 Designed for all sizes of 1-Wire Networks
 Top-hat rail case for switchboard assembly
1
Introduction
Before you start assembling the ESERA-Station 200 and before you take the device into operation, please
read this assembly and operating instruction carefully to the end, especially the section referring to the safety
notes.
2
Product description
The ESERA-Station 200 is a modern and system-open hybrid system consisting of two modules, a powerful
1-Wire gateway and an Embedded Computer.
Both modules are internally connected by a serial data interface and the power supply.
Each module has an own power supply and a system clock (real time clock) with power-failure buffering by a low-
maintenance, high-performance capacitor (Goldcap).
2.1 Embedded Computer
The ESERA-Station 200 includes a standardized and powerful computer that comes with a
Quad Core CPU with 1400MHz. This CPU provides enormous power reserves by low power consumption. Given
to its 1024 MB RAM memory, even large automation projects can be implemented.
All modern interfaces such as LAN, WLAN with 2.4GHz and 5GHz, as well as Bluetooth with standard 4.2 are
available for connection with the "outside world".
The Embedded Computer also has 3 external and one internal USB 2.0 interfaces.
