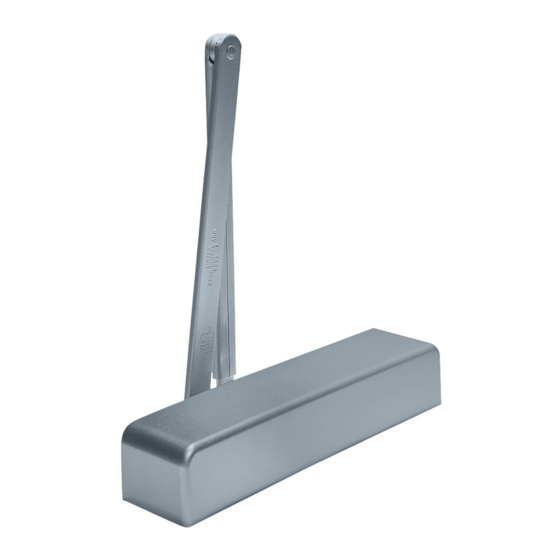

- Page 1 8900 EMF Surface Applied Closer (no Detector) Installation instructions 08281000 – 03-2020 | EN |...
-
Page 2: Table Of Contents
8900 EMF Installation Instructions Table of Contents Table of contents 1 Technical specifications Preparation notes Installation instructions Install closer to door Remove wire access plug Secure track to frame Set up wire connections Secure main arm Secure arm to slide shoe... -
Page 3: Technical Specifications
8900 EMF Installation Instructions Technical specifications 1 Technical specifications 1.1 Preparation notes Each (HO) hold open unit contains a door closer Reference unit carton for unit mounting style and and track assembly with hold open voltage. electromagnet. The unit can be connected Prepare door and frame for fasteners using the directly to a fire control panel. -
Page 4: Installation Instructions
8900 EMF Installation Instructions Closer Wire access plug Installation instructions 2.1 Install closer to door Fig.1 8900T and 8900DE Hinge Hinge Left hand door Right hand door Hinge 8900PT Hinge Left hand door Right hand door 2.2 Remove wire access plug Fig.2... -
Page 5: Secure Track To Frame
8900 EMF Installation Instructions Track Wire connections 2.3 Secure track to frame Fig.3 8900T and 8900DE End cap End cap Hinge 8900PT End cap 2.3.1 8900T and 8900DE: 2.3.2 8900PT: • Install the wire access plugs toward latch edge •... -
Page 6: Secure Main Arm
8900 EMF Installation Instructions Main arm 2.5 Secure main arm Fig.5 8900T 2.5.1 With door in closed position, 6mm hex key rotate spindle 45° with wrench. 2.5.2 Place arm on Left hand door Right hand door spindle parallel to door. -
Page 7: Adjustments
8900 EMF Installation Instructions Adjustments: closing speeds Adjustments: spring force Adjustments 3.1 Adjust closing speeds: sweep, latch, backcheck, delayed action Fig.7 Backcheck Latch Delayed action Backcheck positioning valve Delayed action Sweep Backcheck intensity Sweep Decrease Sweep & Latch Latch... -
Page 8: Adjust Hold Open
8900 EMF Installation Instructions Adjustments: hold open Auxiliary stop Bypass switch 3.3 Adjust hold open Fig.9 Hold open position is preset at approximately 90°. Loosen set screws using 3/32” hex wrench. Slide hold open device to desired position. Retighten set screws securely. -
Page 9: Final Steps
8900 EMF Installation Instructions Final steps Operation Final steps 5.1 Determine power supply Fig.12 UL listed alarm NOTE: This Incoming control unit or connection is not Bypass power smoke detector polarity dependent. switch connection Terminal block 18 AWG max. - Page 10 DORMA USA, Inc. 1 Dorma Drive, Drawer AC Reamstown, PA 17567 T: 717-336-3881 F: 717-336-2106 www.dormakaba.com...
