Dormakaba SafeRoute STL-G Series Mounting Instructions

Contents
1 About this document
2 Safety
3 Product description
4 Mounting
5 Disassembly, recycling and disposal
1

About this document

1.1 Contents and purpose
This document describes the mounting of the
STL-G door terminal with a profile cylinder and the
connection to a SafeRoute® system.
1.2 Target group
This document is intended for assembling technicians
and specialists authorized to carry out installation by
dormakaba.
1.3 Other applicable documents:
The following documents belong to the unit's
complete documentation and must be observed:
• The optional accessory components' assembly
instructions and documents
• The SafeRoute® system manual
• The respective door unit's inspection log
• The approved components' declaration of
conformity
1.4 Documents storage
This document must be handed over to the facility
operator after mounting and commissioning.
STL-G/STL-G NT
Mounting instructions
1.5 Symbols used
1.5.1 Hazard categories
1
1
2
WARNING
4
12
This signal word indicates a possible
hazardous situation which may result in
death or serious injury if not averted.
1.5.2 More symbols
1. 2.
Sequence of action steps
6
Reference to a chapter
Components may be damaged by
electrostatic discharge. Ground
your own body before touching a
component!
2

Safety

2.1 Intended use

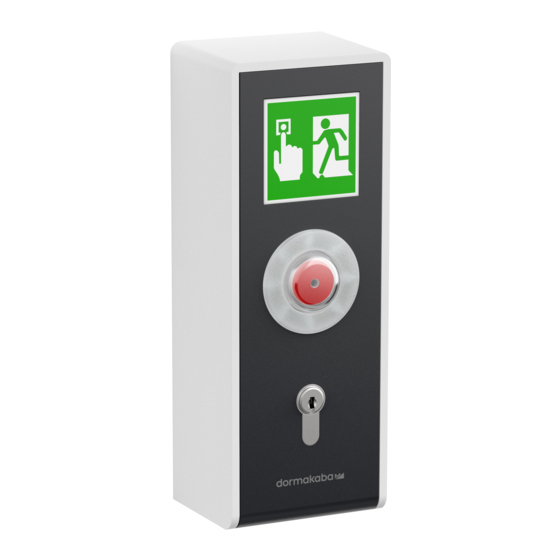

The STL-G is a door terminal for operating and/or
controlling dormakaba's SafeRoute® electrical locking
system.
2.2 Personnel qualification
Mounting may only be carried out by persons
authorized by dormakaba.
WN 059727 45532/15191
2020-07
EN
