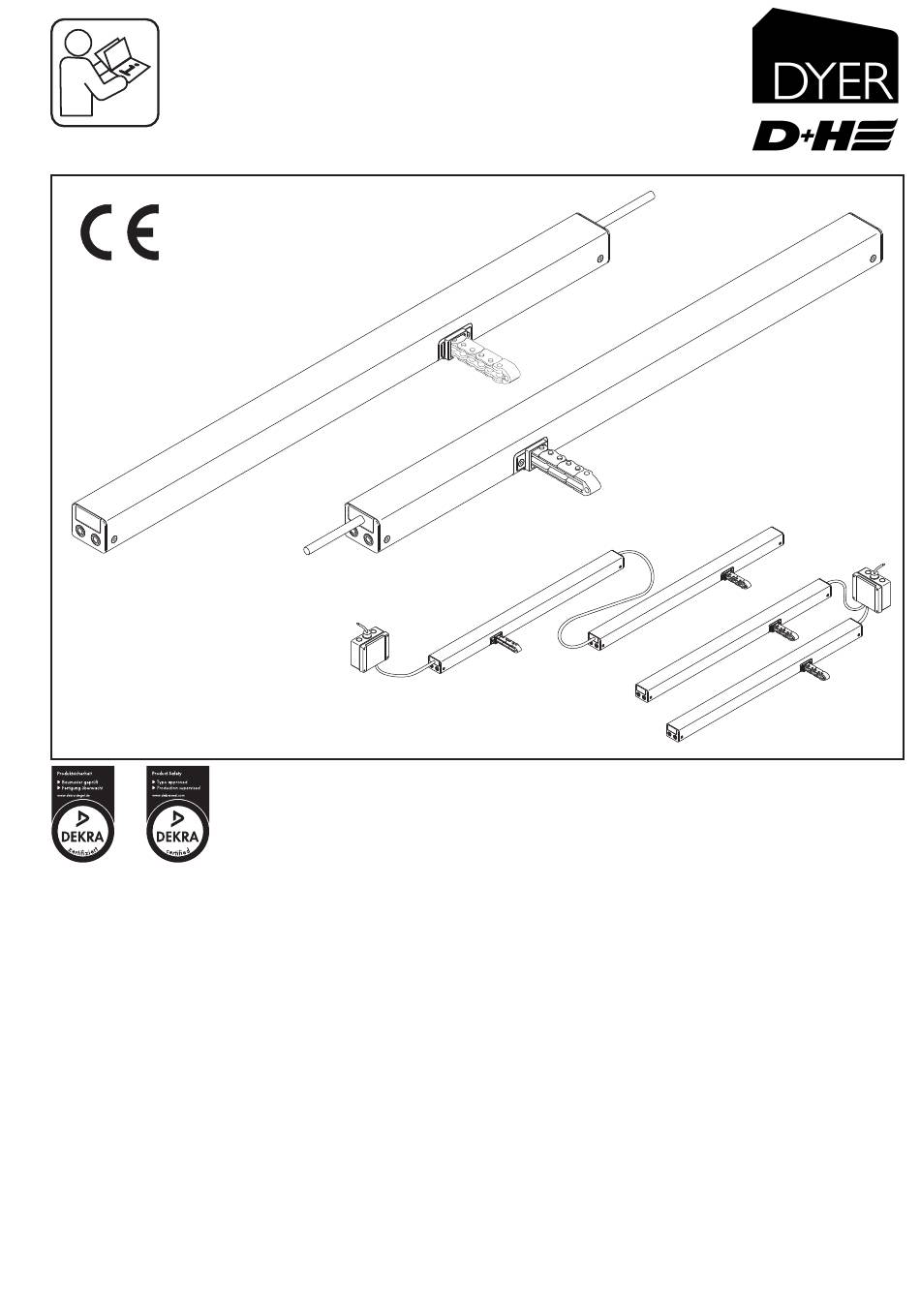

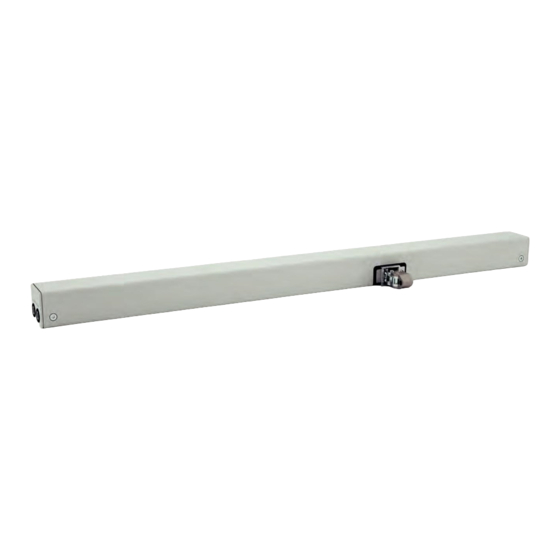

- Page 1 CDC-0252-1-ACB instructions Standard version "-R“ Mirrored version (option "-L") Please order bracket sets separately...
- Page 2 WARNING Intended use Read all safety warnings, instructions, illustrations - Chain drive for electric opening and closing of and specifications provided with this product. windows and flaps in the facade and roof area Failure to follow all instructions listed below may - Operating voltage 24 V DC result in electric shock, fire and/or serious injury.
- Page 3 Technical Data Type CDC-0252-0350-1-ACB CDC-0252-0500-1-ACB CDC-0252-0600-1-ACB CDC-0252-0800-1-ACB Power supply 24 V DC / ± 15 % Nominal force 250 N** Nominal current 0,6 A 0,8 A 1,0 A Nominal stroke length* 350 mm ± 2 % 500 mm ± 2 % 600 mm ±...
- Page 4 Mounting information Functional description - The drive set is fully configured ex factory.The ACB bus interface drives must be reconfigured using SCS in the ACB is used for secure communication between the event of changes to the ex-factory configuration drive and compatible D+H control systems. It (e.g.
- Page 5 Maintenance and cleaning Guarantee Maintenance work is only allowed when the device is in You will get 2 years guarantee for all D+H products a de-energized condition! Inspection and maintenance from date of verified handing over of the system up to has to be carried out according to D+H maintenance maximal 3 years after date of delivery, when notes.
- Page 6 Connection EM 47 K * Junction box CDC-0252-1 BSY+.b (GN) BSY+.a (YE) 1 drive Mot. b (BN) Mot. a (WH) ACB.b (GY) ACB.a/HS (OG) High-Speed **** Normal mode 24 V DC High-Speed Mot. a Mot. b N– A E/X (WH) (BN) 24 V DC SHEV- fast running...
- Page 7 Connection 2 drives star-shaped EM 47 K * Junction box CDC-0252-1 BSY+.b (GN) BSY+.a (YE) Mot. b (BN) Mot. a (WH) ACB.b (GY) ACB.a/HS (OG) High-Speed CDC-0252-1 BSY+.b (GN) BSY+.a (YE) Mot. b (BN) High-Speed Mot. a (WH) ACB.b (GY) ACB.a/HS (OG) High-Speed...
- Page 8 GN (BSY+.b) WH (Mot. a) (WH) white (BN) brown (OG) orange (YE) yellow (GN) green (PK) pink (GY) grey Dyer Environmental Controls Ltd Unit 10 Lawnhurst Trading Estate, Cheadle Heath, Stockport SK3 0SD +44 (0)161 491 4840 Tel: E-Mail: enquiry@dyerenvironmental.co.uk www.dyerenvironmental.co.uk...
