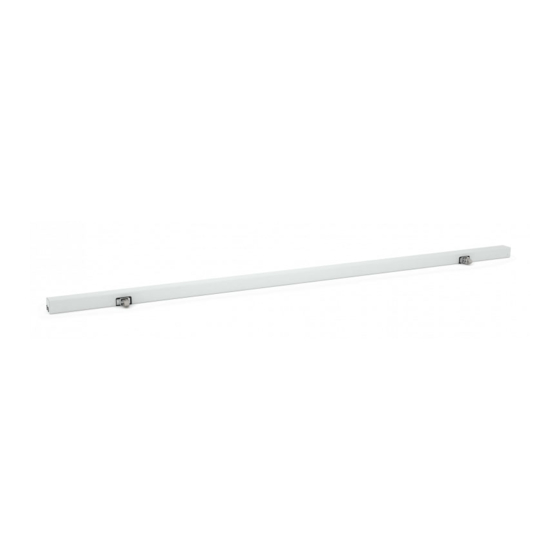

Summary of Contents for Dyer CDC-TW-0502-0500-1-ACB

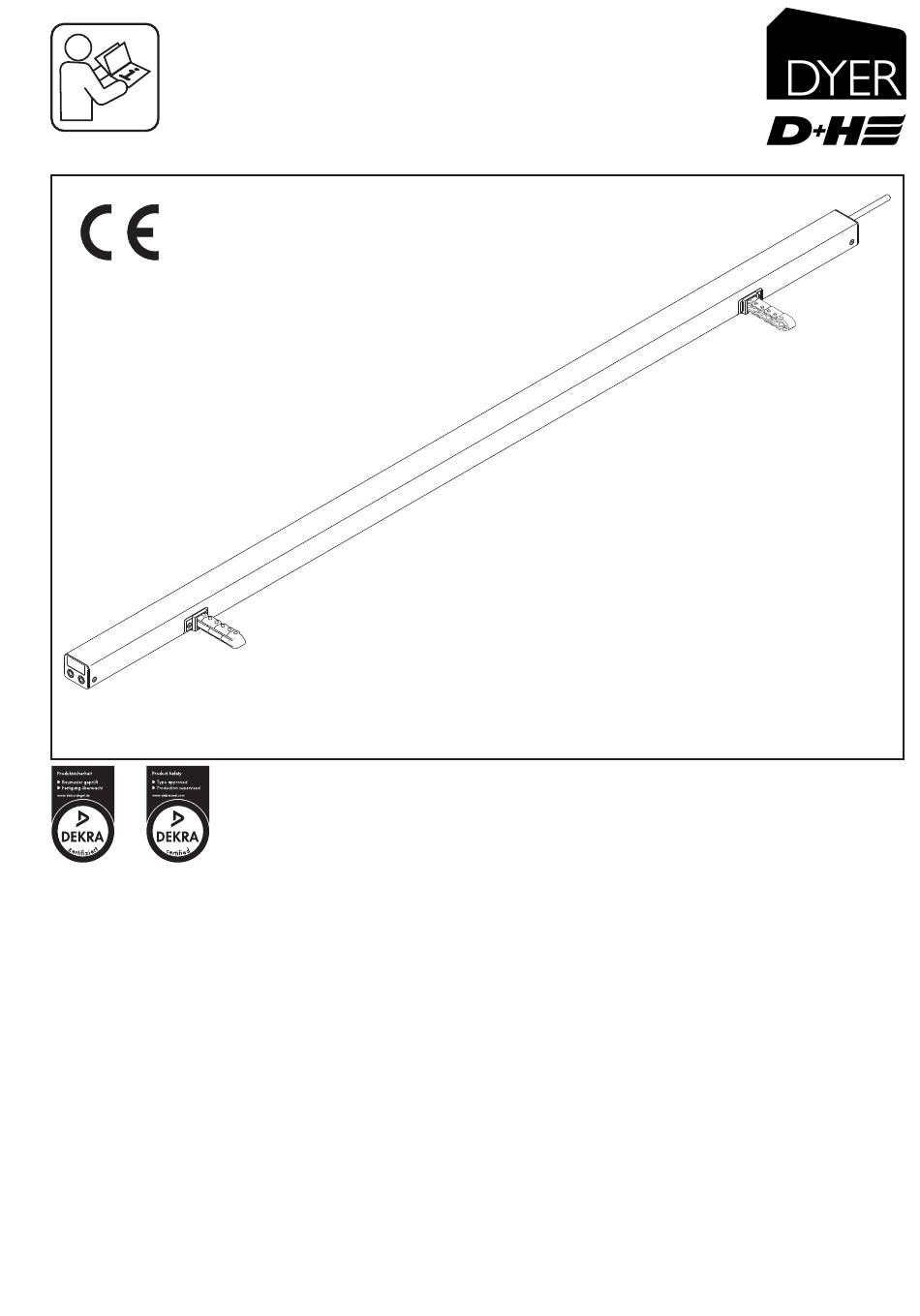

- Page 1 CDC-TW-0502-1-ACB instructions Please order bracket sets separately...
- Page 2 WARNING Intended use Read all safety warnings, instructions, illustrations - Chain drive for electric opening and closing of and specifications provided with this product. windows and flaps in the facade and roof area Failure to follow all instructions listed below may - Operating voltage 24 V DC result in electric shock, fire and/or serious injury.
-
Page 3: Technical Data
Technical Data Type CDC-TW-0502-0500-1-ACB CDC-TW-0502-0800-1-ACB Power supply 24 V DC / ± 15 % Nominal force 2x 250 N** 1,6 A 2,0 A Nominal current Nominal stroke length* 500 mm ± 2 % 800mm ± 2 % Running speed: ventilation (SHEV high-speed function)*... -
Page 4: Mounting Information
Mounting information Functional description - Mount the drives whilst under zero stress. With ACB bus interface that, an even load distribution is provided by all ACB is used for secure communication between the the drive chains. drive and compatible D+H control systems. It - At vertical active pulling application (e.g. -
Page 5: Maintenance And Cleaning
Maintenance and cleaning Guarantee Maintenance work is only allowed when the device is in You will get 2 years guarantee for all D+H products a de-energized condition! Inspection and maintenance from date of verified handing over of the system up to has to be carried out according to D+H maintenance maximal 3 years after date of delivery, when notes. - Page 6 Connection Junction box CDC-TW 0502-1 EM 47 K * BSY+.b (GN) BSY+.a (YE) Mot. b (BN) Mot. a (WH) ACB.b (GY) ACB.a/HS (OG) **** A E/X N– Gruppe 24 V DC High-Speed Mot. a Mot. b (WH) (BN) 24 V DC SHEV- fast running High-Speed Normal mode...
- Page 7 Connection Junction box EM 47 K * FRA 11 BSY+ / VLD 51-BSY+ CDC-TW 0502-1 BSY+.b (GN) BSY+.b BSY+.a BSY+.a (YE) Mot. b (BN) Mot. b Mot. a (WH) Mot. a ACB.b (GY) ACB.a/HS (OG) **** A E/X N– Group (WH) white (BN)
- Page 8 GN (BSY+.b) WH (Mot. a) (WH) white (BN) brown (OG) orange (YE) yellow (GN) green (PK) pink (GY) grey Dyer Environmental Controls Ltd Unit 10 Lawnhurst Trading Estate, Cheadle Heath, Stockport SK3 0SD +44 (0)161 491 4840 Tel: E-Mail: enquiry@dyerenvironmental.co.uk www.dyerenvironmental.co.uk...
