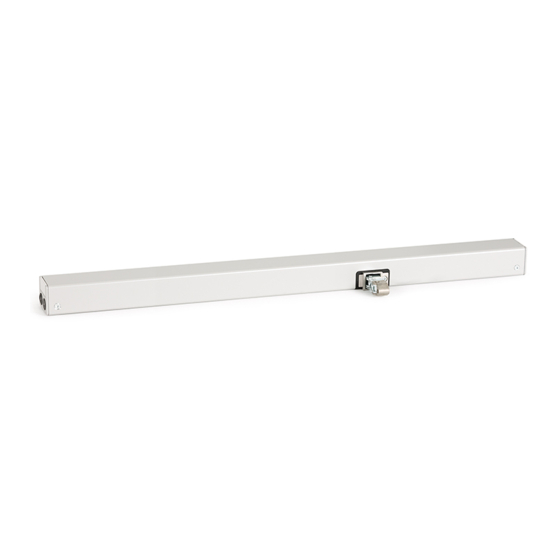

- Page 1 CDC-0252-1-TMS+ instructions Please order bracket sets separately...
- Page 2 WARNING Intended use Read all safety warnings, instructions, illustrations - Chain drive for electric opening and closing of and specifications provided with this product. windows and flaps in the facade and roof area Failure to follow all instructions listed below may - Operating voltage 24 V DC result in electric shock, fire and/or serious injury.
- Page 3 Technical Data Type CDC-0252-0350-1-TMS+ -R CDC-0252-0600-1-TMS+ -R CDC-0252-0800-1-TMS+ -R 24 V DC / ± 15 % Power supply 250 N** Nominal force Nominal current 0,6 A 0,8 A 1,0 A Nominal stroke length* 350 mm ± 2 % 600 mm ± 2 % 800mm ±...
- Page 4 Stroke limiting with magnets When using two CDC-0252-1-TMS+ on one window , both drives must be electrically connected in order to set the stroke , although only one drive needs to be switched to the stroke learning mode with the magnet . Close drive.
- Page 5 Maintenance and cleaning Guarantee Maintenance work is only allowed when the device is in You will get 2 years guarantee for all D+H products a de-energized condition! Inspection and maintenance from date of verified handing over of the system up to has to be carried out according to D+H maintenance maximal 3 years after date of delivery, when notes.
- Page 6 Connection Pin Assignment 6x 0,5 mm² Ø 7,1 ± 0,5 mm WH (Mot. a) (WH) white BN (Mot. b) (BN) brown OG (HS) (OG) orange (YE) yellow GY (n.c.) (GN) green YE (TMS+/BRV) (GY) grey GN (n.c.) EM 47 K * Junction box CDC-0252-1-TMS+ n.c.
- Page 7 Connection 2 drives star-shaped EM 47 K * Junction box CDC-0252-1-TMS+ n.c. (GN) TMS+ (YE) n.c. (GY) Mot. b (BN) Mot. a (WH) (OG) CDC-0252-1-TMS+ n.c. (GN) TMS+ (YE) n.c. (GY) Mot. b (BN) Mot. a (WH) (OG) **** N– A E/X Group CDC-0252-1-TMS+...
- Page 8 242 mm 163 mm CDC-0252-0350-1-TMS+ 530 mm 367 mm 163 mm CDC-0252-0600-1-TMS+ 635 mm 472 mm 163 mm CDC-0252-0800-1-TMS+ Dyer Environmental Controls Ltd Unit 10 Lawnhurst Trading Estate, Cheadle Heath, Stockport SK3 0SD +44 (0)161 491 4840 Tel: E-Mail: enquiry@dyerenvironmental.co.uk www.dyerenvironmental.co.uk...
