PRODUCT NO.
FAS155K1A1
WIRING DIAGRAM - # 309343701
OWNER'S GUIDE - # 309000825
ELECTROLUX HOME PRODUCTS NORTH AMERICA
P.O.BOX 212378, AUGUSTA, GA 30917
FACTORY PARTS CATALOG
BASE MODEL NO
BTU-COOLING
FAS155K1A
15000BTU
Publication No.
5995348553
-EN/SERVICE /DJH

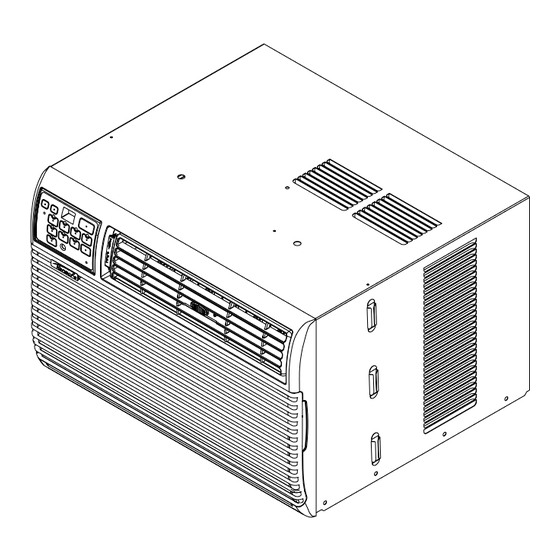

ROOM AIR CONDITIONER
ROOM AIR CONDITIONER
010117
345
©2001 White Consolidated Industries, Inc.
All rights reserved
Model No.
FAS155K1A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Frigidaire FAS155K1A1
Summary of Contents for Frigidaire FAS155K1A1
-
Page 1: Room Air Conditioner
PRODUCT NO. BASE MODEL NO FAS155K1A1 FAS155K1A WIRING DIAGRAM - # 309343701 OWNER’S GUIDE - # 309000825 ELECTROLUX HOME PRODUCTS NORTH AMERICA P.O.BOX 212378, AUGUSTA, GA 30917 FACTORY PARTS CATALOG ROOM AIR CONDITIONER BTU-COOLING 15000BTU ROOM AIR CONDITIONER FAS155K1A Publication No. - Page 2 Publication No. FAS155K1A 5995348553 CABINET FRONT AND WRAPPER 06/01...
- Page 3 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FAS155K1A CABINET FRONT AND WRAPPER PART NO DESCRIPTION 309632704 Cabinet,sleeve ,top louvers 309632804 Grille,rear ,with rail 309631104 Link,vertical louver 309630804 Louver,horizontal 309633305 Louver Assy,horizontal 309631004 Louver 309631404 Filter-air,molded plastic 309633205 Front-cabinet,complete assy 309341002 Overlay,Frig Gallery...
- Page 4 Publication No. FAS155K1A 5995348553 CONTROLS 06/01...
- Page 5 POS. NO 13 # 72 # # = Fast-moving Parts * = Non-Illustrated Parts FAS155K1A CONTROLS PART NO DESCRIPTION 309630403 Control Box 309623601 Bulkhead,control system 5303318963 Capacitor,370 V 5303015427 Screw 5303303077 Strap-capacitor 309343111 Cord-electric power,type A ,14 AWG 309342401 Enclosure,electrical control 309350401 PC Board,power,Sagem 309350403...
- Page 6 Publication No. FAS155K1A 5995348553 AIR HANDLING PARTS 06/01...
- Page 7 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FAS155K1A AIR HANDLING PARTS PART NO DESCRIPTION 5303311048 Fan Blade,with clamp 3202975 Screw,10-16 x 0.72 ,square drive 309623201 Shroud-condenser,one piece 5303015311 Seal,fan housing ,lower 5303015427 Screw,truss head ,8-18AB x 0.47 309630605 Motor-fan,Heshan 309623401...
- Page 8 Publication No. FAS155K1A 5995348553 COMPRESSOR PARTS 06/01...
- Page 9 POS. NO 11 # 12 # 16 # 17 # # = Fast-moving Parts * = Non-Illustrated Parts FAS155K1A COMPRESSOR PARTS PART NO DESCRIPTION 5303925103 Compressor,w/overload 5303283877 Grommet,compressor mtg ,(3) 5308006948 Nut,compressor mtg ,(3) 3206230 Cover-terminal 5303272298 Gasket-cover,terminal 5303016697 Overload Protector 5303211017 Nut-terminal cover 309634103...
- Page 10 Publication No. FAS155K1A 5995348553 WINDOW MOUNTING PARTS 06/01...
- Page 11 POS. NO # = Fast-moving Parts * = Non-Illustrated Parts FAS155K1A WINDOW MOUNTING PARTS PART NO DESCRIPTION 5304407729 Seal-window frame,stuffer 5304414928 Frame,LH 5304409250 Seal-top rail 5304414933 Retainer,accordian 5304414105 Bracket-support,RH 5304414106 Bracket-support,LH 5304414929 Frame,RH 5304414930 Closure,accordian type ,window mount 5304414116 Rail,top 5303212504 Seal-sleeve/chassis,bottom 309313204...
- Page 12 Publication No. FAS155K1A 5995348553 WIRING DIAGRAM 06/01...
