Summary of Contents for Duratuf KIWI SHEDS MK3

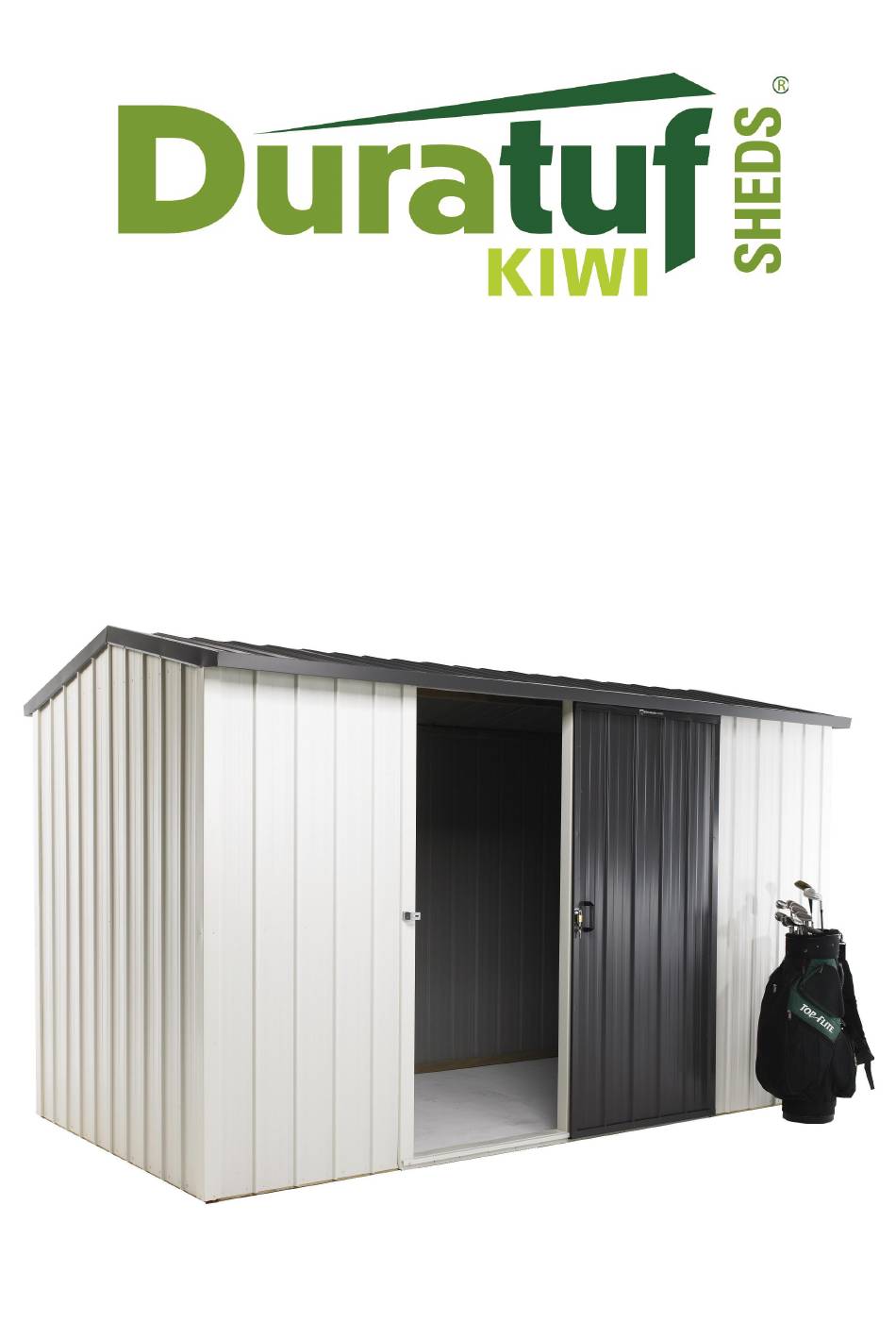

- Page 1 Quality – Built In ASSEMBLY INSTRUCTIONS BASE SIZE 3380mm x 1715mm...
- Page 2 ASSEMBLY INSTRUCTIONS • Tools Required: Drill • Drill Bit 3.5mm • Drill Bit 6mm (for clear roof panel only) • Hex Drive 5/16 • Riveter (free Duratuf riveter supplied in kit) • Hammer • Nail Punch • Tape Measure • Ladder or Saw stool •...
- Page 3 KIWI MK3 PARTS LIST Gable End Wall Sheets 2.080m 1.890m Wall Sheets Door - Standard Security Instruction Booklet 0.200m Jack Studs - 45 x 45mm Hardware Pack Touch-up Paint & Brush Duratuf Riveter 2.000m Roof Sheets Flooring Nails 50mm Flooring Nails 75mm Fixed Window Frame Glaze Beads...
- Page 4 MK3 TIMBER FRAME 3380 1622 1622 1900 (or 1870 for Raised Base Plate only) BACK WALL 3380 1622 1900 (or 1870 for Raised Base Plate only) FRONT WALL...
- Page 5 MK3 TIMBER FRAME Note: For sheds with the Raised Floor Modification option the studs will be 1.780m long to allow the Wall Sheets to protrude 20mm below the Bottom Plate. Refer to Raised Floor Modification section (Page 15). Note: If fitting a window in the Back Wall, there will be no centre stud on that side. Instead nail in a full length Nog (3.290) using Window Studs (.883) to get correct height.
- Page 6 MK3 WALL CLADDING TO AVIOD CORROSION: • Where at all possible try not to trap metal filings between two sheets. Remove all metal filings before riveting. • Carbon in pencils reacts with the Zinc/Aluminium coating on steel. Use ink to mark steel. TERMS EXPLANATION •...
- Page 7 MK3 WALL CLADDING Step 1: Front Wall: Start at the left hand side. Position the Wall Sheet with the LIP on the left hand side. Ensuring the LIP is flush with side of the Stud and the top of the Top Plate, tack in place. Repeat with Wall Sheets on the right hand side of doorway.
- Page 8 MK3 LOUVRE WINDOW (Optional) 588mm Step 1: Lay out the two window studs (883mm) and Nog Step 2: On the inside of the shed, position studs and (634mm) on a flat surface. Position Nog and nail Nog centrally on window opening. Make sure the in place using 2x 75mm nails at each end.
- Page 9 MK3 FIXED WINDOW (Optional) Step 1: Lay out the two window studs (883mm) and Nog (590mm) on a flat surface. Position Nog and nail in place using two 75mm nails at each end. 570mm Follow Steps 2 - 5 on page 8. Step 6: From the outside of the shed, place glass in Win- dow Frame.
- Page 10 MK3 DOOR Step 1: Position the Door Track (107) on the front wall with the top of the track 7mm below the top of the timber frame. The left-hand end of the door track should be 20mm in from left side of the left-hand door jamb flashing. Pre-drill a hole in the centre of the track and screw in place using one 45mm door track screw.
- Page 11 MK3 ROOF Note: Condensation can form on the under side of shed roof. If building paper is required, fit now. Building paper will need to be sup- ported by netting or roofing twine. Step 1: Check that the diagonal measurements of the shed are the same. If building on unlevel ground it may be necessary to tempo- rarily brace the shed with pieces of timber from the packaging.
- Page 12 MK3 CLEAR ROOF PANEL (Optional) Step 1: Leave a gap where the Clear Panel is to be fitted. Position the next Roof Sheet. Ensure it overlaps correctly, then rivet togeth- er, one rivet in the centre and one approximately 600 mm down from the centre on both sides. Fit remaining Roof Sheets, overlapping and riveting as you go.
- Page 13 MK3 BARGE & SPOUTING Note: MK2 shown Note: MK2 shown Step 1: Position Barge Flashing (102) on gable ends. Step 2: Centralise Barge Flashing on gable end and Position a Spouting (A103) and rivet to the rivet in place, one rivet into every second Rib. Barge Flashing at each end.
- Page 14 MK3 FLOOR (Optional) Step 3: Re-position Floor Board. Lay out remaining Floor Step 4: Nail in each Floor Board, two 50mm nails in each Boards checking around Studs as you go. The end and two into Joists. Measure and cut Floor last Floor Board may have to be cut to size.
- Page 15 SECURITY DOOR (Optional) Step 3 On the left hand Door Jamb, position latch so that Step 2: Once door is hung, position the Locking Stays so the hook on the door handle will be secure and go they slide into the Locking Brackets easily. Screw in and out easily.
-
Page 16: Maintenance
DURATUF PREMIUM SHED WARRANTY GUARANTEE TO CUSTOMER Congratulations on purchasing a Duratuf Storage Shed. With proper care and attention, this product will last many years. For your benefit PLEASE READ THE FOLLOWING INFORMATION CAREFULLY. WARRANTY ON METAL CLADDING Riverlea Group Ltd guarantee that the metal roofing and wall cladding on Kiwi and Fortress Garden Sheds may be used in moderate and inland corrosion zones or areas where the first year mild steel corrosion rate is less than 200g/m2, and that in these conditions, they will not perforate due to corrosion within 30 years of date of manufacture.
