Atlantis miGLIDE MG2-SMALL Fitting Instructions Manual

Sliding screen
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Components: SFK-MG2-S
2 x
MG Idle roller
1 x
MG Handle Set
2 x
Hanger Assembly
1 x
MG 2W End Connector angle
1 x
MG 3W End Connector bracket
1x
Bag 1 – Allen Keys (3,4)
1x
Bag11 – Packers
1x
Blue Masking Tape
1x
BAG-GB-G – sliding door guide blocks
1 x
Clear Silicon
BAG-MG-SCREWS – 8x6#x10CSK screws
1 x
& 2x6#x40CSK screws, 2.5mm drill bit
2 x
Clear flexible wedge
1 x
Screen Fitting Instructions
Checked by: ___________________
Date: _________________________
1 x
Glass Door MGB
1 x
Plain Fixed Panel 20 MGF
1 x
Glass Return Panel 20 B
1 x
Top Track – MG-MTB
1x
Vertical Seal – SEAL-BULB
TUBE-MG-DS – 3x Top Track coloured
1x
detailed strips
Any revisions must first be approved by the product designer. Version: 201909

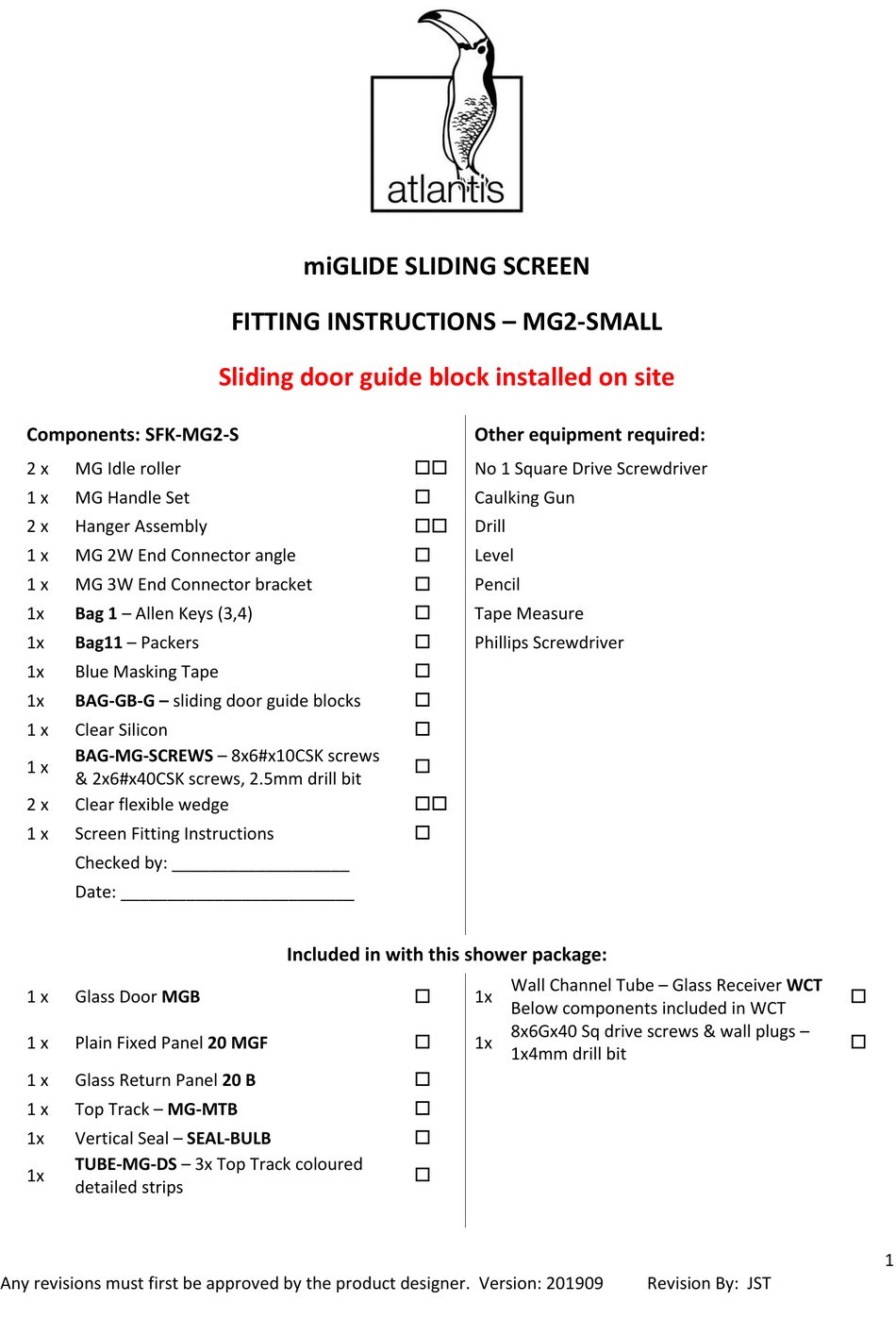

miGLIDE SLIDING SCREEN
FITTING INSTRUCTIONS – MG2-SMALL
Sliding door guide block installed on site
Included in with this shower package:
Other equipment required:

No 1 Square Drive Screwdriver
Caulking Gun

Drill
Level
Pencil
Tape Measure
Phillips Screwdriver

Wall Channel Tube – Glass Receiver WCT
1x
Below components included in WCT
8x6Gx40 Sq drive screws & wall plugs –
1x
1x4mm drill bit
Revision By: JST
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the miGLIDE MG2-SMALL and is the answer not in the manual?

Questions and answers

Related Manuals for Atlantis miGLIDE MG2-SMALL

Summary of Contents for Atlantis miGLIDE MG2-SMALL

  • Page 1 miGLIDE SLIDING SCREEN FITTING INSTRUCTIONS – MG2-SMALL Sliding door guide block installed on site Components: SFK-MG2-S Other equipment required:  MG Idle roller No 1 Square Drive Screwdriver  MG Handle Set Caulking Gun  Hanger Assembly Drill  MG 2W End Connector angle Level ...
  • Page 2 - It is the installer’s responsibility to thoroughly check the glass panels prior to installation. - Atlantis will take no responsibility for any glass panel that has been installed with a noticeable defect. NOTE: a noticeable defect must be visible to the naked eye, in normal daylight conditions, standing at a distance of two meters.
  • Page 3 1. PROTECT SHOWER FLOOR 5. Apply a silicon bead to the full length of This shower has been supplied with a channels. Silicon used must be compatible with polystyrene protective cover. Ensure the anodised aluminium, as well as acrylic or the shower base remains protected during glass waterproofing being used.

  • Page 4: Hanger Assembly

    9. CRITICAL SEAL 12. GLASS DOOR / TOP TRACK ASSEMBLY Remove dust and dirt first. Seal the connection Before proceeding check the length of the between the glass receiver channel and the base supplied top track is correct. The top track glazing channel with clear silicon prior to the should fit between the wall and 20 B glass installation of panel 20 B.
  • Page 5 14. When the idle rollers are being fitted to hangers 17. END CONNECTOR ANGLE (MG-2W) apply a 5mm drop of clear silicone inside the Fix the MG-2W end connector angle into place. thread. This will ensure that the hanger does Screws should be left not move out of adjustment.
  • Page 6 19. DOOR ALIGNMENT 22. SLIDING DOOR GUIDE BLOCK Ensure the guide block isn’t too tight (must Adjustment holes have been predrilled in the top track. Door alignment can be achieved by allow the glass to slide through it). Slide the using 4mm hex key through the top track into door as far back in an open position as possible.
  • Page 7 ELLURE WALL FINISHING TRIM When this system has been supplied with Atlantis Ellure Tile Look Walls an additional 6mm acrylic strip has been supplied. The wall channel should be positioned to the outside edge of the finishing trim.
  • Page 8 ACRYLIC LINER Z FLASHING When a 2mm Acrylic Wall liner has been supplied, the aluminium Z Flashing will need to be trimmed. Using a hacksaw, trim the inside angle of the Z flashing (as shown). The Z flashing must sit flush with the wall channel and top track.
  • Page 9 SLIDING SCREEN – GUIDE BLOCK CODE - ABS-LQ-GB-LONG Linea Quattro – Installed on base prior to tiling Black Pearl – Installed onto acrylic base when installing screens CODE - ABS-LQ-GB-SHORT Linea Quattro – Installed after tiling or on an Architectural Finish when installing screens Black Pearl –...
