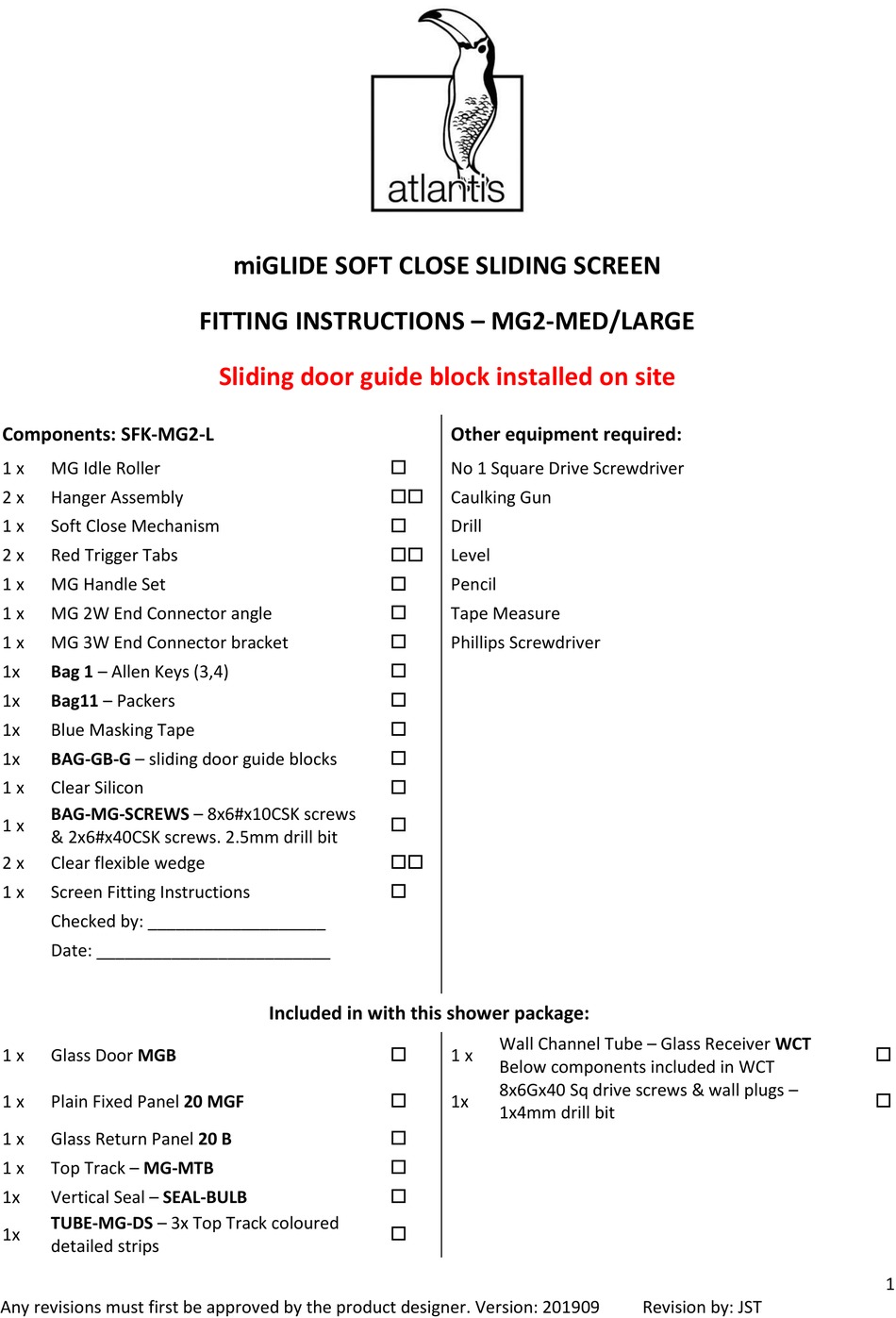

Components: SFK-MG2-L

1 x

MG Idle Roller

2 x

Hanger Assembly

1 x

Soft Close Mechanism

2 x

Red Trigger Tabs

1 x

MG Handle Set

1 x

MG 2W End Connector angle

1 x

MG 3W End Connector bracket

Bag 1 – Allen Keys (3,4)

Bag11 – Packers

Blue Masking Tape

BAG-GB-G – sliding door guide blocks

1 x

Clear Silicon

BAG-MG-SCREWS – 8x6#x10CSK screws

1 x

& 2x6#x40CSK screws. 2.5mm drill bit

2 x

Clear flexible wedge

1 x

Screen Fitting Instructions

Checked by: ___________________

Date: _________________________

1 x

Glass Door MGB

1 x

Plain Fixed Panel 20 MGF

1 x

Glass Return Panel 20 B

1 x

Top Track – MG-MTB

Vertical Seal – SEAL-BULB

TUBE-MG-DS – 3x Top Track coloured

detailed strips

Any revisions must first be approved by the product designer. Version: 201909

miGLIDE SOFT CLOSE SLIDING SCREEN

FITTING INSTRUCTIONS – MG2-MED/LARGE

Sliding door guide block installed on site

Included in with this shower package:

Other equipment required:



No 1 Square Drive Screwdriver



Caulking Gun



Drill



Level



Pencil



Tape Measure



Phillips Screwdriver







Wall Channel Tube – Glass Receiver WCT



1 x

Below components included in WCT

8x6Gx40 Sq drive screws & wall plugs –



1x4mm drill bit



Revision by: JST



Need help?

Do you have a question about the miGLIDE MG2-MED and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlantis miGLIDE MG2-MED

Page 1 miGLIDE SOFT CLOSE SLIDING SCREEN FITTING INSTRUCTIONS – MG2-MED/LARGE Sliding door guide block installed on site Components: SFK-MG2-L Other equipment required:  MG Idle Roller No 1 Square Drive Screwdriver  Hanger Assembly Caulking Gun  Soft Close Mechanism Drill ...
Page 2 - It is the installer’s responsibility to thoroughly check the glass panels prior to installation. - Atlantis will take no responsibility for any glass panel that has been installed with a noticeable defect. NOTE: a noticeable defect must be visible to the naked eye, in normal daylight conditions, standing at a distance of two meters.
Page 3 1. PROTECT SHOWER FLOOR 5. Apply a silicon bead to the full length of This shower has been supplied with a channels. Silicon used must be compatible with polystyrene protective cover. Ensure the anodised aluminium, as well as acrylic or the shower base remains protected during glass waterproofing being used.
Page 4 9. CRITICAL SEAL The next processes are easily achieved when the Remove dust and dirt first. Seal the connection door is laying flat on clean saw horses. between the glass receiver channel and the base Alternatively use clean 50mm timber blocks on glazing channel with clear silicon prior to the the floor.
Page 5 14. TOP TRACK 16. END CONNECTOR ANGLE (MG-2W) The red trigger tabs are Fix the MG-2W end required to operatare connector angle the soft close system. into place. Screws Slide the trigger tab should be left into the top track. The slightly loose.
Page 6: Door Alignment
18. DOOR ALIGNMENT 21. SLIDING DOOR GUIDE BLOCK Adjustment holes have been predrilled in the Ensure the guide block isn’t too tight (must top track. Door alignment can be achieved by allow the glass to slide through it). Slide the using 4mm hex key through the top track into door as far back in an open position as possible.
Page 7 ELLURE WALL FINISHING TRIM When this system has been supplied with Atlantis Ellure Tile Look Walls an additional 6mm acrylic strip has been supplied. The wall channel should be positioned to the outside edge of the finishing trim.
Page 8 ACRYLIC LINER Z FLASHING When a 2mm Acrylic Wall liner has been supplied, the aluminium Z Flashing will need to be trimmed. Using a hacksaw, trim the inside angle of the Z flashing (as shown). The Z flashing must sit flush with the wall channel and top track.
Page 9 SLIDING SCREEN – GUIDE BLOCK CODE - ABS-LQ-GB-LONG Linea Quattro – Installed on base prior to tiling Black Pearl – Installed onto acrylic base when installing screens CODE - ABS-LQ-GB-SHORT Linea Quattro – Installed after tiling or on an Architectural Finish when installing screens CODE - ABS-EI-GB-WHITE / BLACK Ebony &...
